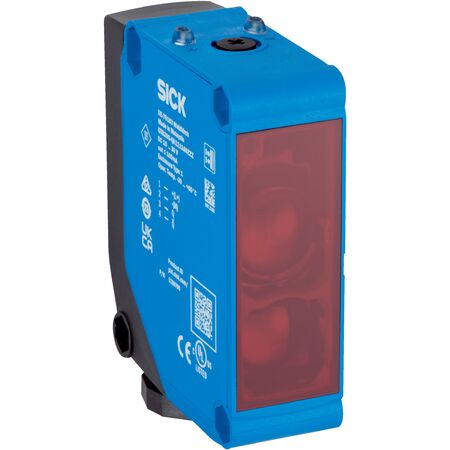

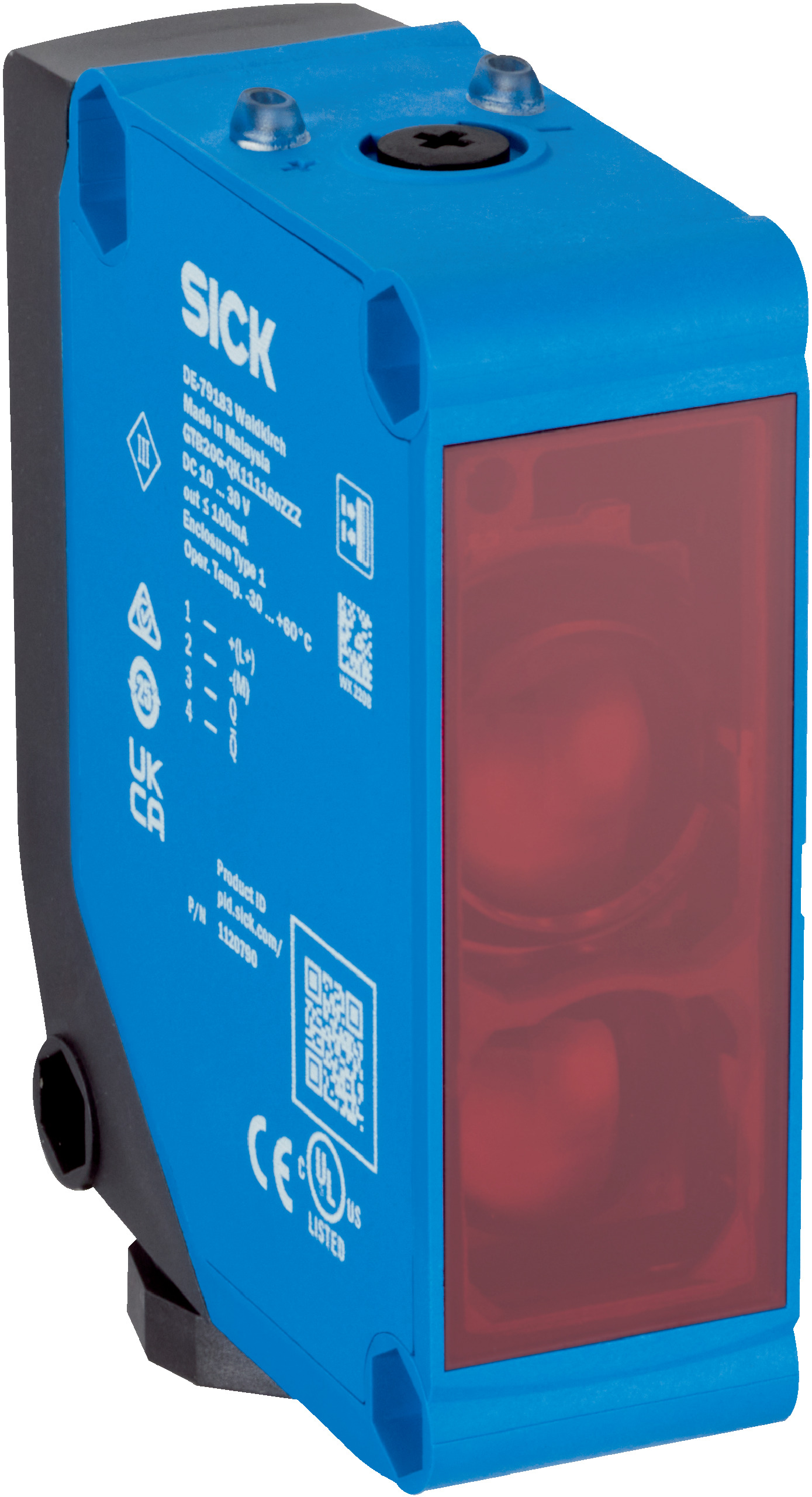

Photoelectric Proximity Sensor | 0.02m to 2m Sensing Range | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 0.02m to 2m and a high switching frequency of 1000 Hz. With a robust IP67 rated housing, it operates efficiently in harsh environments, making it ideal for object detection and manufacturing process control. Its visible red LED light source ensures reliable performance, while the energy-efficient design contributes to reduced power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Energetic photoelectric proximity sensor
- Sensing range: 0.02 m to 2 m for objects with 90% remission factor
- Light source: Visible red LED, wavelength 630 nm
- Light spot size: Ø 28 mm at 500 mm distance
- LED risk group: Free group according to EN 62471
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- Housing material: Plastic ABS, front screen PMMA
- Connection: Terminal connection, 4 terminals
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 74.5mm x 52.5mm x 23.5mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 0.02 m to 2 m for objects with 90% remission factor
- Visible red light LED with wavelength 630 nm and rectangular light spot
- LED indicators for power and object presence status
- Potentiometer for 270° sensitivity adjustment
- High switching frequency of 1000 Hz and response time ≤ 500 µs
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- Robust plastic ABS housing with IP67 rating for harsh environments
- Wide ambient operating temperature range from -30 °C to +60 °C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 1000 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours reduces power consumption and waste
- Durable IP67 rated housing minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTE20G-QK111170ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
