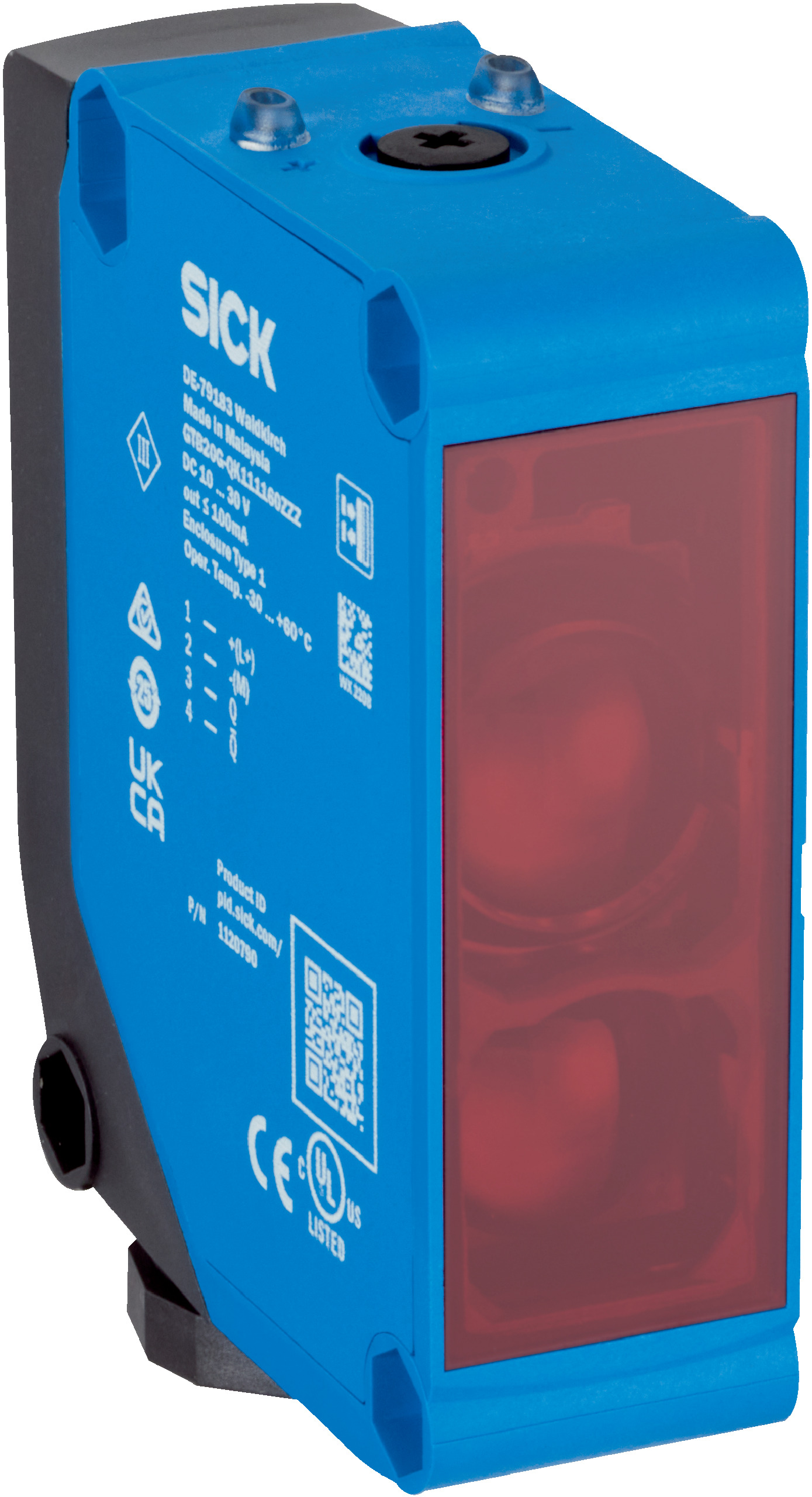

Photoelectric Proximity Sensor | 0.02m to 2m Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 0.02m to 2m and a visible red LED light source at 630 nm. With an IP67 rating and robust shock and vibration resistance, it's perfect for safety monitoring and material handling applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor, energetic
- Sensing range: 0.02 m to 2 m for objects with 90% remission factor
- Light source: LED, visible red light, 630 nm wavelength
- Light spot size: Ø 28 mm at 500 mm distance
- Maximum beam dispersion: < +/- 1.5° at 23 °C
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (230 V AC/DC), ≤ 45 mA (24 V AC/DC)
- Output: 2 relay SPDT electrically isolated, light/dark switching
- Output current max: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- EMC standards: EN 60947-5-2, EN 61000-6-3
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 0.02 m to 2 m for objects with 90% remission factor
- Visible red LED light source with 630 nm wavelength
- Rectangular light spot with Ø 28 mm at 500 mm distance
- LED indicators for power and object presence status
- Potentiometer for 270° sensitivity adjustment
- Relay outputs with SPDT electrically isolated contacts
- High protection class II and IP67 rated enclosure
- Wide ambient operating temperature range from -30 °C to +60 °C
- Shock resistance of 30 g and vibration resistance from 10 Hz to 1000 Hz
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

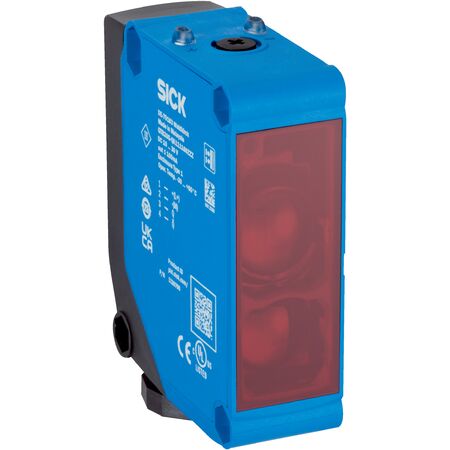

The SICK GTE20G-QLRC1170ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
