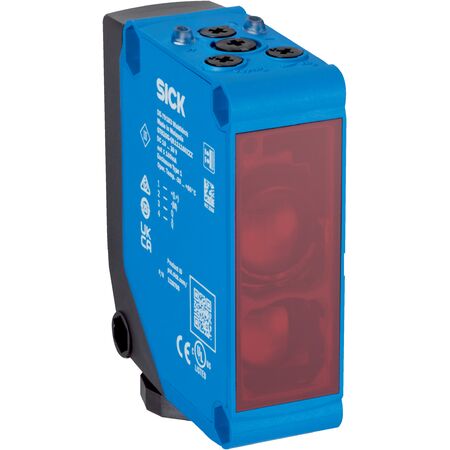

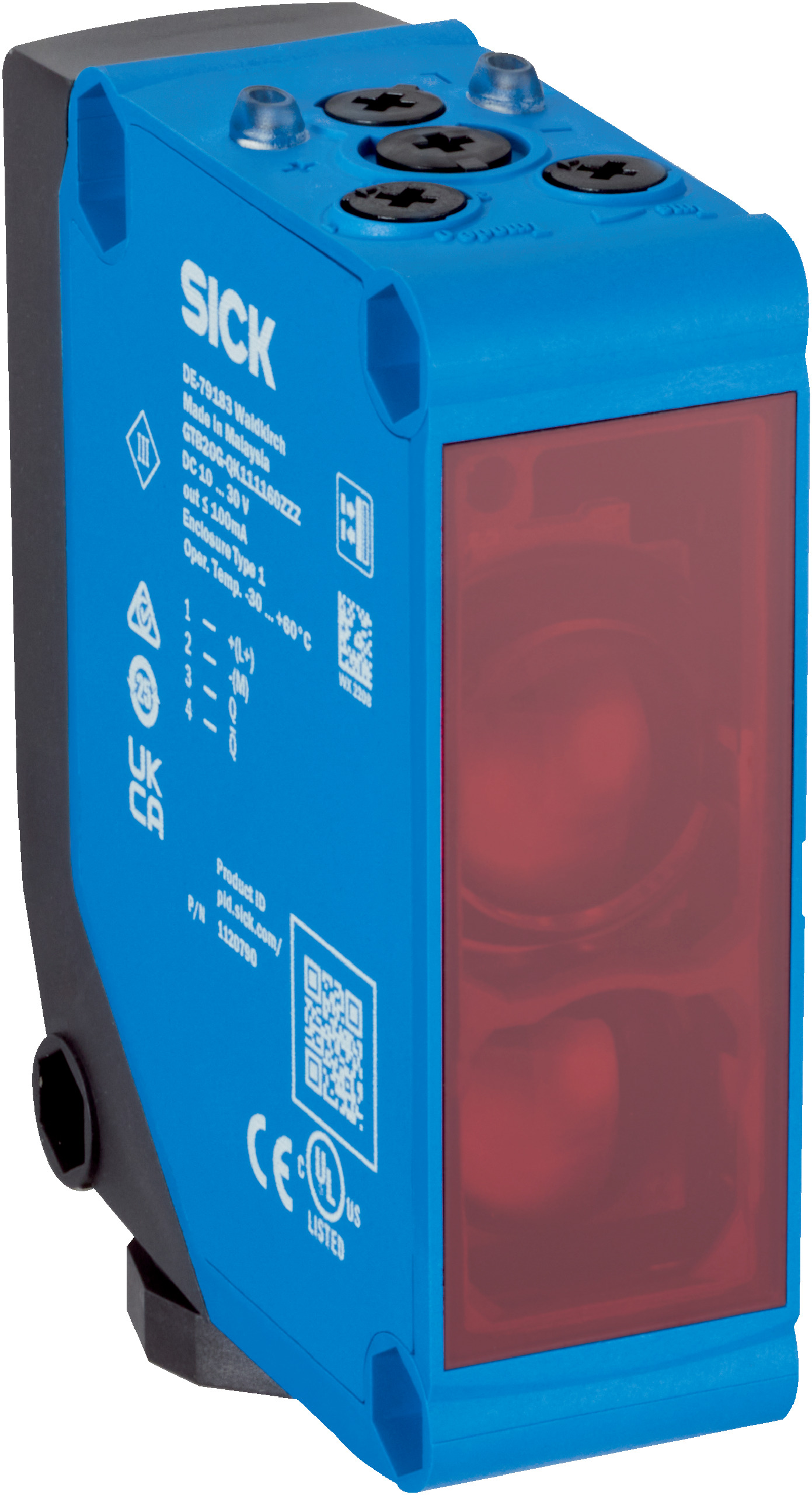

Photoelectric Proximity Sensor | 0.02m to 2m Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 0.02m to 2m and a visible red LED light source at 630 nm. With an IP67 enclosure rating and adjustable sensitivity, it’s perfect for object detection and manufacturing process control, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 0.02 m to 2 m for objects with 90% remission factor
- Light source: LED, visible red light, wavelength 630 nm
- Light spot size: Ø 28 mm at 500 mm distance
- LED indicators: Green (power), Yellow (object presence)
- Sensitivity adjustment: Potentiometer, 270°
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (230 V AC/DC), ≤ 45 mA (24 V AC/DC)
- Digital outputs: 2 complementary relay outputs, SPDT, electrically isolated
- Output current max: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Time functions: Switch-on delay, off delay, ON and OFF delay (adjustable 0-10,000 ms)
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- EMC standards: EN 60947-5-2, EN 61000-6-3
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.156 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 0.02 m to 2 m for objects with 90% remission factor
- Visible red LED light source with wavelength 630 nm
- Rectangular light spot with diameter 28 mm at 500 mm distance
- LED green and yellow indicators for power and object presence status
- Adjustable sensitivity via 270° potentiometer
- Two complementary relay outputs with light/dark switching
- Response time ≤ 15 ms and switching frequency 10 Hz
- Protection class II and enclosure rating IP67
- Operating temperature range from -30 °C to +60 °C
- Shock resistance 30 g and vibration resistance 10 Hz to 1000 Hz
- Electromagnetic compatibility compliant with EN 60947-5-2 and EN 61000-6-3
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTE20G-QLRC117GZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
