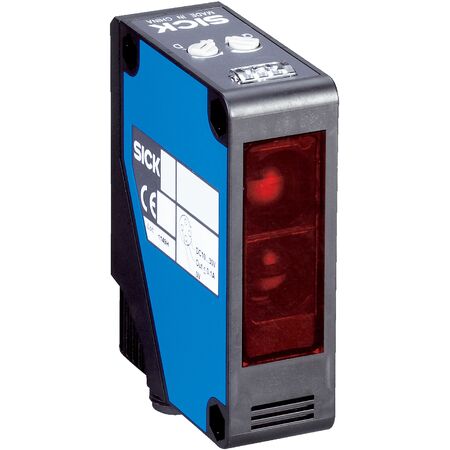

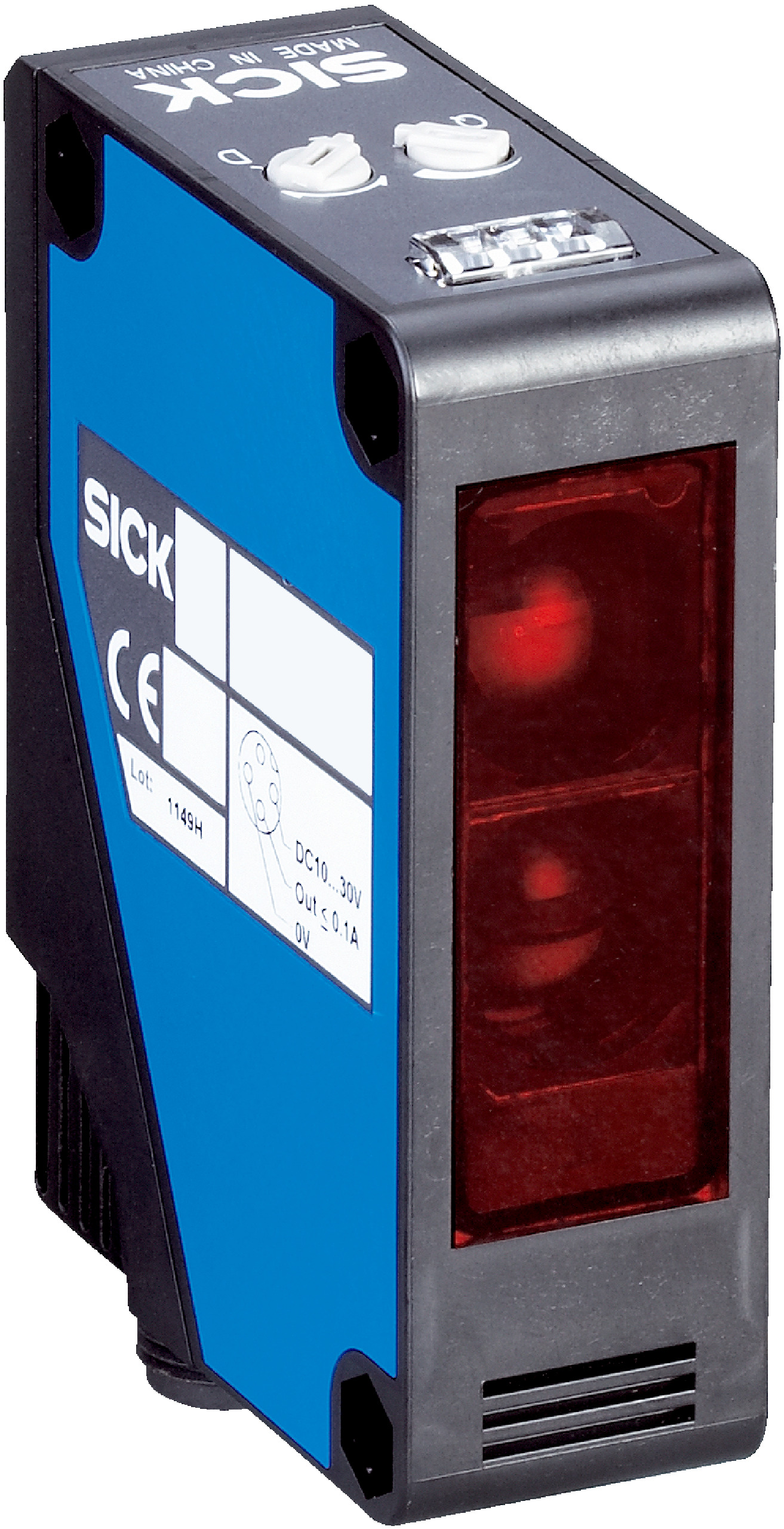

Photoelectric Proximity Sensor | 10mm to 1500mm Sensing Range | IP66 & IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 10mm to 1500mm and a fast response time of ≤ 0.5 ms. With a robust IP66 and IP67 rated housing, it ensures reliable performance in harsh environments, making it ideal for safety monitoring and object detection in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 10 mm to 1500 mm
- Light source: LED with visible red light
- Light spot size at 1500 mm: Ø 45 mm
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP with max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Housing material: Plastic ABS; Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP66, IP67
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Includes mounting bracket BEF-W260
- Dimensions (H x L x W): 75mm x 63mm x 24mm
- Weight: 0.15 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red LED light source
- Adjustable sensing range via potentiometer
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Robust plastic ABS housing with IP66 and IP67 enclosure rating
- Selectable light/dark switching mode with PNP output
- Male connector M12, 4-pin for easy connection
- Wide operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTE280-2P2431P01 Photoelectric Proximity Sensor is available for immediate purchase. Ideal for industrial automation and safety monitoring applications.
