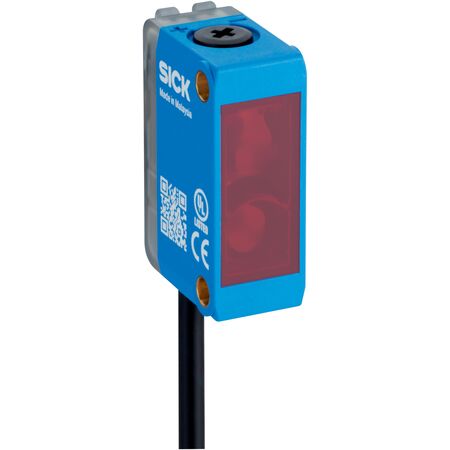

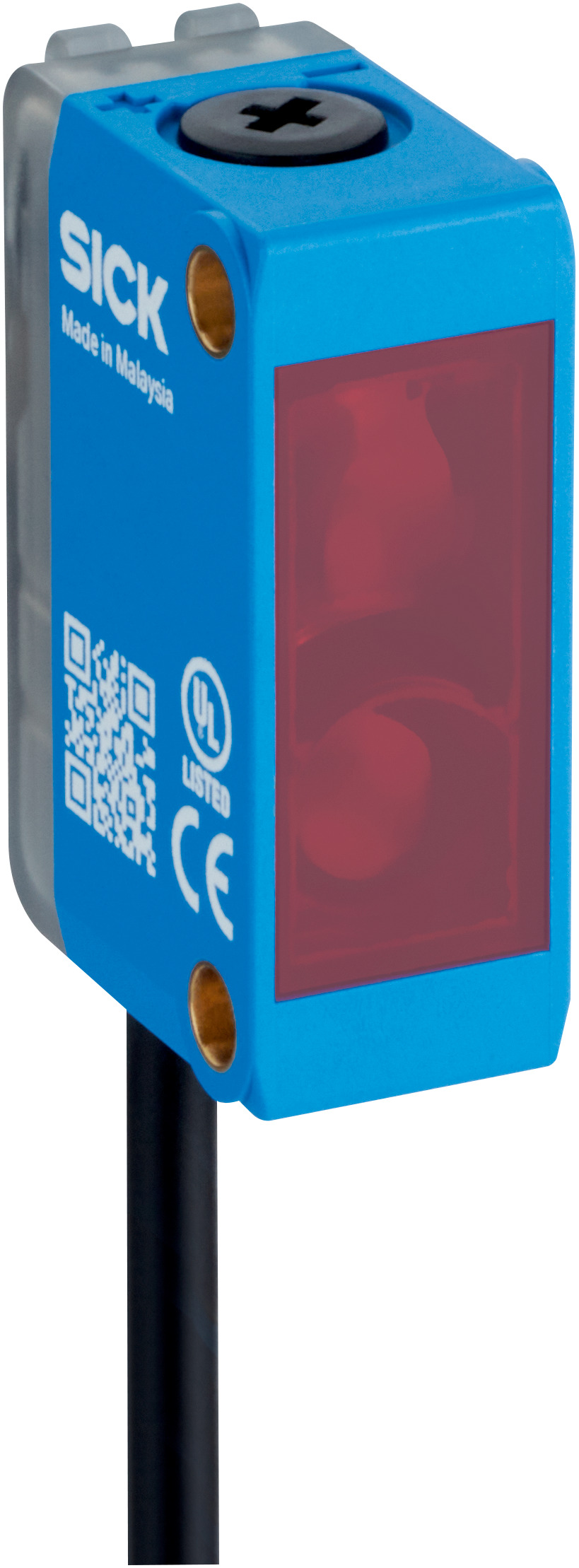

Photoelectric Proximity Sensor | 10 mm to 350 mm Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 10 mm to 350 mm, with optimal performance between 45 mm and 90 mm. Equipped with a PinPoint LED light source emitting visible red light at 640 nm, this sensor ensures reliable operation with a robust IP67 enclosure, making it ideal for manufacturing process control and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor, energetic
- Sensing range: 10 mm to 350 mm; recommended 45 mm to 90 mm
- Light source: PinPoint LED, visible red light, 640 nm wavelength
- Light spot size: Ø 3.4 mm at 150 mm distance
- LED indicators: Green for power, yellow for object detection
- Adjustment: Potentiometer for sensing range, 5 rotations; operating mode switch for light/dark switching inversion
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Output: 1 NPN open collector, light switching, max 100 mA
- Protection: Reverse polarity, overcurrent, short-circuit protected
- Response time: ≤ 1,250 µs; switching frequency: 500 Hz
- Housing: Plastic ABS; front screen: Plastic PMMA
- Connection: 3-wire cable, 2 m length, PVC insulated
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 10 mm to 350 mm, optimal between 45 mm and 90 mm
- PinPoint LED light source with visible red light at 640 nm wavelength
- Point-shaped light spot with diameter 3.4 mm at 150 mm distance
- LED indicators for power and object detection status
- Adjustable sensing range via potentiometer with 5 rotations
- Operating mode switch for light/dark switching inversion
- High protection class III with IP67 enclosure rating
- Robust plastic ABS housing with PMMA front screen
- Cable connection with 3-wire, 2 m length, PVC insulated
- High shock resistance (30 g) and vibration resistance (10 Hz to 55 Hz)
- Long average LED service life of 100,000 hours at 25°C
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Response time ≤ 1,250 µs and switching frequency up to 500 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct wiring and sensor configuration for optimal performance and safety.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
- Robust design reduces environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK GTE6SP-1GE1116EZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
