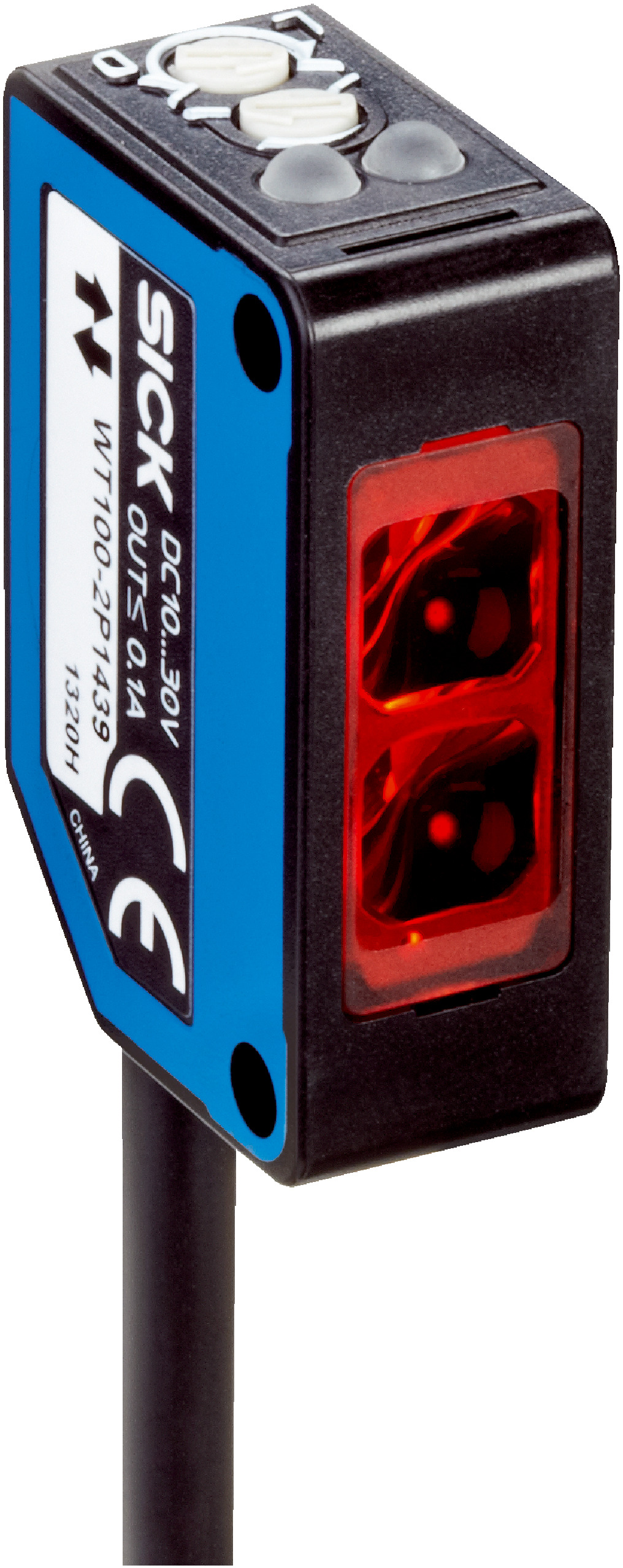

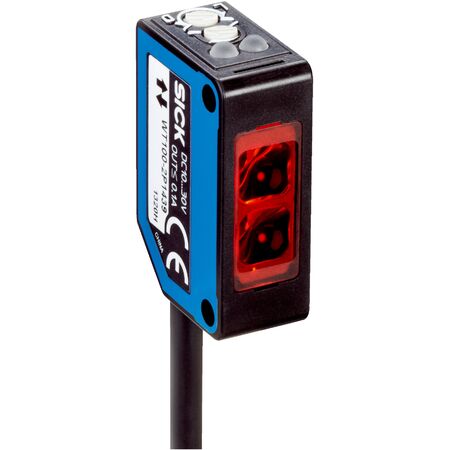

Photoelectric Proximity Sensor WT100-2N1439 | 1200 mm Sensing Range | NPN Output | IP67 Rated | by SICK
The Photoelectric Proximity Sensor WT100-2N1439 is designed for industrial automation, featuring a sensing range of up to 1200 mm and an NPN switching output. With a fast response time of ≤ 0.5 ms and an IP67 enclosure rating, this sensor is perfect for object detection and safety monitoring in harsh environments, ensuring reliable performance in manufacturing and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 0 mm to 1200 mm max, adjustable to 750 mm
- Light source: LED with 632 nm wavelength
- Light spot size: Ø 75 mm at 1000 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 3-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red LED light source
- Sensing range up to 1200 mm, adjustable via potentiometer
- NPN switching output with selectable light/dark switching mode
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Robust plastic housing with IP67 enclosure rating for harsh environments
- Includes mounting bracket BEF-W100-A
- Wide ambient operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WT100-2N1439 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
