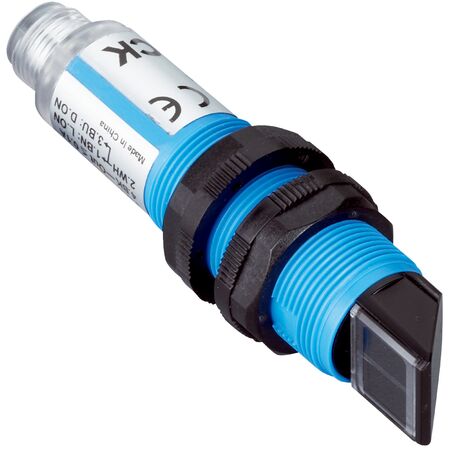

Photoelectric Proximity Sensor | 1 mm to 350 mm Sensing Range | IP67 Rated | PNP Output | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 1 mm to 350 mm and a robust IP67 enclosure. With a visible red light LED at 645 nm and a high switching frequency of 1,000 Hz, it ensures precise object detection and safety monitoring in manufacturing processes. Ideal for technicians and electricians, this sensor is built for reliability and efficiency in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 1 mm to 350 mm (max 450 mm)
- Light source: LED, visible red light, 645 nm wavelength
- Focus and angle of dispersion: Approx. 1.5°
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP with light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Dimensions (H x L x W): 18mm x 76.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 350 mm (max 450 mm)
- Radial optical axis with approx. 1.5° focus and angle of dispersion
- Potentiometer adjustment with 270° range for sensing distance
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- PNP switching output with light/dark switching mode
- Robust plastic housing (PBT/PC) with IP67 enclosure rating
- Operating temperature range from -25 °C to +55 °C
- Cable connection: 4-wire, 2 m PVC cable
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental damage and extends product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTE180-2P41149 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
