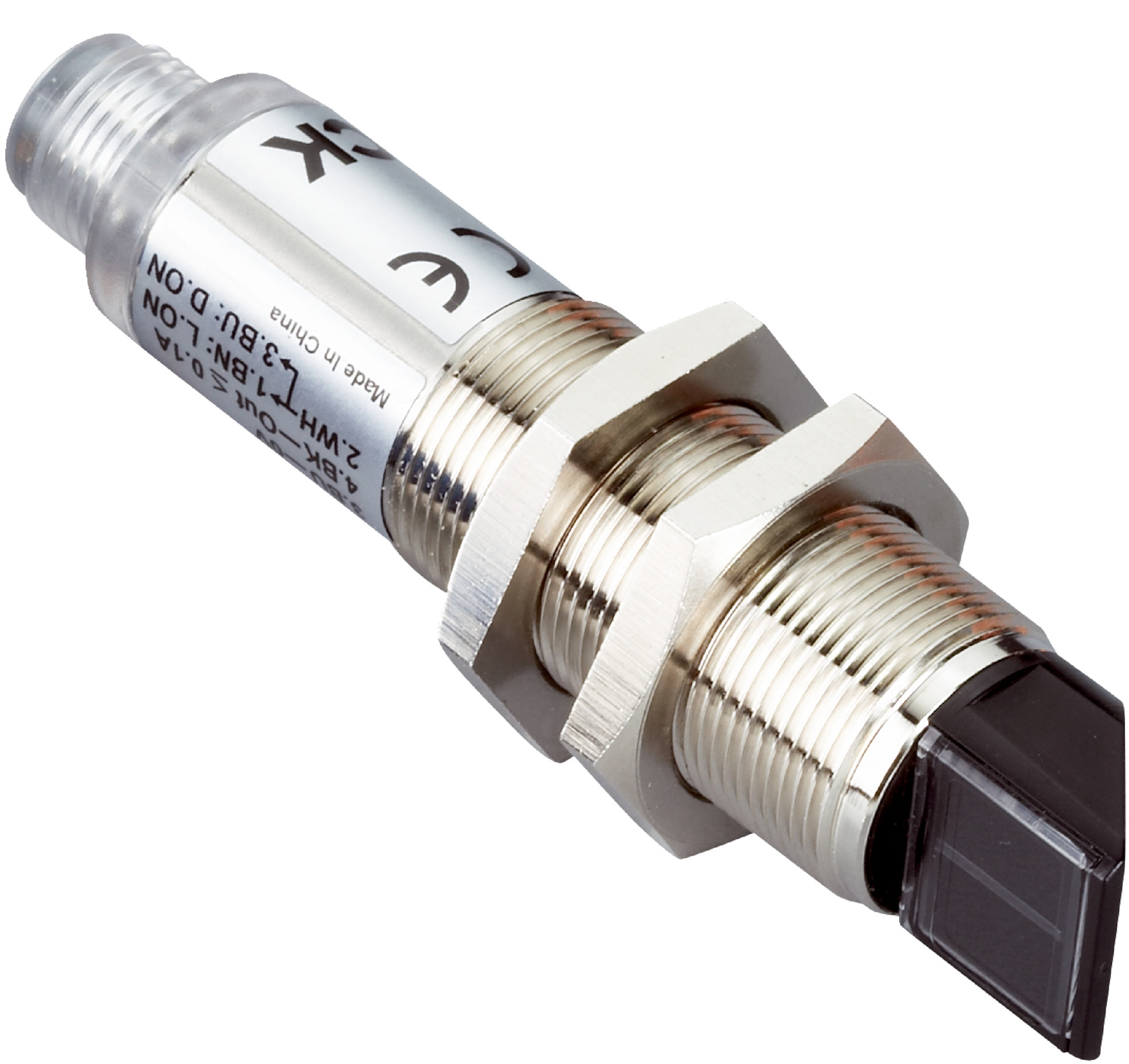

Photoelectric Proximity Sensor | 1 mm to 650 mm Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 1 mm to 650 mm and a high switching frequency of 1,000 Hz. With a robust IP67 rated enclosure and a visible red light LED, this sensor is perfect for manufacturing processes, safety monitoring, and robotics applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 1 mm to 650 mm (max 900 mm)
- Light source: LED, visible red light, 645 nm wavelength
- Focus and angle of dispersion: Approx. 1.2°
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Housing material: Metal, nickel-plated brass and PC
- Optics material: Plastic, PMMA
- Dimensions (H x L x W): 18mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED with wavelength of 645 nm
- Sensing range from 1 mm to 650 mm (max 900 mm)
- Radial optical axis with approx. 1.2° focus and angle of dispersion
- Potentiometer adjustment with 270° sensing range
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Robust metal housing with nickel-plated brass and plastic optics
- Male M12 4-pin connector for easy integration
- Operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Position sensing in manufacturing processes
- Safety and monitoring in conveyor systems
- Robotics and material handling
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

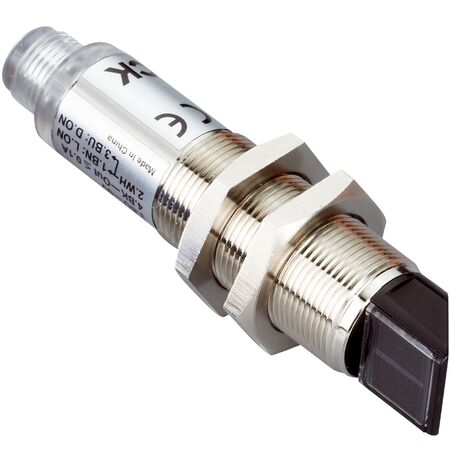

The SICK VTE180-2P42484 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
