Photoelectric Proximity Sensor | 1 mm to 650 mm Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 1 mm to 650 mm and a visible red light LED source at 645 nm. With a high switching frequency of 1,000 Hz and a rapid response time of ≤ 0.5 ms, it ensures precise object detection and monitoring in manufacturing processes. Built to withstand harsh environments with an IP67 rating, this sensor is perfect for safety applications and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 1 mm to 650 mm (max 900 mm)
- Light source: LED, visible red light, 645 nm wavelength
- Focus and angle of dispersion: Approx. 1.2°
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Male connector M12, 4-pin
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Dimensions (H x L x W): 18mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Visible red light LED source with 645 nm wavelength
- Sensing range from 1 mm to 650 mm (max 900 mm)
- Radial optical axis with approx. 1.2° focus and angle of dispersion
- Potentiometer adjustment with 270° sensing range
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25 °C to +55 °C
- Plastic housing (PBT/PC) and optics (PMMA) for durability
- Male connector M12, 4-pin connection type
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable materials reduce waste and extend product life
- IP67 rating ensures long-term reliability in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

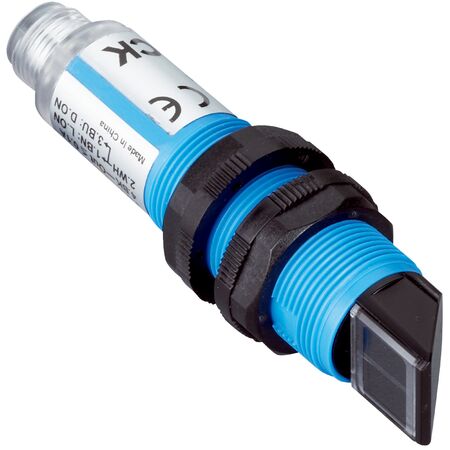

The SICK VTE180-2P42489 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
