Photoelectric Proximity Sensor | 2 mm to 300 mm Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 2 mm to 300 mm, with optimal performance at 2 mm to 45 mm. This robust sensor utilizes an infrared LED light source and is IP67 rated for dust and water protection, making it ideal for detecting various object types in manufacturing processes. With a fast response time and high shock resistance, it ensures reliable operation in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 20mm x 17mm x 762mm
- Weight: 0.277 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal 2 mm to 45 mm
- Infrared LED light source with 850 nm wavelength
- Three beams with 150 mm separation and point-shaped light spots
- LED indicators for power and object presence status
- Robust metal aluminum anodised housing with PMMA front screen
- IP67 rated for dust and water protection
- High shock resistance (30 g) and vibration resistance (10 Hz to 55 Hz)
- Cable with M12 4-pin connector, 2 m length
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Fast response time ≤ 1 ms and switching frequency up to 500 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Detecting flat, perforated, uneven, and shiny objects
- Position tolerance detection in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Durable IP67 rated housing extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

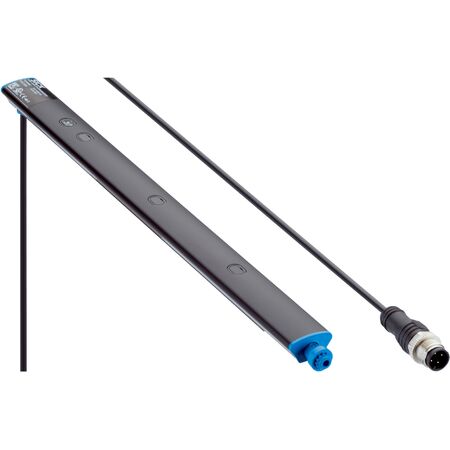

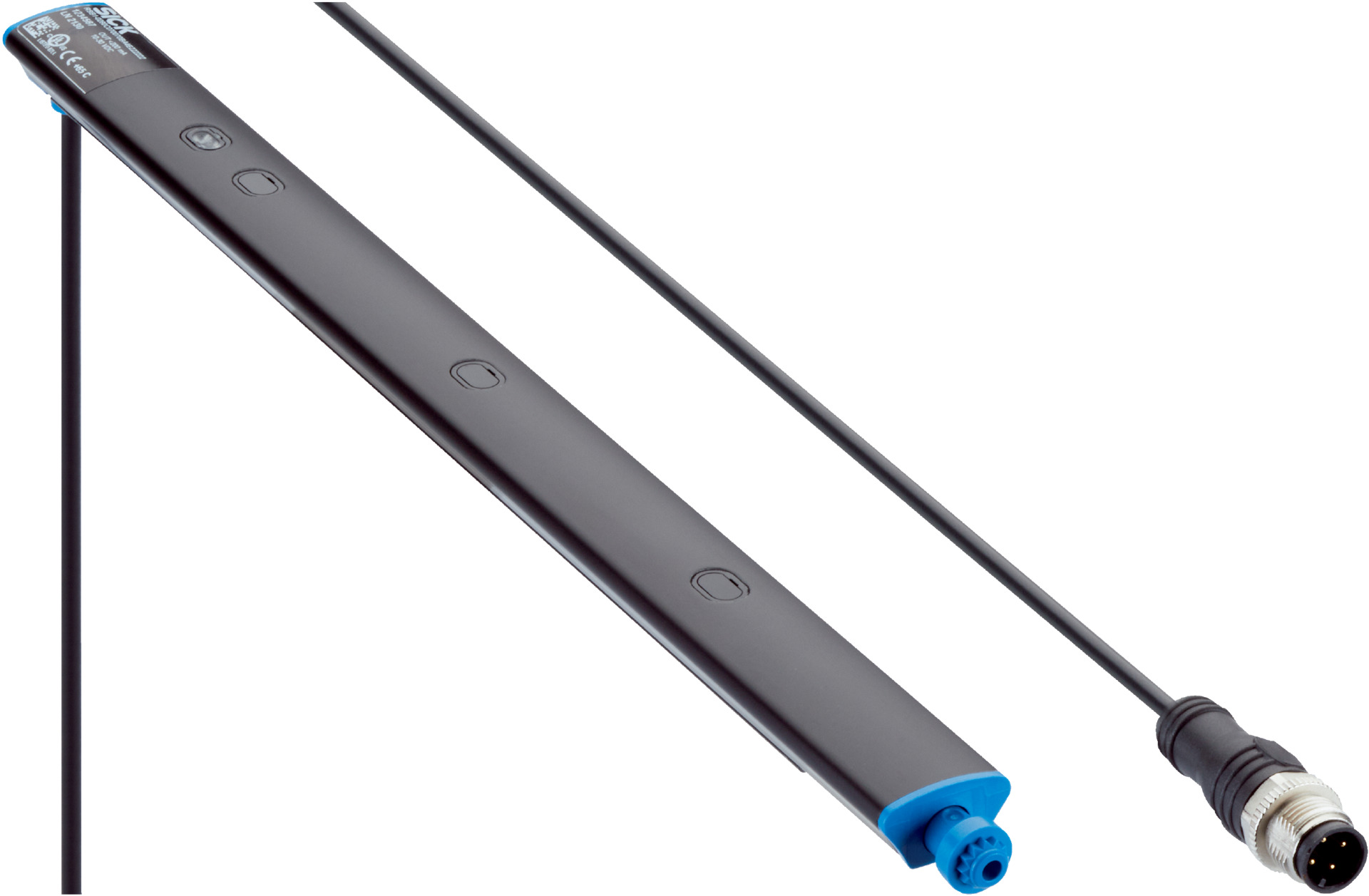

The SICK RSB1-0762C150231AZ4GZZZP0A Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
