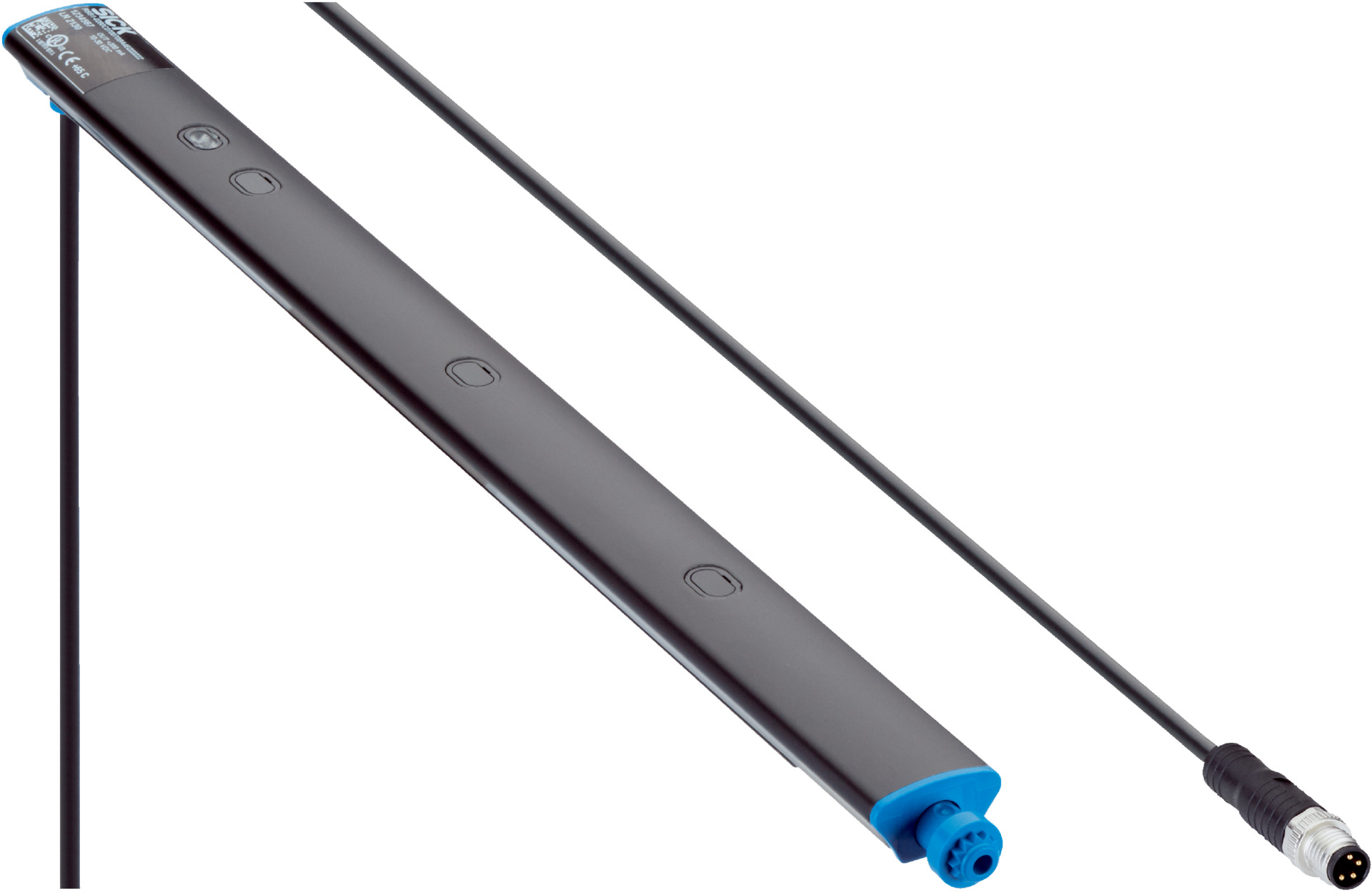

Photoelectric Proximity Sensor | 2 mm to 300 mm Sensing Range | IP67 Rated | by SICK
The photoelectric proximity sensor RSB1-0450H050050PF3EZZZP0D is designed for precise object detection in industrial automation. With a sensing range of 2 mm to 300 mm and an infrared LED light source, it excels in detecting various object types, including shiny and uneven surfaces. Its robust IP67 rated enclosure ensures durability in harsh environments, making it ideal for manufacturing processes and position tolerance detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 17mm x 450mm x 20mm
- Weight: 0.164 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Sensing range from 2 mm to 300 mm, optimal 2 mm to 45 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot size 27 mm x 29 mm at 45 mm distance
- 8 beams with 50 mm beam separation
- LED indicators for power and object detection status
- Robust metal aluminum anodised housing with PMMA front screen
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40 °C to +60 °C
- High shock and vibration resistance
- Cable with M8 4-pin connector, 1 m length
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Detecting flat, perforated, uneven, and shiny objects
- Position tolerance detection in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED technology minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK official warranty policy.
Available Now
The SICK RSB1-0450H050050PF3EZZZP0D photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
