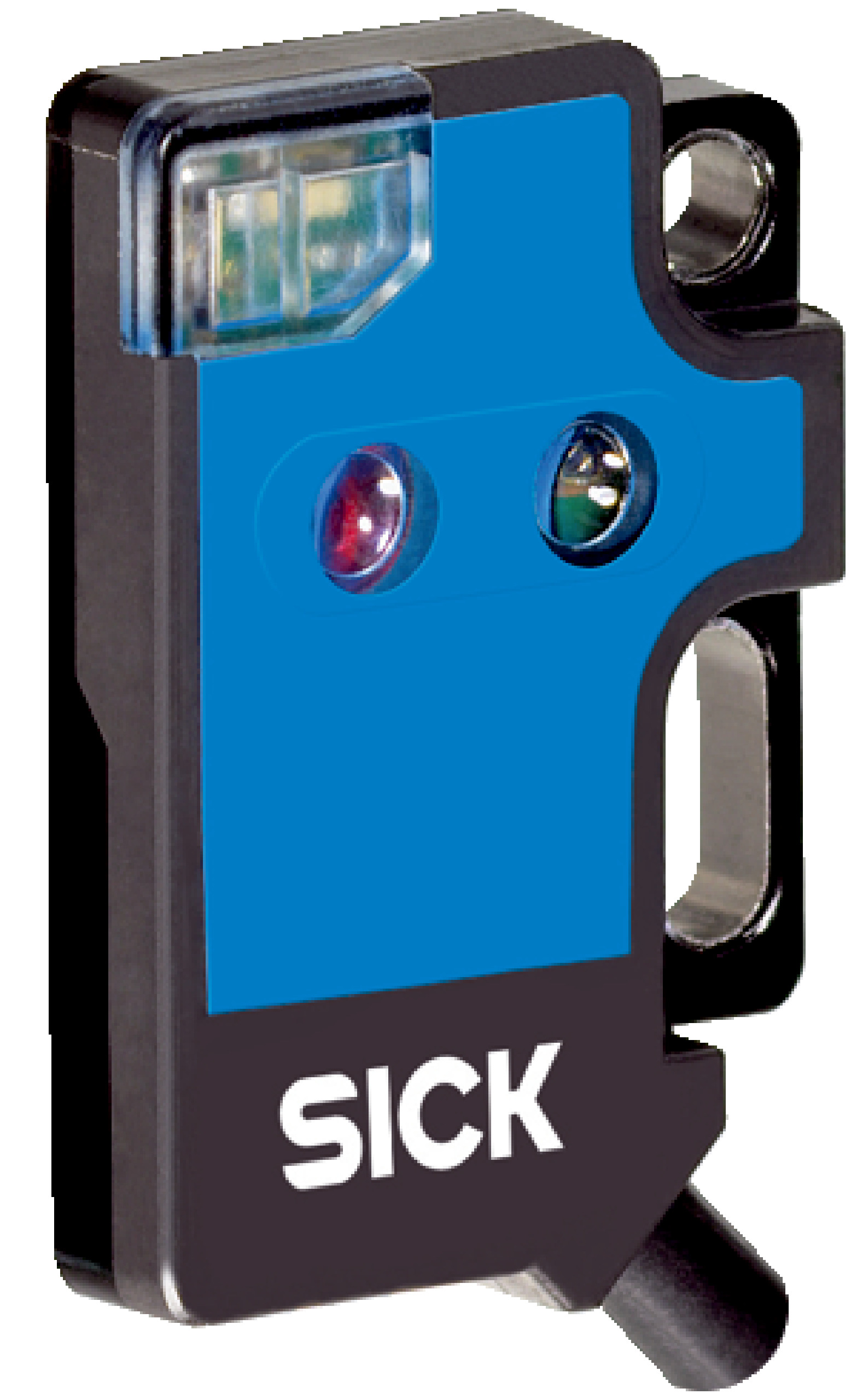

Photoelectric Proximity Sensor WT2F-P180 | IP67 Rated | 4mm to 115mm Sensing Range | PNP Output | by SICK
The WT2F-P180 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 4 mm to 115 mm and a fast response time of ≤ 0.5 ms. With an IP67 rating and durable plastic housing, it’s perfect for object detection and safety monitoring in manufacturing processes, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 4 mm to 115 mm
- Light source: LED, wavelength 660 nm
- Supply voltage: 12 V DC to 24 V DC
- Ripple: < 5 V pp
- Switching output: PNP, light switching mode
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Cable, 3-wire, 2 m, PVC
- Circuit protection: Reverse polarity and short-circuit protection
- Housing material: Plastic (PC)
- Optics material: Plastic (PC)
- Enclosure rating: IP67
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 19.5mm x 3.5mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red light emission
- Sensing range from 4 mm to 115 mm
- LED light source with 660 nm wavelength
- Supply voltage 12 V DC to 24 V DC with ripple less than 5 V pp
- PNP switching output with light switching mode
- Response time ≤ 0.5 ms and switching frequency up to 1,000 Hz
- Cable connection, 3-wire, 2 m length with PVC material
- Circuit protection including reverse polarity and short-circuit protection
- Housing and optics made of plastic (PC) with IP67 enclosure rating
- Operating temperature range from -20 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Position sensing in robotics
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WT2F-P180 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
