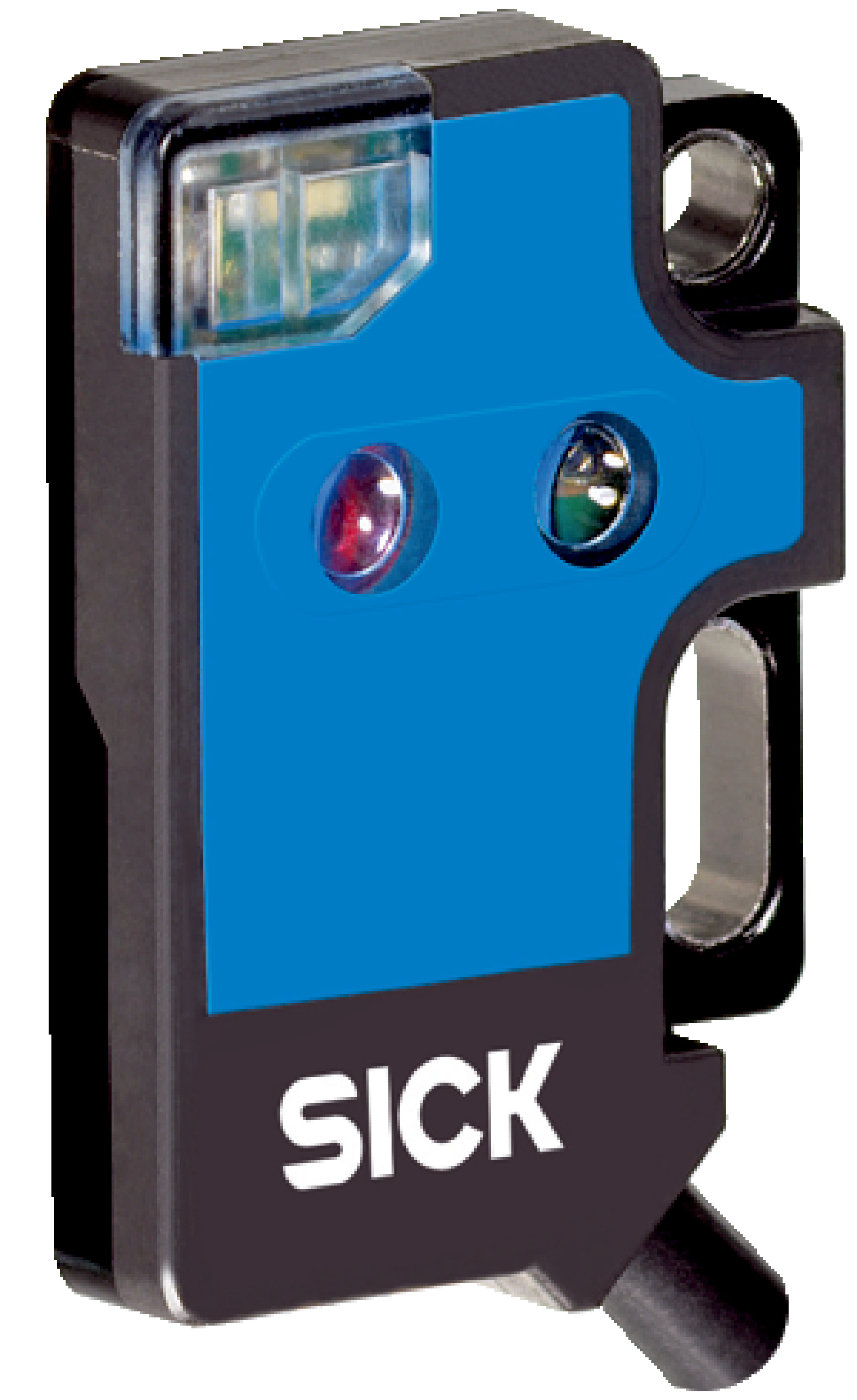

Photoelectric Proximity Sensor WT2F-P480 | 4 mm to 115 mm Sensing Range | IP67 Rated | by SICK
The WT2F-P480 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 4 mm to 115 mm and a high switching frequency of 1,000 Hz. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing process control and safety monitoring in machinery, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor (energetic)
- Sensing range: 4 mm to 115 mm
- Light source: LED with 660 nm wavelength
- Supply voltage: 12 V DC to 24 V DC
- Switching output: PNP, light switching mode
- Output current max: ≤ 50 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Cable with M8 male connector, 4-pin, 200 mm length
- Cable material: Plastic, PVC
- Enclosure rating: IP67
- Operating temperature: -20 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Circuit protection: Reverse polarity and short-circuit protection
- Dimensions (H x L x W): 19.5mm x 3.5mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with energetic functional principle
- Rectangular housing design with visible red LED light source
- Sensing range from 4 mm to 115 mm
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection included
- Compact dimensions: 14 mm x 19.5 mm x 3.5 mm
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Position sensing in robotics
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 12 V DC to 24 V DC supply voltage
- Durable plastic housing reduces material waste
- Long service life reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WT2F-P480 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
