Photoelectric Proximity Sensor | 50 mm to 1300 mm Sensing Range | IO-Link Output | IP67 Rated | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 50 mm to 1300 mm and IO-Link output for precise distance measurement. With a robust IP67 rated housing and a visible red laser light source, this sensor is perfect for manufacturing process control and safety monitoring systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric proximity sensor, Optical distance sensor, IO-Link proximity sensor, Laser proximity sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 1300 mm
- Measuring range: 90 mm to 1300 mm
- Resolution: 1000 µm
- Repeatability: 4.5 mm to 11 mm
- Accuracy: -10 mm to +80 mm
- Distance value output: Via IO-Link
- Update rate: 0.8 ms
- Light source: Visible red laser, 658 nm wavelength, Laser class 1
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 25 mA
- Switching output: Push-pull PNP/NPN, max 50 mA
- Response time: ≤ 5 ms
- Switching frequency: 100 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Connection type: Male M8, 4-pin connector
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Sensing range from 50 mm up to 1300 mm
- Distance value output via IO-Link with update rate of 0.8 ms
- Visible red laser light source with wavelength of 658 nm and laser class 1 safety
- Push-pull switching output configurable as PNP/NPN with light/dark switching modes
- Robust IP67 rated plastic housing with M8 4-pin male connector
- Operating temperature range from -40 °C to +50 °C
- Multiple logic and timer functions including AND, OR, hysteresis, and switch-on/off delays
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Manufacturing process control
- Safety and monitoring systems requiring precise distance sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 25 mA current draw
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

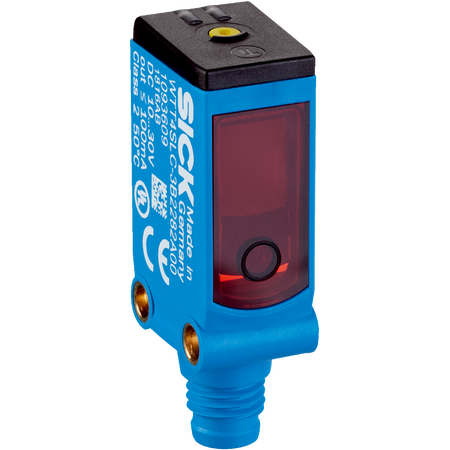

The SICK WTT4SLC-3B2262A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise distance sensing applications.
