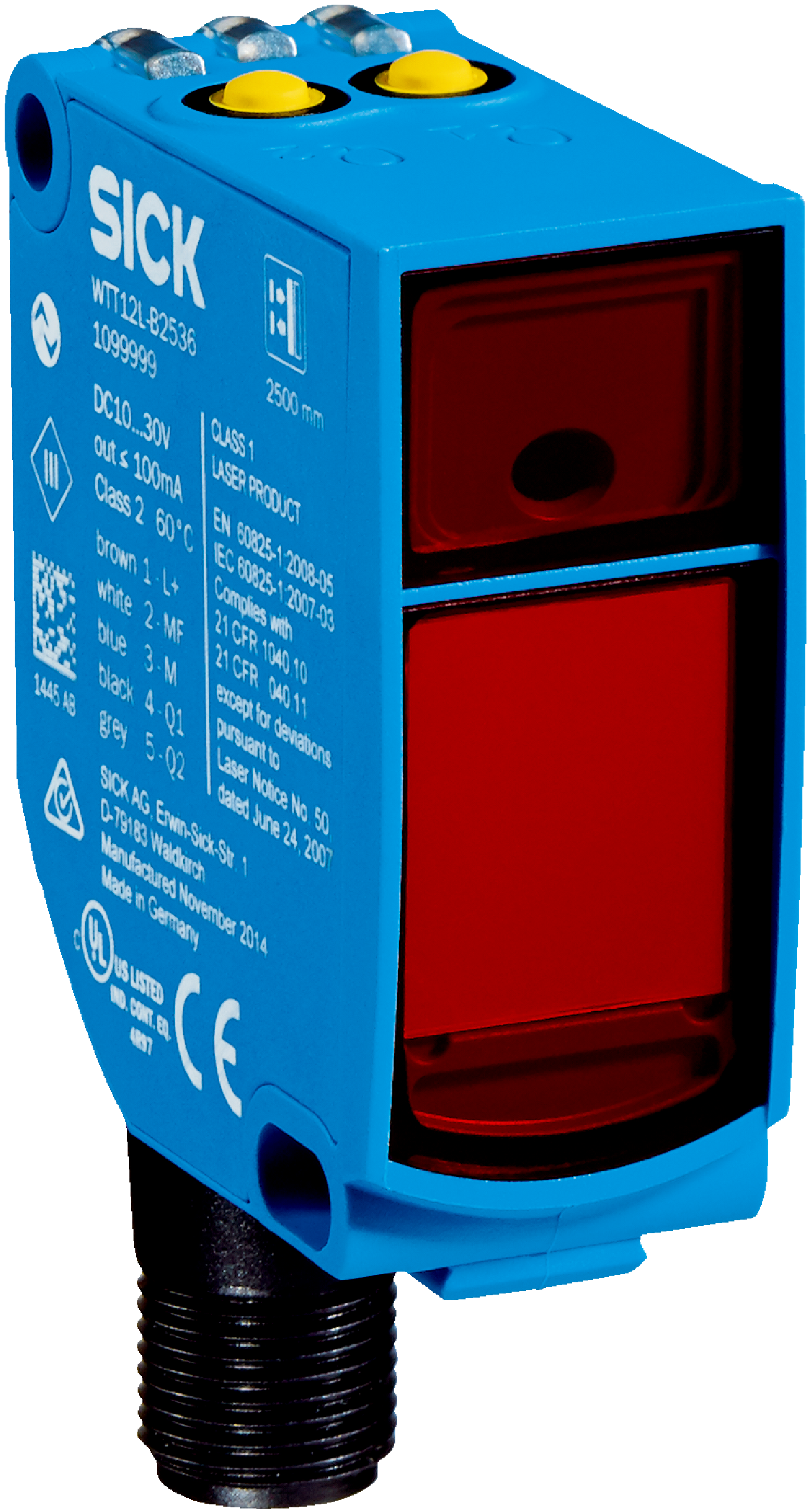

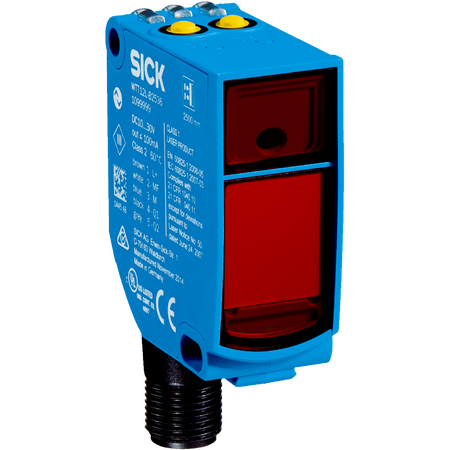

Photoelectric Proximity Sensor WTT12L-B2553 | 50mm to 1800mm Sensing Range | IP67 Rated | by SICK
The WTT12L-B2553 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 50 mm to 1800 mm and a visible red laser light source. With IP67 protection, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor, Optical sensor, Laser proximity switch
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 1800 mm
- Light source: Visible red laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 compliant)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 2 outputs
- Output current max: ≤ 100 mA
- Response time: ≤ 5 ms
- Switching frequency: 100 Hz
- Enclosure rating: IP67
- Housing material: Plastic VISTAL®, Optics material: PMMA
- Connection type: M12, 5-pin plug
- Operating temperature: -35°C to +50°C
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 1800 mm
- Laser class 1 safety compliant
- Single teach-in button for easy adjustment
- Dual push-pull switching outputs (PNP/NPN)
- High switching frequency of 100 Hz and fast response time ≤ 5 ms
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -35°C to +50°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable IP67 rated housing reduces environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTT12L-B2553 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
