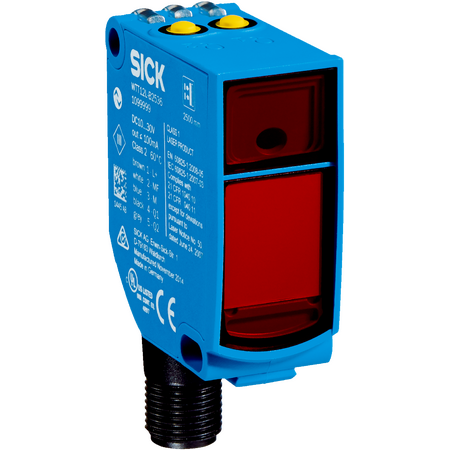

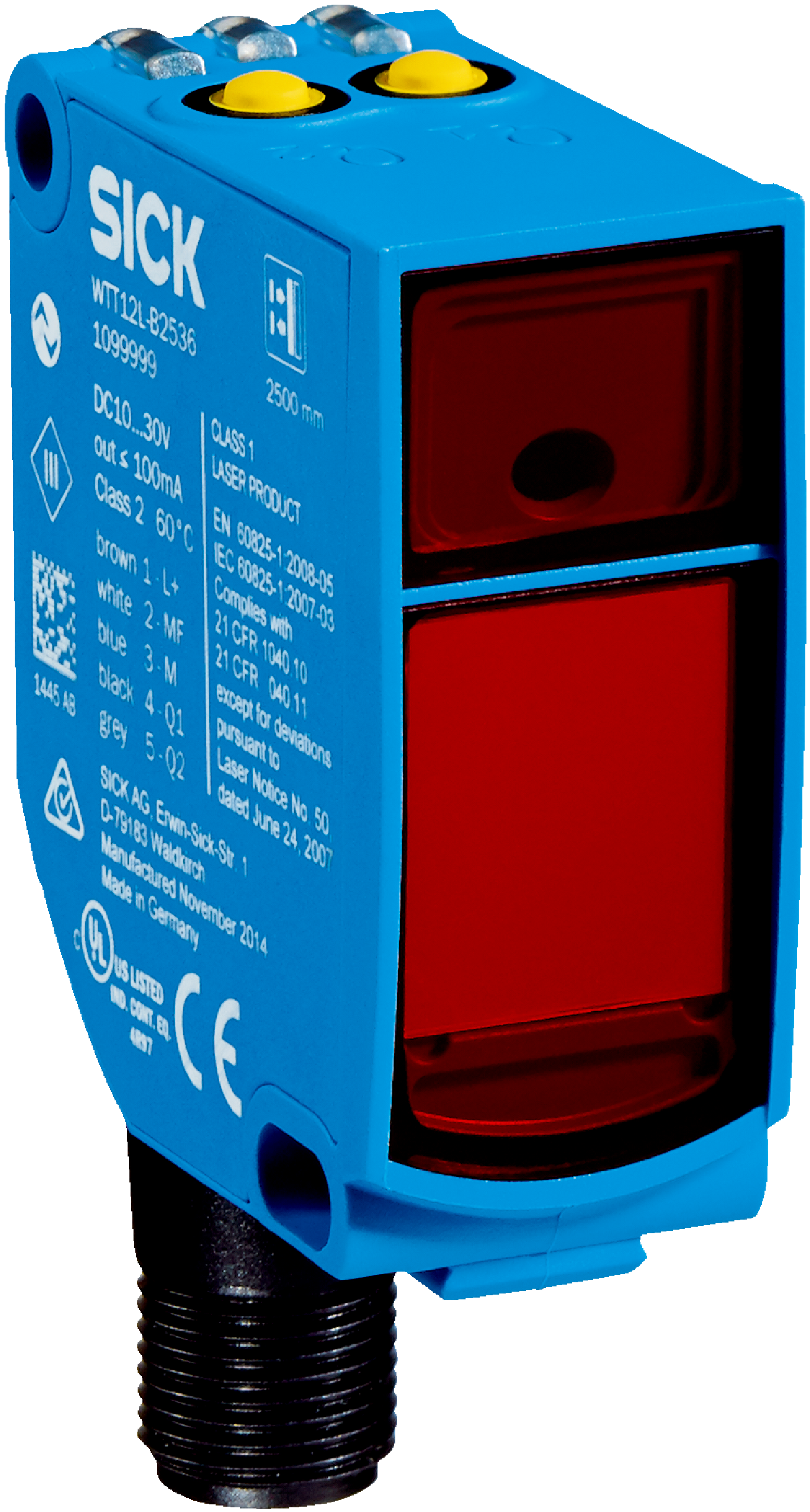

Photoelectric Proximity Sensor | 50 mm to 3,800 mm Sensing Range | IO-Link Communication | IP67 Rated | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 50 mm to 3,800 mm and IO-Link communication for seamless integration. With a visible red laser light source and IP67 rated enclosure, it ensures high accuracy and durability in demanding environments, making it ideal for object detection and distance measurement applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Optical Distance Sensor, Laser Proximity Sensor, IO-Link Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 3,800 mm
- Resolution: 1,000 µm
- Repeatability: 1.1 mm to 3.0 mm
- Accuracy: Typically ±15 mm
- Light source: Visible red laser, wavelength 658 nm, Laser class 1
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 5 ms
- Process data length: 32 Bit
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching outputs: 2 push-pull (PNP/NPN), max output current ≤ 100 mA
- Switching frequency: 100 Hz
- Response time: ≤ 5 ms
- Protection class: III
- Enclosure rating: IP67
- Warm-up time: < 15 minutes
- Initialization time: < 300 ms
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Connection type: Plug, M12, 5-pin
- Operating temperature: -35 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Sensing range from 50 mm to 3,800 mm
- Visible red laser light source with wavelength 658 nm
- Laser class 1 safety compliant
- Single teach-in button and IO-Link communication interface
- Two switching outputs (PNP/NPN) with push-pull switching mode
- High repeatability and accuracy with resolution of 1,000 µm
- IP67 rated enclosure for robust protection
- Operating temperature range from -35 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable IP67 rated housing reduces waste by extending product life
- Compliant with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12LC-B2563 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
