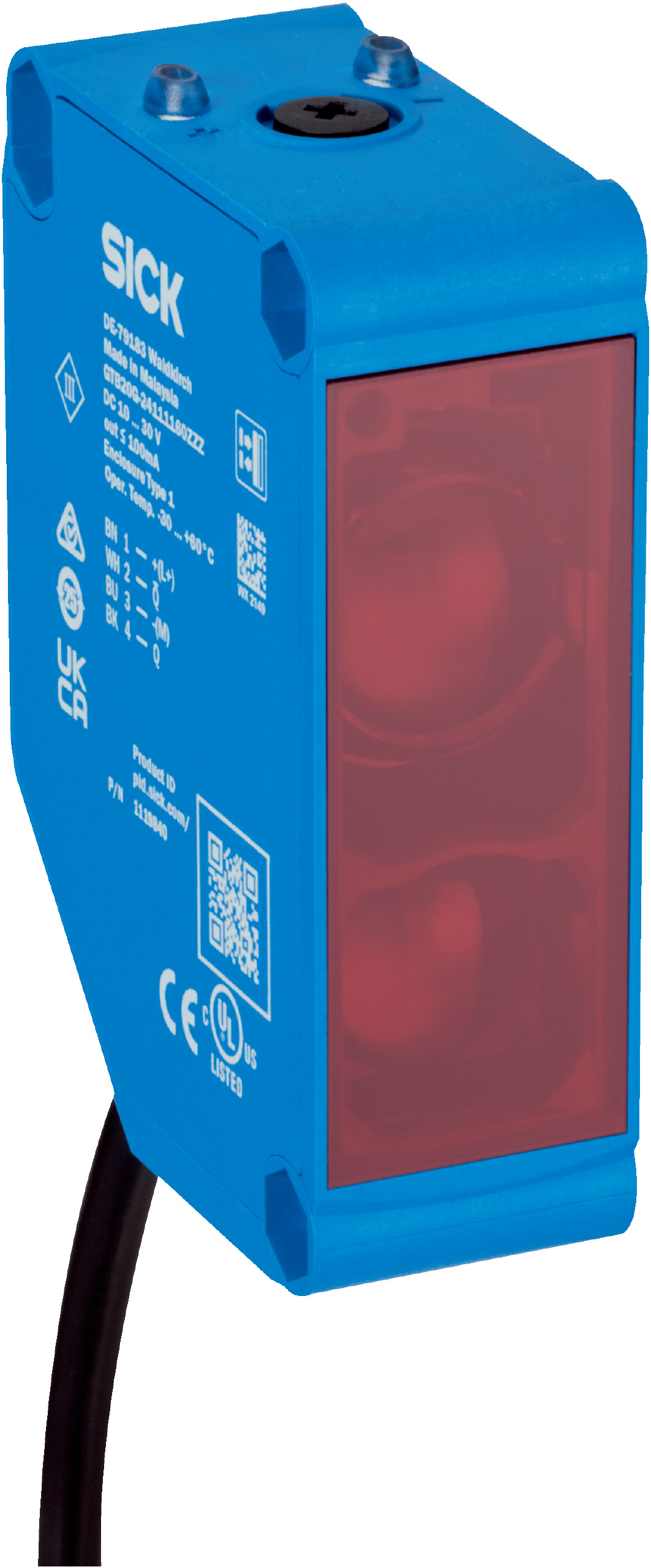

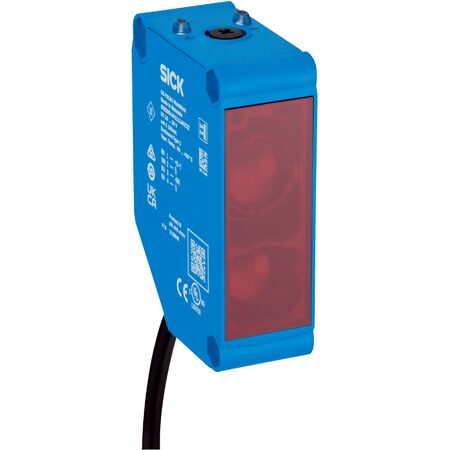

Photoelectric Proximity Sensor | Adjustable Sensing Range | Infrared LED Light Source | IP67 Rated | by SICK
The photoelectric proximity sensor GTB20M-1IRC1160ZZZ features an adjustable sensing range from 0.005 m to 3 m, making it ideal for industrial automation and object detection applications. With an infrared LED light source and robust IP67-rated housing, this sensor ensures high accuracy and reliability in harsh environments, perfect for material handling and safety monitoring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 0.005 m to 3 m adjustable
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 28 mm at 500 mm distance
- LED risk group: Free group according to EN 62471
- Supply voltage: 24 V AC/DC to 240 V AC/DC
- Current consumption: ≤ 10 mA (230 V AC/DC), ≤ 45 mA (24 V AC/DC)
- Output: 2 complementary relay outputs, SPDT, electrically isolated
- Switching mode: Light/dark switching
- Max output current: 4 A at 250 V AC or 24 V DC
- Response time: ≤ 15 ms
- Switching frequency: 10 Hz
- Protection class: II
- Housing material: Plastic ABS, front screen PMMA
- Cable: 5-wire, 2 m length, PVC
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 74.5mm x 63mm x 23.5mm
- Weight: 0.155 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 0.1 m to 3 m
- Infrared LED light source with rectangular light spot
- High accuracy with minimum distance of 200 mm between object and background
- LED indicators for power and object detection status
- Relay output with light/dark switching mode
- Robust plastic ABS housing with IP67 rating for harsh environments
- Wide ambient operating temperature range from -30 °C to +60 °C
- High shock and vibration resistance
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life reduces power consumption and waste
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTB20M-1IRC1160ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
