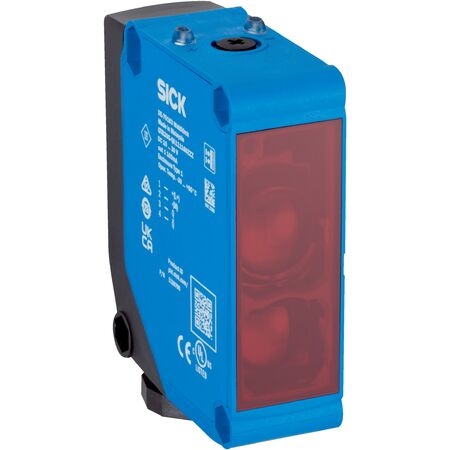

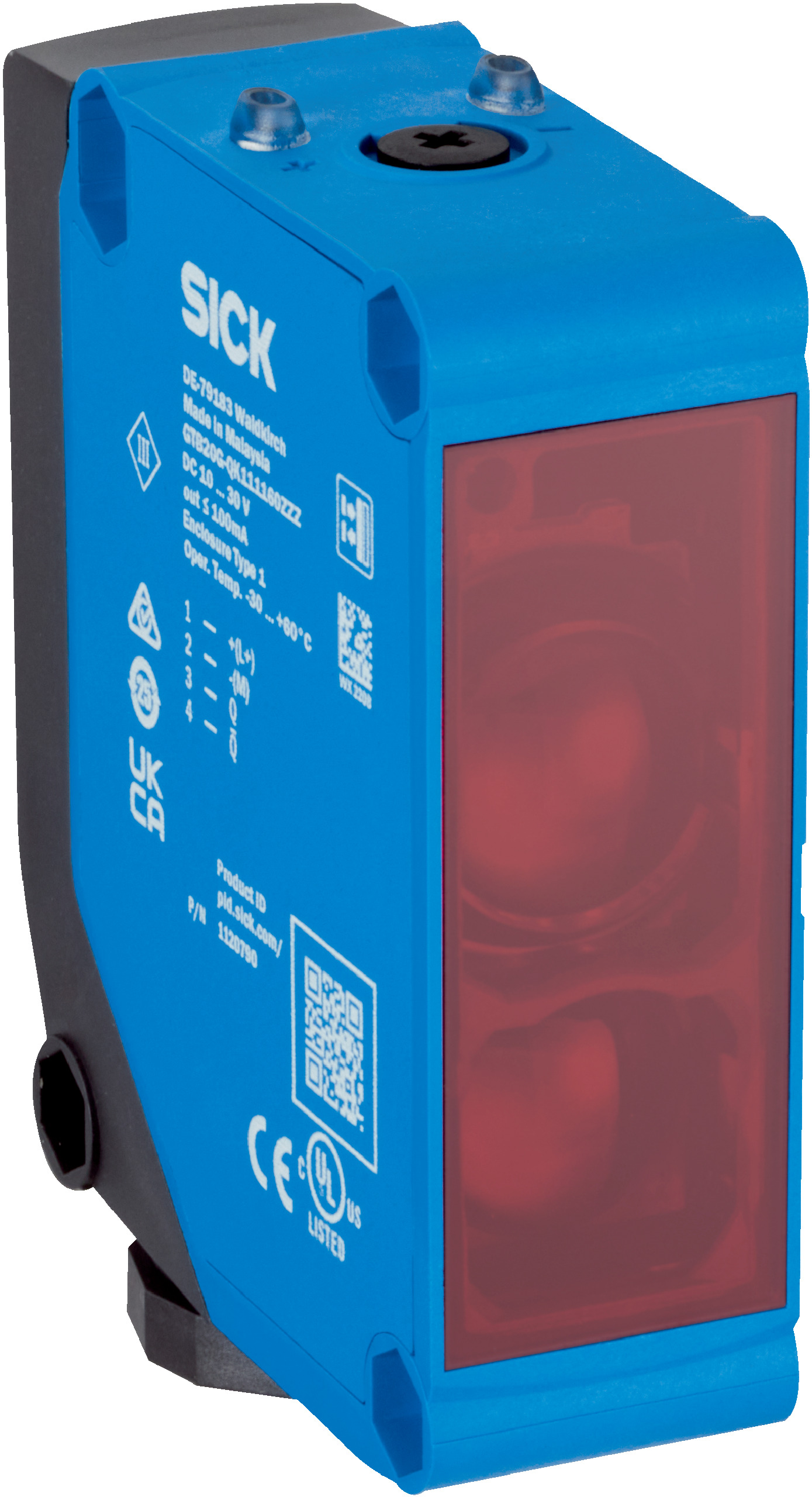

Photoelectric Proximity Sensor | Adjustable Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor GTB20M-QK111160ZZZ features an adjustable sensing range from 0.005 m to 3 m, making it ideal for industrial automation and object detection applications. With a fast response time of ≤ 1.67 ms and high immunity to ambient light, this sensor ensures reliable performance in various environments. Its robust IP67 rated housing provides excellent dust and water protection, making it perfect for manufacturing lines and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 0.005 m to 3 m adjustable
- Light source: Infrared LED, 850 nm wavelength
- Light spot size: Ø 28 mm at 500 mm distance
- Response time: ≤ 1.67 ms
- Switching frequency: 300 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Output type: 2 complementary push-pull outputs (PNP/NPN)
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Housing material: Plastic ABS with PMMA front screen
- Weight: Approx. 90 g
- Dimensions (H x L x W): 74.5mm x 52.5mm x 23.5mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 0.1 m to 3 m
- Infrared LED light source with 850 nm wavelength
- Rectangular light spot with 28 mm diameter at 500 mm distance
- High immunity to ambient light up to 20,000 lx
- IP67 rated housing for dust and water protection
- Short response time of ≤ 1.67 ms and switching frequency of 300 Hz
- Dual complementary push-pull outputs (PNP/NPN)
- Robust plastic ABS housing with PMMA front screen
- Operating temperature range from -30 °C to +60 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and presence detection in manufacturing lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTB20M-QK111160ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
