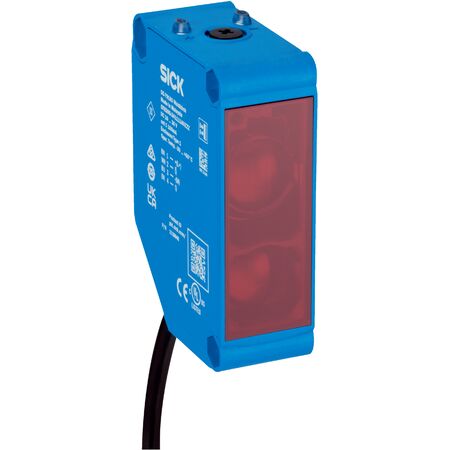

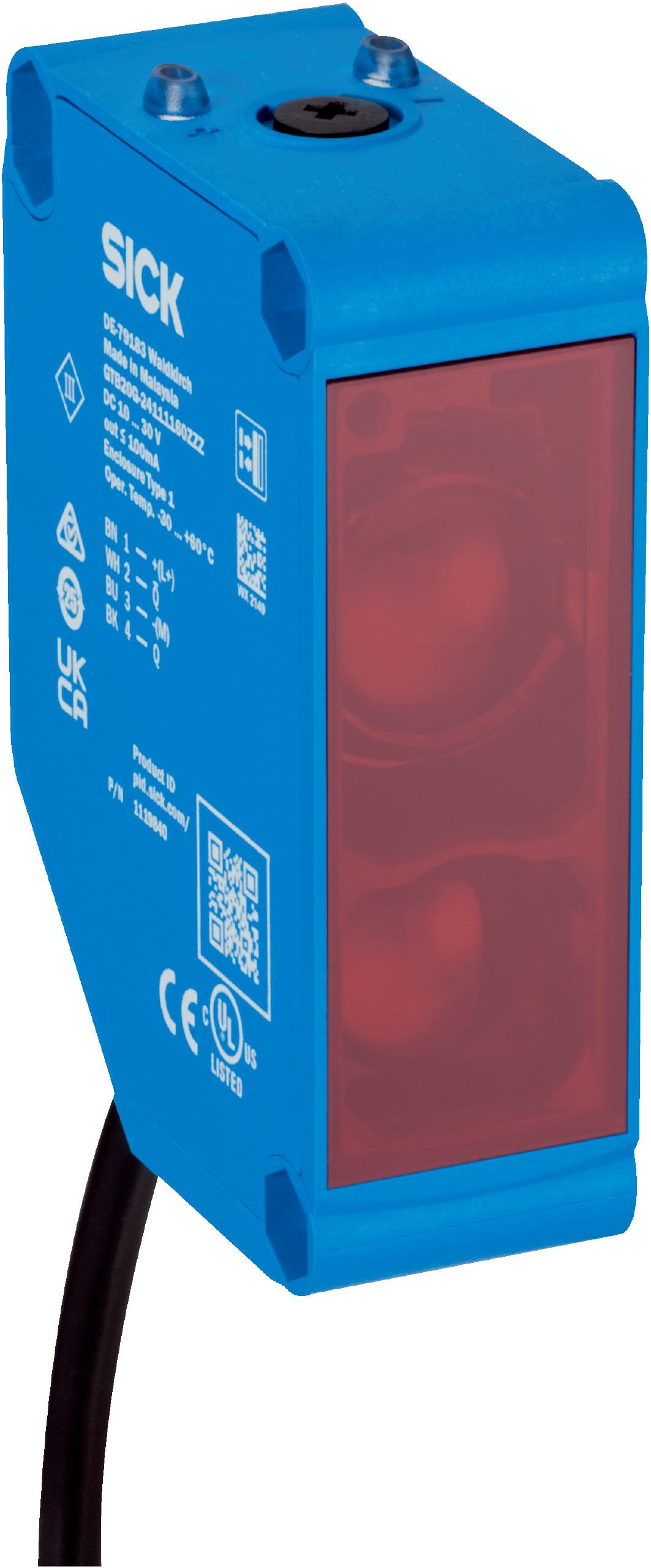

Photoelectric Proximity Sensor | Adjustable Sensing Range | IP67 Rated | by SICK
The photoelectric proximity sensor GTB20M-1H111160ZZZ features an adjustable sensing range from 0.005 m to 3 m, making it ideal for industrial automation and object detection applications. With a robust IP67 rated housing and a fast response time of ≤ 1.67 ms, this sensor ensures reliable performance in challenging environments, perfect for material handling, packaging systems, and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 0.005 m to 3 m adjustable
- Light source: Infrared LED, wavelength 850 nm
- Light spot size: Ø 28 mm at 500 mm distance
- Response time: ≤ 1.67 ms
- Switching frequency: 300 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Output type: 2 complementary push-pull outputs (PNP/NPN)
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +60 °C
- Housing material: Plastic ABS with PMMA front screen
- Cable: 4-wire, 2 m length, PVC insulated
- Dimensions (H x L x W): 74.5mm x 52.5mm x 23.5mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 0.1 m to 3 m
- Infrared LED light source with rectangular light spot
- High immunity to ambient light up to 20,000 lx
- IP67 rated housing for dust and water protection
- Short response time of ≤ 1.67 ms and switching frequency of 300 Hz
- Dual complementary push-pull outputs (PNP/NPN)
- Robust plastic ABS housing with PMMA front screen
- Operating temperature range from -30 °C to +60 °C
- Status indication via green and yellow LEDs
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment for optimal performance and safety.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and presence detection in manufacturing
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Durable IP67 housing extends product lifespan in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTB20M-1H111160ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
