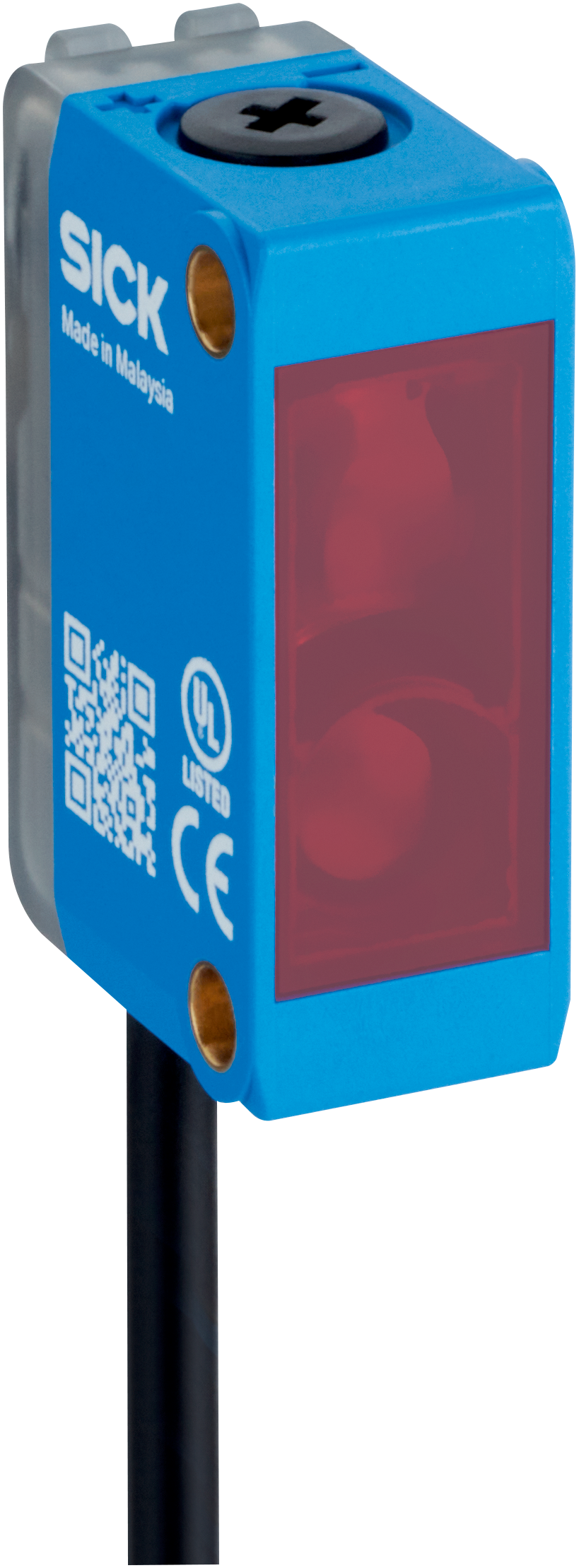

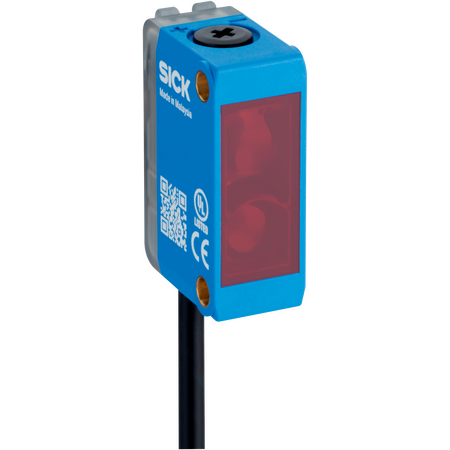

Photoelectric Proximity Sensor | Adjustable Sensing Range 35-400mm | IP67 Rated | by SICK
The Photoelectric Proximity Sensor GTB6SP-1GE1116EZZZ features an adjustable sensing range from 35 mm to 400 mm, making it ideal for industrial automation and object detection applications. With a robust IP67 rating and a high switching frequency of up to 1000 Hz, this sensor ensures reliable performance in challenging environments, perfect for manufacturing process control and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Proximity sensor with background suppression, SICK proximity sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 400 mm, adjustable switching threshold 35 mm to 400 mm
- Light source: PinPoint LED, visible red light, wavelength 640 nm
- Light spot size: Ø 5.6 mm at 150 mm distance
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Output type: NPN open collector, light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Cable: 3-wire, 2 m length, PVC insulated
- Housing material: Plastic ABS
- Front screen material: Plastic PMMA
- Electromagnetic compatibility: EN 60947-5-2
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 35 mm to 400 mm
- Visible red PinPoint LED light source with 640 nm wavelength
- High switching frequency up to 1000 Hz
- Robust plastic ABS housing with IP67 rating
- Operating temperature range from -30 °C to +55 °C
- LED indicators for power and object detection status
- Protection against reverse polarity, overcurrent, and short-circuit
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 20 mA)
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB6SP-1GE1116EZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
