Photoelectric Proximity Sensor | Adjustable Sensing Range 10mm-1600mm | IO-Link Interface | IP66/IP67/IP69 Rated | by SICK

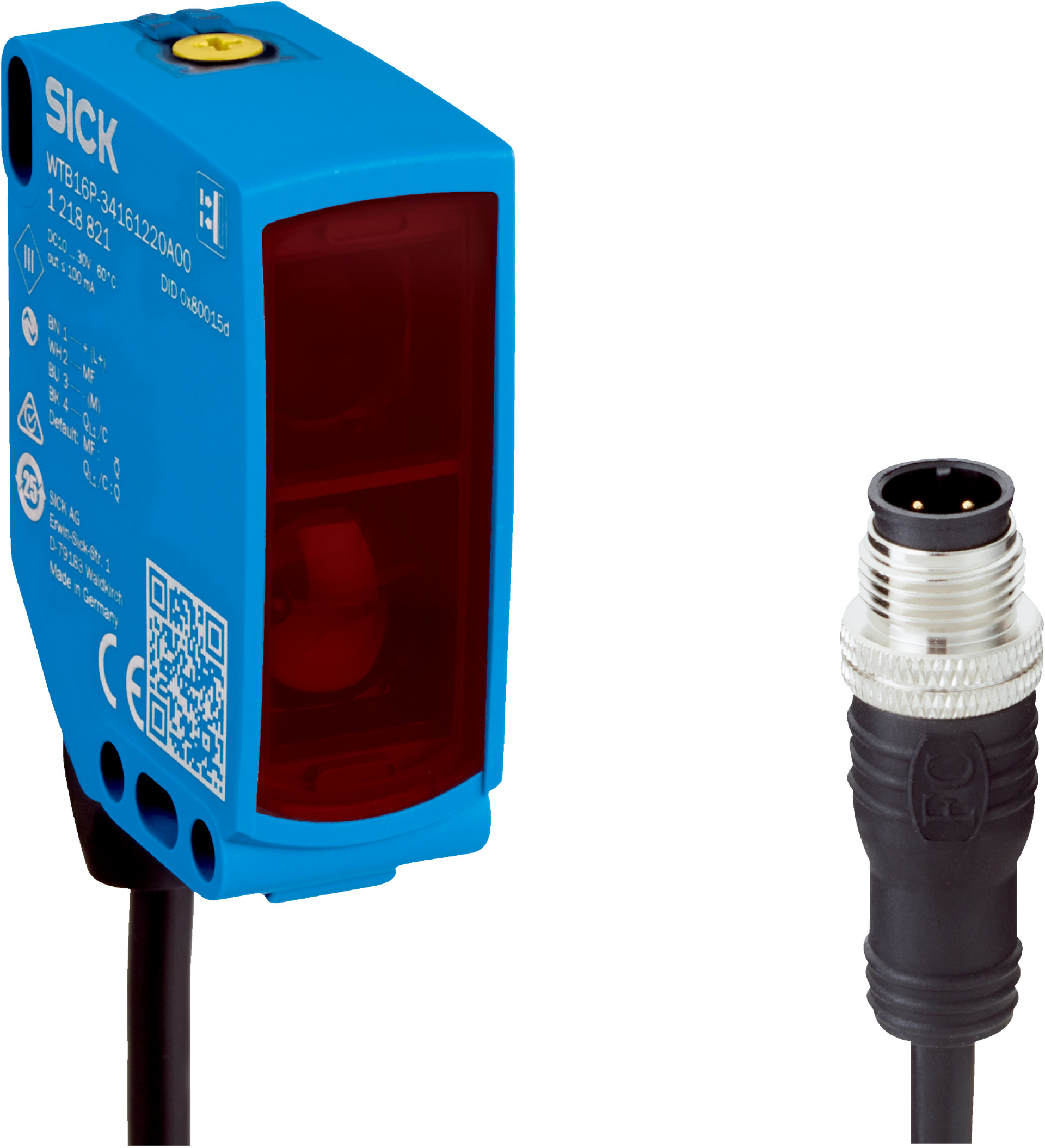

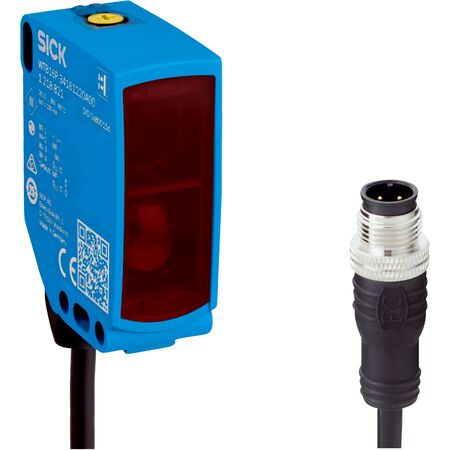

The SICK WTB16P-34161420A00 photoelectric proximity sensor features an adjustable sensing range from 10 mm to 1600 mm, making it ideal for industrial automation and object detection. With a fast response time of ≤ 2.5 ms and a robust IP66/IP67/IP69 rated housing, this sensor is built for reliability in demanding environments. Its IO-Link interface allows for easy parameter configuration, ensuring optimal performance in material handling and packaging applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 1600 mm adjustable
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Response time: ≤ 2.5 ms
- Switching frequency: 200 Hz
- Digital outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Material: Plastic VISTAL® housing, PMMA front screen
- Connection: Cable with M12 male connector, 4-pin, 318 mm length
- EMC standard: EN 60947-5-2
- LED service life: 100,000 hours at 25 °C
- Communication: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 10 mm to 1600 mm
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot Teach-Turn adjustment for easy sensing range setting
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High protection rating: IP66, IP67, IP69
- Robust plastic VISTAL® housing with PMMA front screen
- Fast response time ≤ 2.5 ms and switching frequency up to 200 Hz
- Complementary push-pull digital outputs (PNP/NPN)
- Long LED service life of 100,000 hours at 25°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and secure electrical connections.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Packaging machinery
- Robotics and factory automation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Complies with environmental regulations including China-RoHS
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB16P-34161420A00 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
