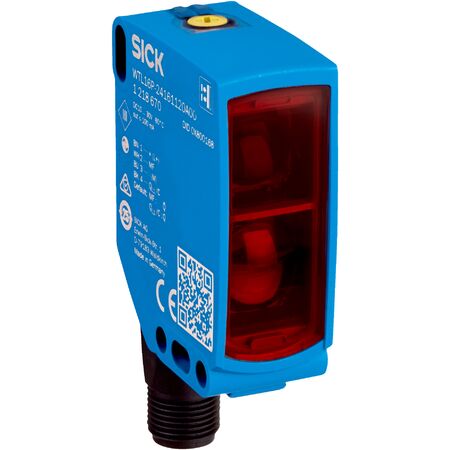

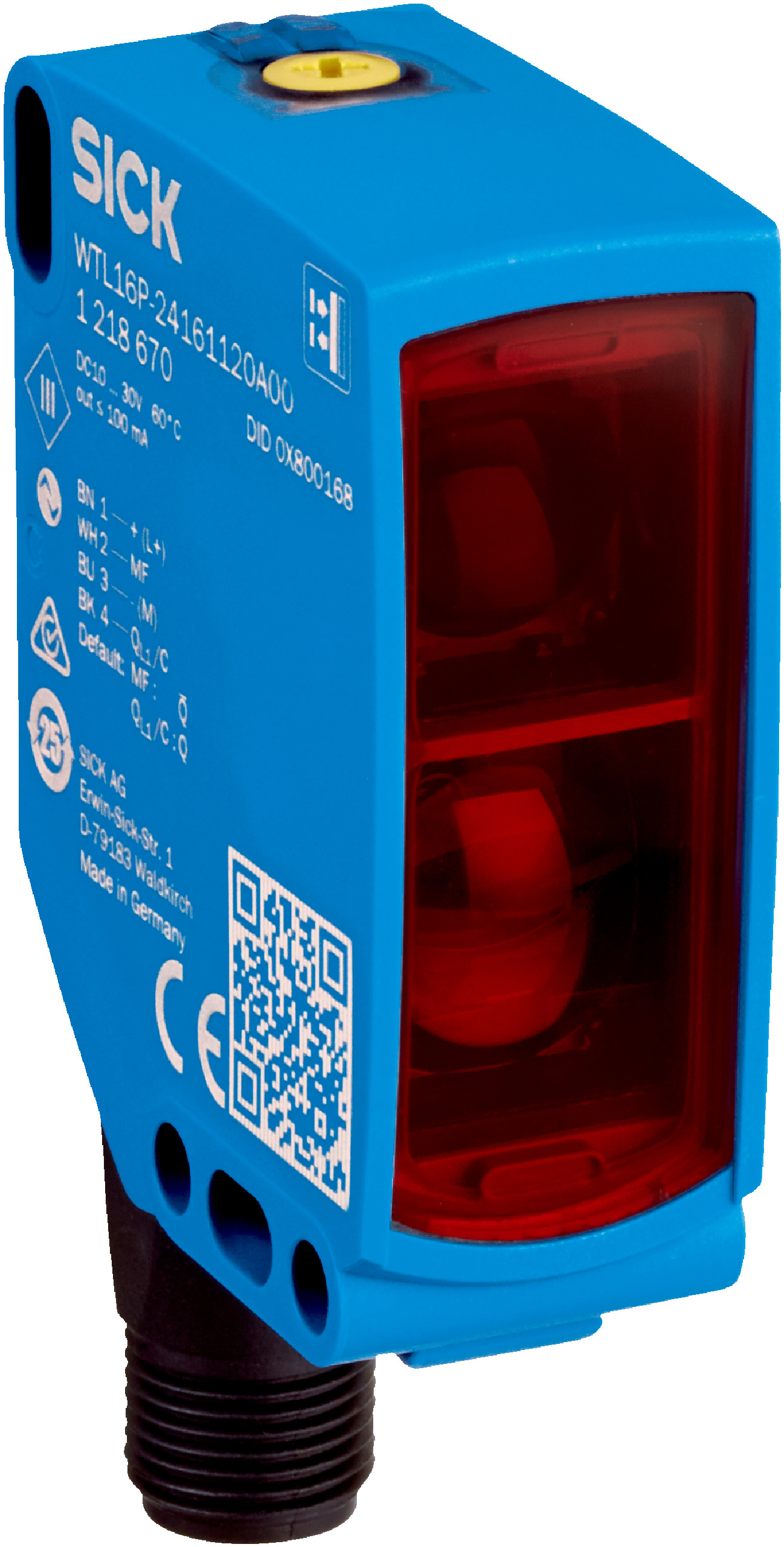

Photoelectric Proximity Sensor | Adjustable Sensing Range 100-1000mm | PinPoint LED Red Light | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring an adjustable sensing range from 100 mm to 1000 mm and a PinPoint LED light source for precise detection. With a fast response time of ≤ 500 µs and dual complementary push-pull outputs, it's perfect for manufacturing process control and material handling applications. Built to withstand harsh environments, this sensor is IP66/IP67/IP69 rated, ensuring reliability in various conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 10 mm to 1000 mm, adjustable switching threshold 100 mm to 1000 mm
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Digital outputs: 2 complementary push-pull (PNP/NPN), max output current ≤ 100 mA
- Supply voltage: 10 V DC to 30 V DC
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Connection: Male M12, 4-pin connector
- Communication: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 100 mm to 1000 mm
- PinPoint LED visible red light with 635 nm wavelength
- High repeatability and fast response time (≤ 500 µs)
- Dual complementary push-pull digital outputs (PNP/NPN)
- IO-Link communication interface for sensor configuration
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2000 Hz
- BluePilot for easy sensing range adjustment
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and secure mounting according to industrial standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with a long service life of 100,000 hours
- Robust design reduces replacement frequency and electronic waste
- Complies with China-RoHS and ECOLAB standards for environmental safety
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB16P-24161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
