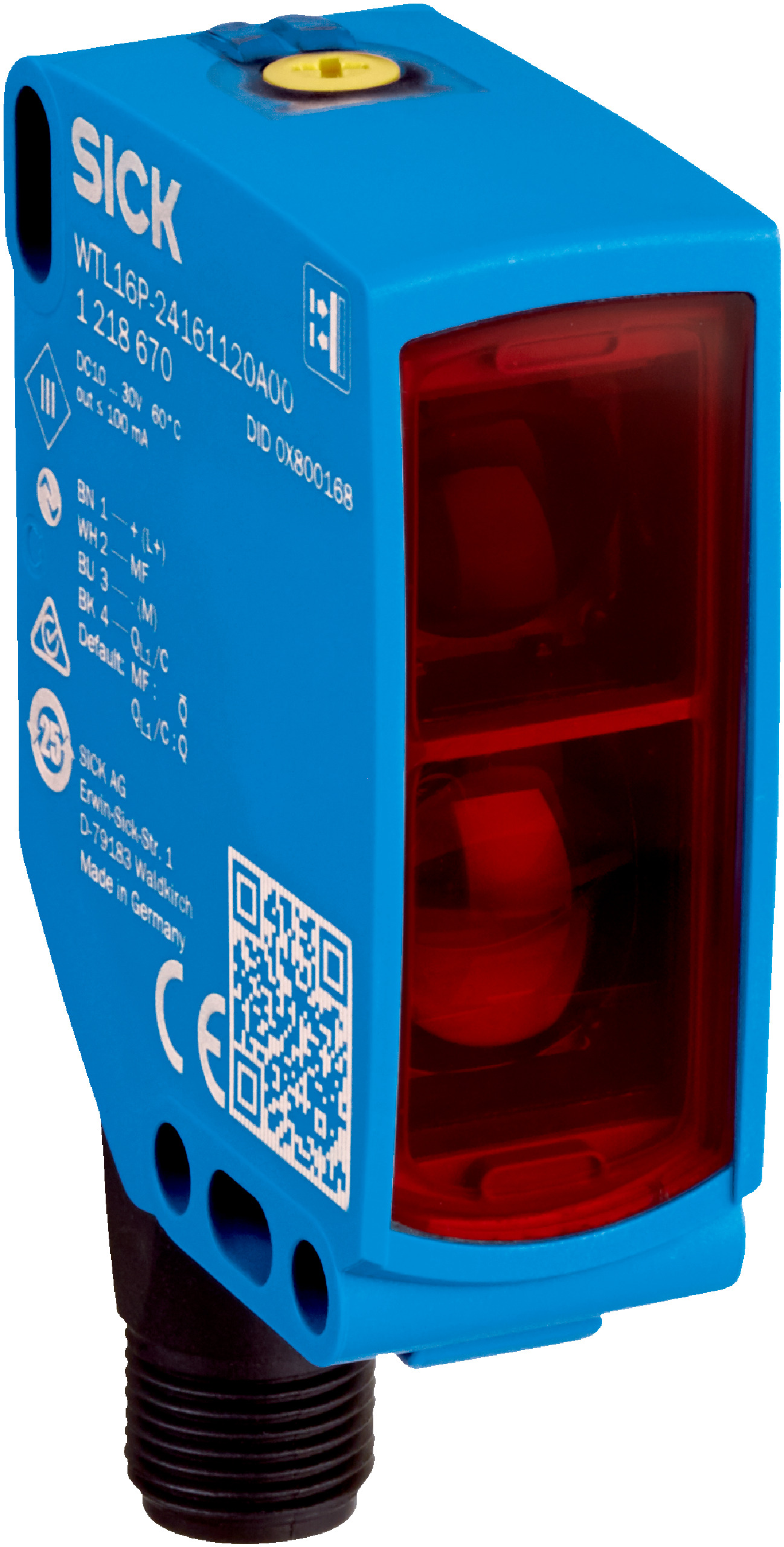

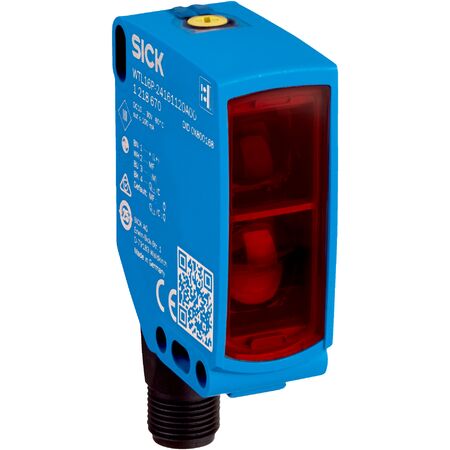

Photoelectric Proximity Sensor | Adjustable Sensing Range 10mm-1000mm | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Proximity Sensor WTB16P-24861120A00 features an adjustable sensing range from 10 mm to 1000 mm, making it ideal for industrial automation and manufacturing process control. With a robust IP66/IP67/IP69 rated housing and a high switching frequency of up to 1000 Hz, this sensor ensures reliable performance in various applications, including material handling and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 10 mm to 1000 mm, adjustable switching threshold 100 mm to 1000 mm
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Switching mode: Light/dark switching with complementary PNP outputs
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load at 24 V
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Connection: Male M12, 4-pin connector
- Housing material: Plastic VISTAL® with PMMA front screen
- Communication: IO-Link V1.1 with COM2 data rate (38.4 kBaud)
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 10 mm to 1000 mm
- PinPoint LED visible red light with 635 nm wavelength
- BluePilot for easy sensing range adjustment
- IO-Link interface for sensor configuration and Smart Task functions
- High switching frequency up to 1000 Hz
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 ratings
- Operating temperature range from -40 °C to +60 °C
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Long LED service life of 100,000 hours at 25 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Complies with environmental standards including China-RoHS
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB16P-24861120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
