Photoelectric Proximity Sensor | Adjustable Sensing Range 100-1500mm | Infrared LED Light Source | IP66/IP67/IP69 Rated | by SICK

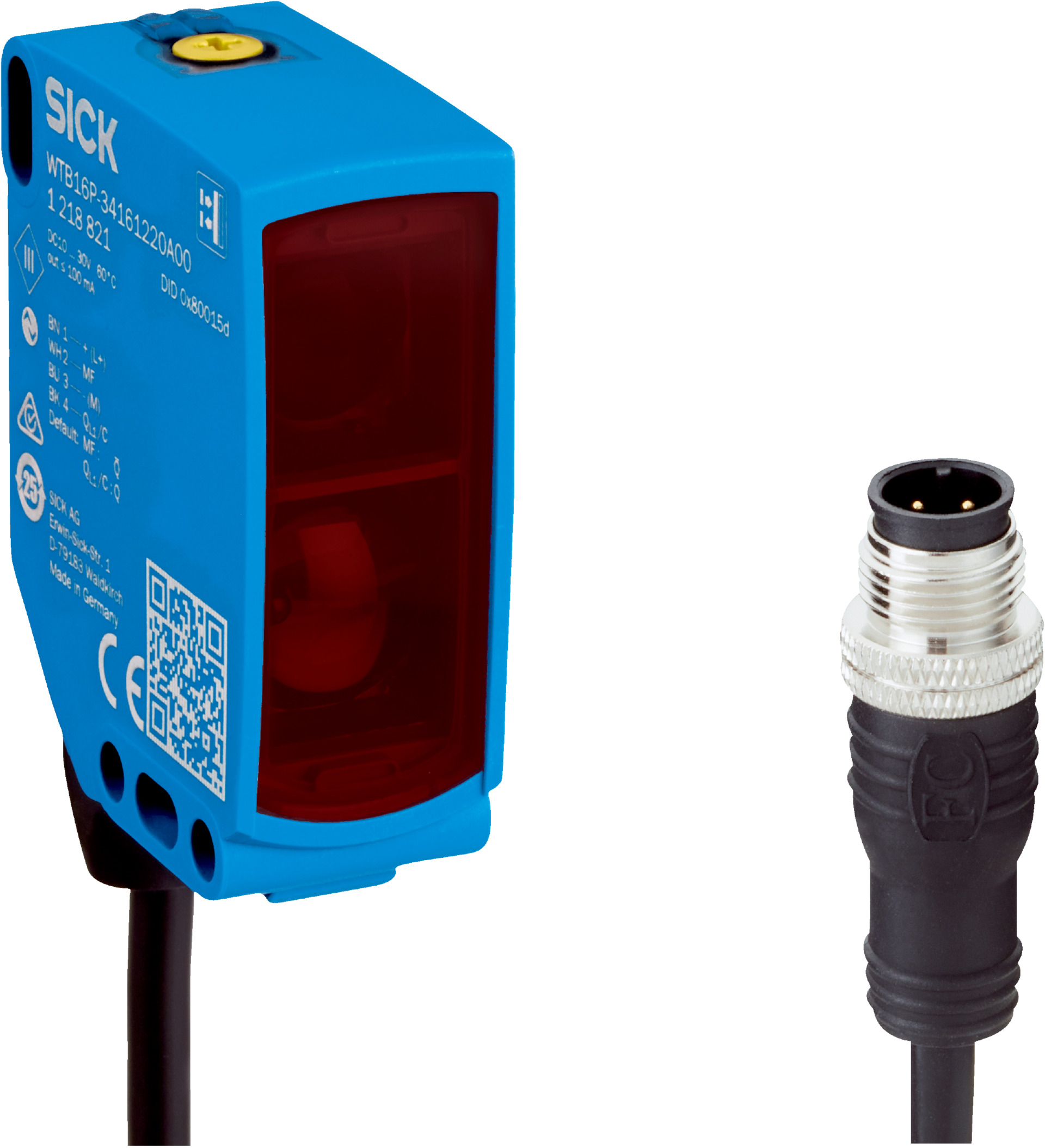

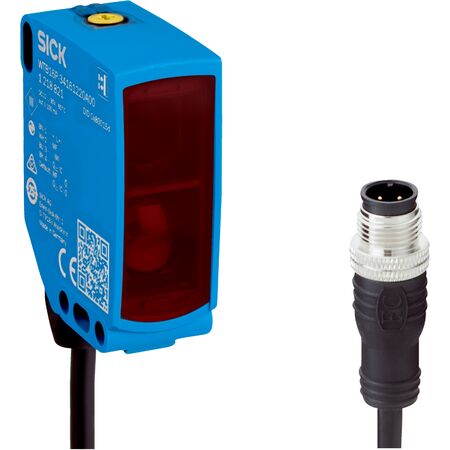

The WTB16I-34115120ZZZ photoelectric proximity sensor is designed for industrial automation, featuring an adjustable sensing range from 100 mm to 1500 mm and an infrared LED light source with an 850 nm wavelength. With a robust IP66/IP67/IP69 rated housing, this sensor is perfect for object detection in material handling, packaging machinery, and safety monitoring applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 10 mm to 1500 mm, adjustable switching threshold 100 mm to 1500 mm
- Light source: Infrared LED, 850 nm wavelength
- Light spot size: Ø 12 mm at 800 mm distance
- Switching mode: Dark switching
- Digital outputs: 2 complementary push-pull (PNP/NPN), max 100 mA output current
- Response time: ≤ 500 µs, switching frequency up to 1000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Material: Plastic VISTAL® housing, PMMA front screen, PVC cable
- Cable: 4-pin M12 male connector, 318 mm length
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 100 mm to 1500 mm
- Infrared LED light source with 850 nm wavelength
- Point-shaped light spot with 12 mm diameter at 800 mm
- High switching frequency up to 1000 Hz
- Dual complementary push-pull digital outputs (PNP/NPN)
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 ratings
- BluePilot teach-turn adjustment for easy sensing range setting
- Long LED service life of 100,000 hours at 25°C
- Shock resistance up to 50 g and vibration resistance from 10 Hz to 2000 Hz
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Packaging machinery
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
- Robust design reduces environmental impact from damage and disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB16I-34115120ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
