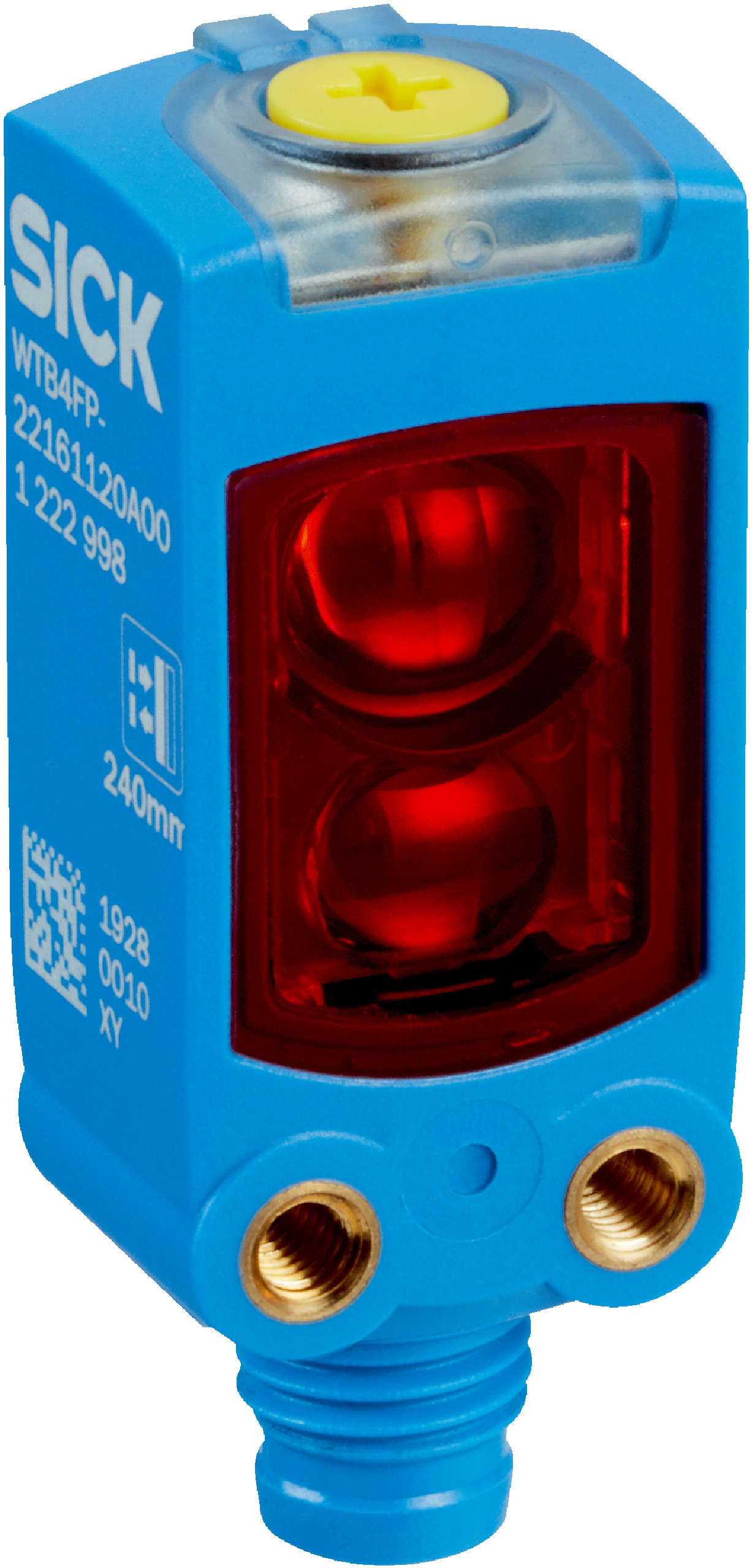

Photoelectric Proximity Sensor | Adjustable Sensing Range 15-220mm | PinPoint LED Light Source | IP66/IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTB4FP-2216K120A00 features an adjustable sensing range from 15 mm to 220 mm, making it ideal for industrial automation and precise object detection. With a PinPoint LED light source emitting visible red light at 635 nm, this sensor ensures high precision and quick response times of ≤ 500 µs. Its robust IP66/IP67 rated housing guarantees durability in harsh environments, perfect for material handling, quality control, and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 4 mm to 220 mm, adjustable switching threshold 15 mm to 220 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Response time: ≤ 500 µs
- Switching frequency: up to 1,000 Hz
- Output type: Push-pull PNP/NPN, dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA at 24 V
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Connection: Male M8, 4-pin connector
- Housing material: Plastic VISTAL® with PMMA front screen
- Communication: IO-Link V1.1 with COM2 data rate (38.4 kBaud)
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 15 mm to 220 mm
- PinPoint LED light source with visible red light at 635 nm wavelength
- High precision with smallest detectable object size of 0.2 mm
- BluePilot for easy sensing range adjustment
- IO-Link V1.1 communication for sensor configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66/IP67 protection rating
- Operating temperature range from -40 °C to +60 °C
- Short response time of ≤ 500 µs and switching frequency up to 1,000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and secure electrical connections, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Quality control and inspection processes
- Robotics and manufacturing lines requiring precise sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with environmental standards including China-RoHS and ECOLAB certification
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB4FP-2216K120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
