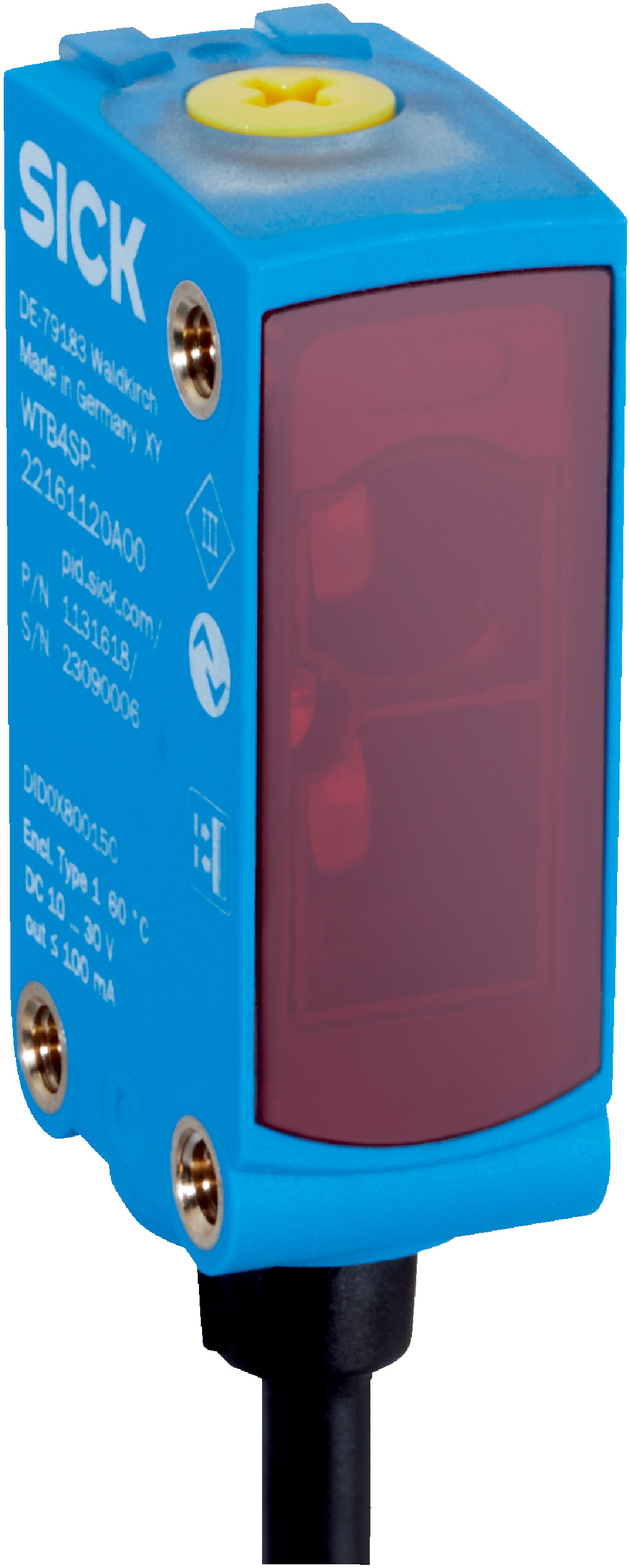

Photoelectric Proximity Sensor | Adjustable Sensing Range 4mm to 250mm | IP66/IP67 Rated | by SICK
The Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring an adjustable sensing range from 4 mm to 250 mm. With a robust IP66/IP67 rated housing and a PinPoint LED light source, it ensures reliable performance in various applications, including manufacturing process control and quality inspection. Ideal for professionals seeking high repeatability and durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 4 mm to 250 mm adjustable
- Recommended sensing range: 40 mm to 170 mm
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Digital outputs: 2 push-pull (PNP/NPN), light/dark switching
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Cable: 4-wire, 2 m length, PVC
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 10 mm to 250 mm
- PinPoint LED visible red light with 635 nm wavelength
- High repeatability with 150 µs response time
- Dual push-pull digital outputs (PNP/NPN) with light/dark switching
- IO-Link V1.1 communication for sensor configuration and Smart Task functions
- Robust plastic VISTAL® housing with IP66/IP67 protection
- Wide ambient operating temperature range from -40 °C to +60 °C
- Shock resistance up to 30 g and vibration resistance from 10 Hz to 1000 Hz
- BluePilot for easy sensing range adjustment
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source with a long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now

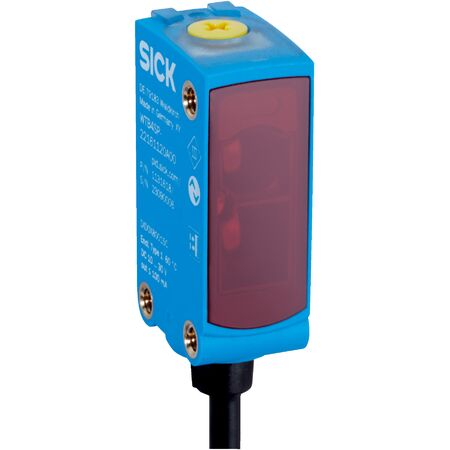

The SICK WTB4SP-1H162120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
