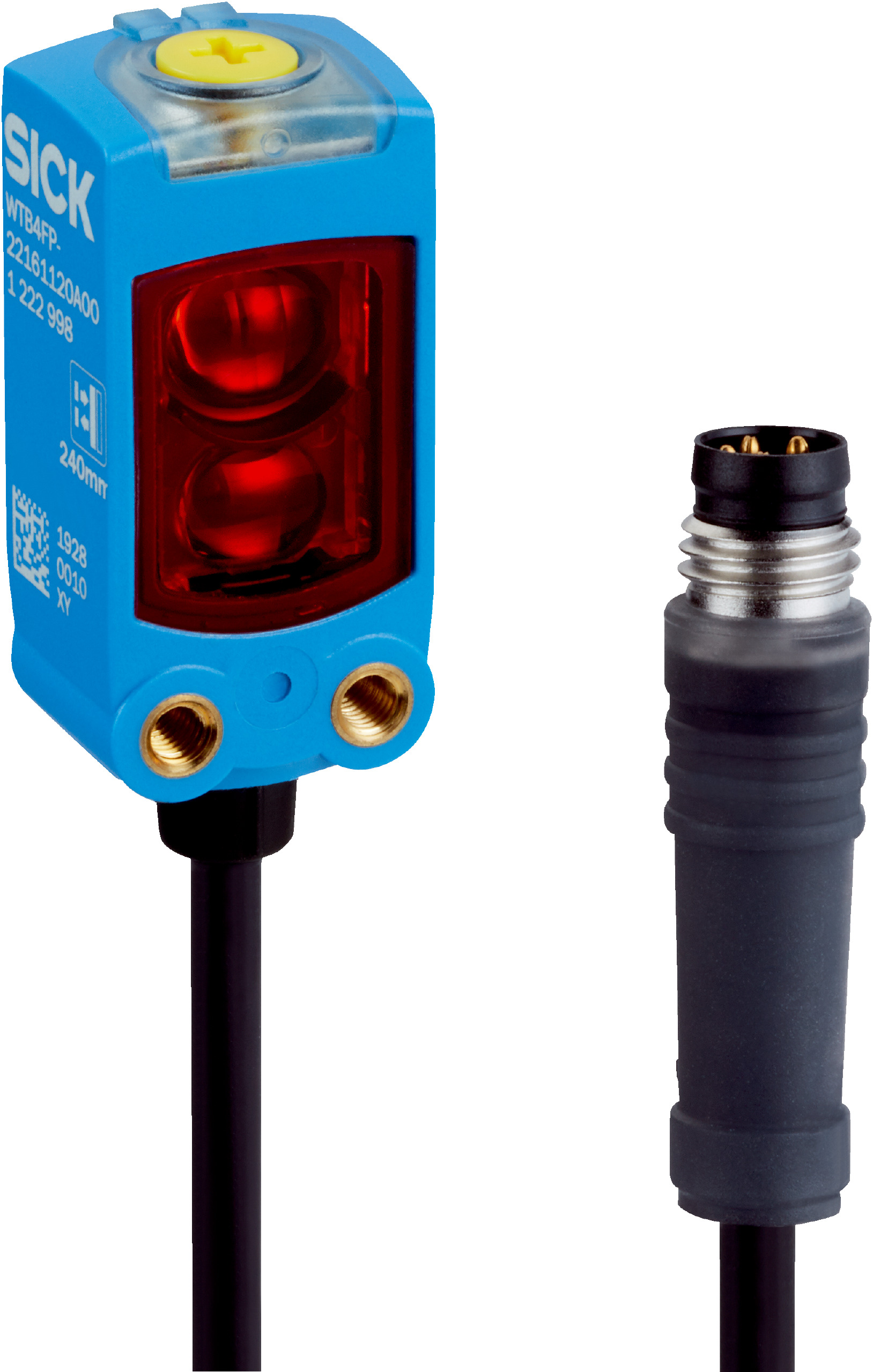

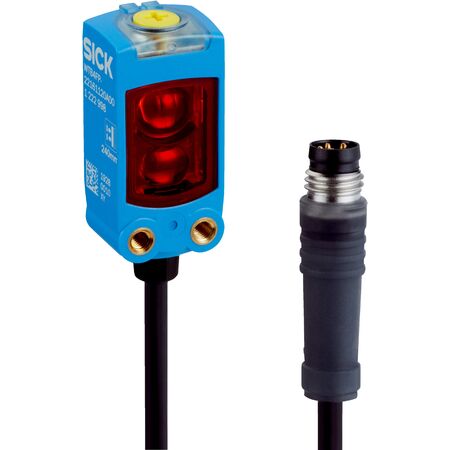

Photoelectric Proximity Sensor | Adjustable Sensing Range 7-120mm | IP66/IP67 Rated | by SICK
The WTB4FT-32862120A00 photoelectric proximity sensor features an adjustable sensing range from 7 mm to 120 mm, making it ideal for precise object detection in industrial automation. With a robust IP66/IP67 rated housing and a fast response time of ≤ 1,000 µs, this sensor is designed for harsh environments and high ambient light immunity, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 7 mm to 120 mm, adjustable switching threshold 15 mm to 120 mm
- Light source: PinPoint LED, visible red light at 635 nm wavelength
- Light spot size: 1.2 mm x 17 mm at 50 mm distance
- Response time: ≤ 1,000 µs, switching frequency up to 500 Hz
- Supply voltage: 10 V DC to 30 V DC with ≤ 25 mA current consumption
- Output: 2 complementary PNP digital outputs with light/dark switching
- Protection class: III, reverse polarity, overcurrent and short-circuit protected
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Connection: Cable with M8 male 4-pin connector, 110 mm length
- Material: Plastic VISTAL® housing, PMMA front screen, PVC cable
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and DoubleLine technology
- Adjustable sensing range from 7 mm to 120 mm with recommended range 30 mm to 80 mm
- Visible red PinPoint LED light source with line-shaped dual light spots
- High immunity to ambient light up to 50,000 lx
- Robust IP66/IP67 rated housing suitable for harsh environments
- Integrated IO-Link V1.1 for sensor parameter configuration and Smart Task functions
- Fast response time ≤ 1,000 µs and switching frequency up to 500 Hz
- LED indicators for sensing range, power, IO-Link mode, and object detection status
- Durable plastic VISTAL® housing with flat design and M8 4-pin connector
- Wide operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct sensor configuration and secure electrical connections.
Applications
- Industrial automation for object detection
- Detecting flat, shiny, perforated, or film-wrapped objects
- Use in environments requiring precise background suppression sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with environmental standards including China-RoHS and ECOLAB certification
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4FT-32862120A00 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
