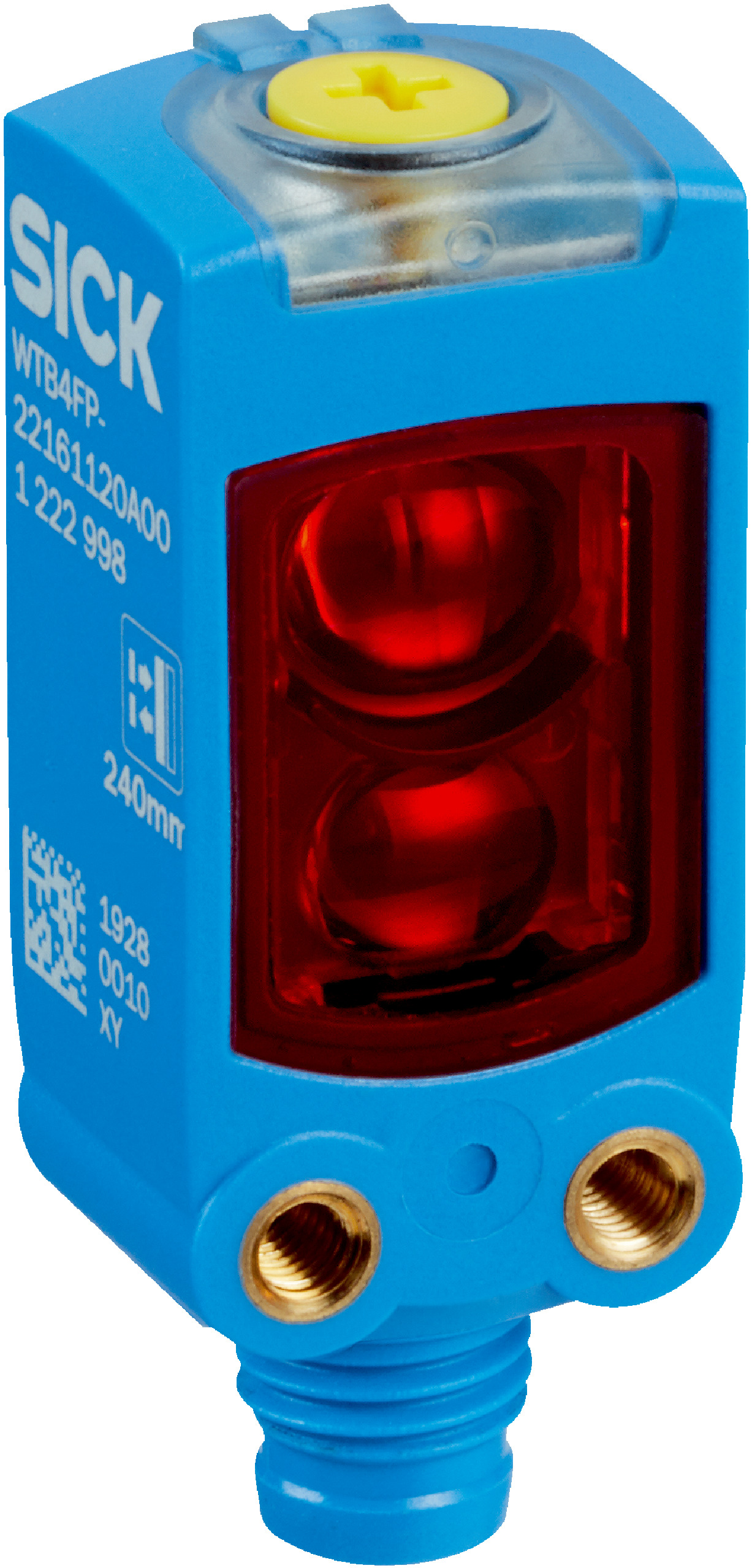

Photoelectric Proximity Sensor | Adjustable Sensing Range | PinPoint LED | IP66/IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTB4FP-22161120A00 features an adjustable sensing range from 15 mm to 220 mm and a PinPoint LED light source for precise object detection. Ideal for industrial automation and manufacturing process control, this sensor offers robust IP66/IP67 protection and high shock resistance, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 4 mm to 220 mm, adjustable switching threshold 15 mm to 220 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Smallest detectable object: 0.2 mm at 130 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA at 24 V
- Digital outputs: 2 complementary push-pull (PNP/NPN), max output current 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Housing material: Plastic VISTAL®, front screen PMMA
- Connection: Male M8, 4-pin connector
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Communication: IO-Link V1.1, COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 15 mm to 220 mm
- PinPoint LED visible red light with 635 nm wavelength
- High precision with smallest detectable object size of 0.2 mm
- BluePilot for easy sensing range adjustment
- IO-Link V1.1 communication for sensor configuration and Smart Task functions
- Dual complementary push-pull digital outputs (PNP/NPN)
- Robust plastic VISTAL® housing with IP66/IP67 protection
- Wide ambient operating temperature range from -40 °C to +60 °C
- High shock and vibration resistance
- LED indicators for sensing range, operation, and object detection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and secure mounting, especially for IO-Link integration.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Quality control and inspection systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with environmental standards including China-RoHS and ECOLAB certification
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4FP-22161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
