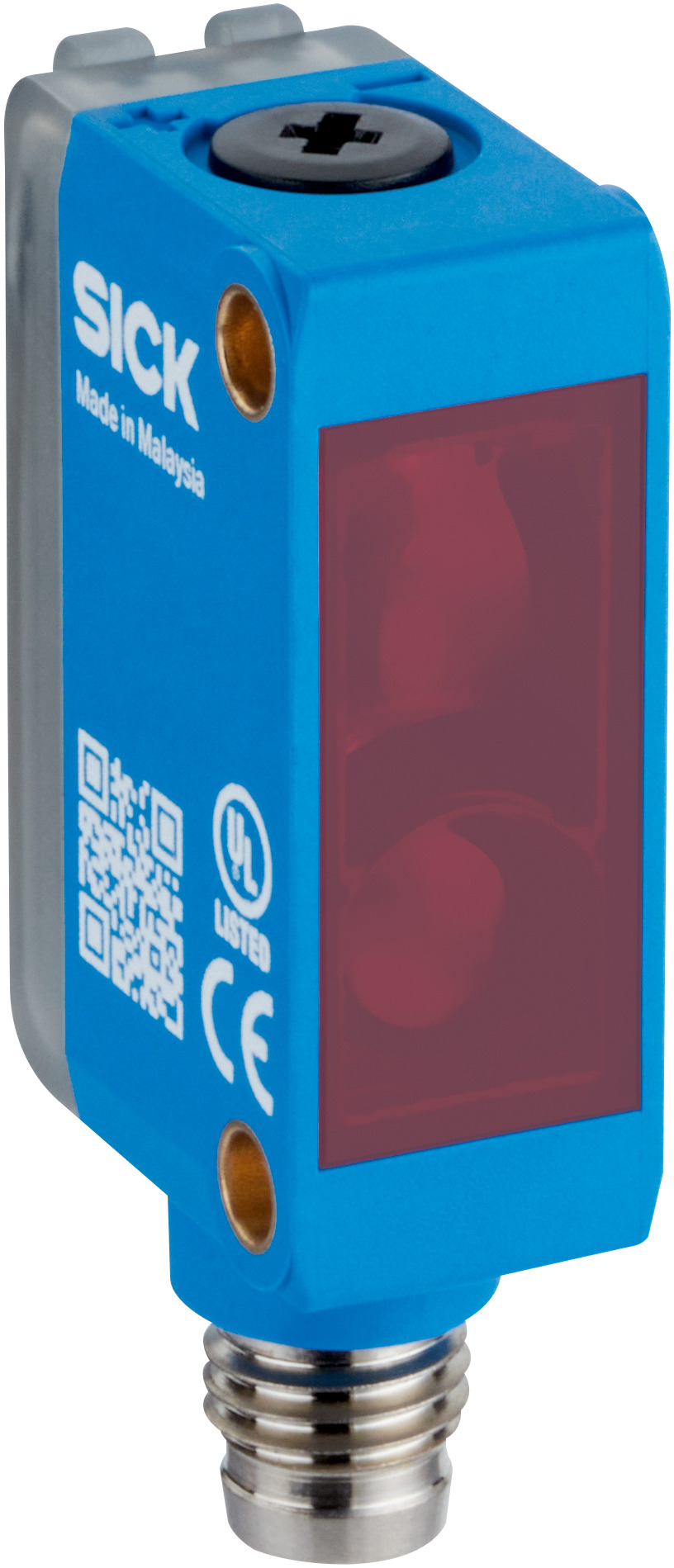

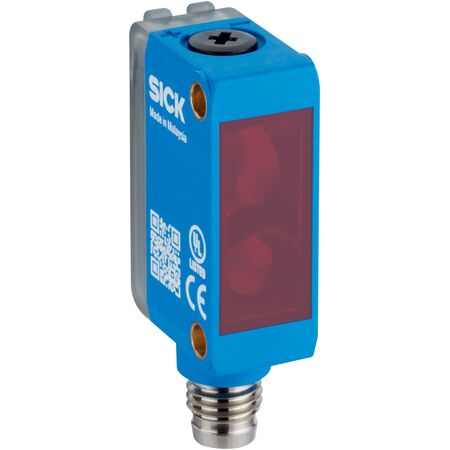

Photoelectric Proximity Sensor | Adjustable Sensing Range 5-400mm | IP67 Rated | by SICK
The Photoelectric Proximity Sensor GTB6SP-22A1116EZZZ features an adjustable sensing range from 5 mm to 400 mm, making it ideal for industrial automation and object detection applications. With a robust IP67 rating for dust and water resistance, this sensor ensures reliable performance in challenging environments, while its high switching frequency of up to 1000 Hz enhances operational efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 400 mm adjustable, recommended 35 mm to 140 mm
- Light source: PinPoint LED, visible red light, 640 nm wavelength
- Light spot size: Ø 5.6 mm at 150 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: Without load at 24 V
- Output type: 1 PNP digital output, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1000 Hz
- Protection: Reverse polarity, overcurrent, short-circuit
- Housing material: Plastic ABS, front screen PMMA
- Connection: Male M8, 4-pin connector
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 55 Hz, amplitude 0.5 mm
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Adjustable sensing range from 5 mm to 400 mm
- PinPoint LED visible red light with 640 nm wavelength
- Operating indicator LED green and object detection LED yellow
- High switching frequency up to 1000 Hz
- Protection class III with reverse polarity, overcurrent, and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- Shock resistance of 30 g and vibration resistance from 10 Hz to 55 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling systems
- Safety and monitoring in machinery
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Durable IP67 housing minimizes environmental damage and extends product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GTB6SP-22A1116EZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
