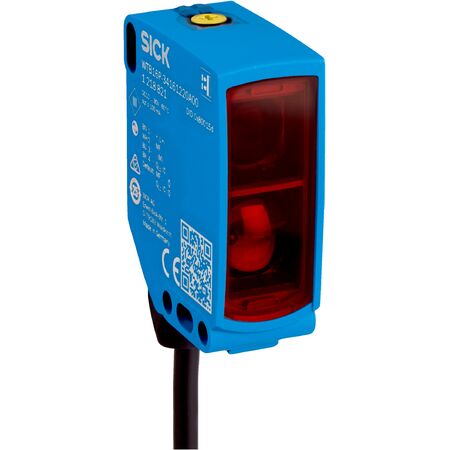

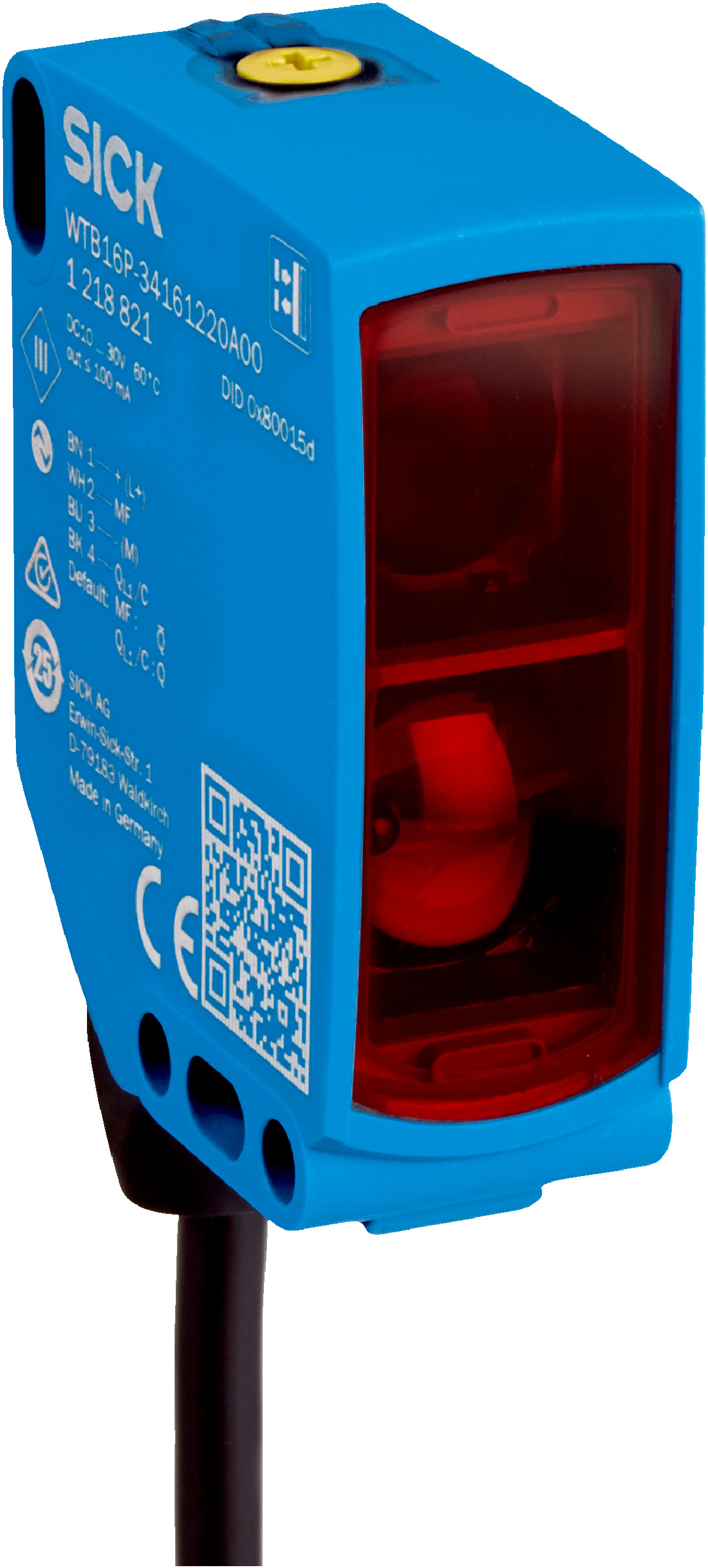

Photoelectric Proximity Sensor | Adjustable Sensing Range 10-500mm | LineSpot Technology | IP66/IP67/IP69 Rated | by SICK
The WTL16P-1H161120A00 photoelectric proximity sensor features an adjustable sensing range from 10 mm to 500 mm, utilizing advanced LineSpot technology for precise object detection. With a robust IP66/IP67/IP69 rated housing and a fast response time of ≤ 500 µs, this sensor is perfect for industrial automation applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 10 mm to 500 mm adjustable
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: 3 mm x 30 mm at 200 mm distance
- Switching outputs: 2 complementary push-pull (PNP/NPN), light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA without load
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Cable: 4-wire, 2 m length, PVC
- Housing material: Plastic VISTAL®
- Display LEDs: BluePilot sensing range indicator, green power/IO-Link indicator, yellow object detection status
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression using LineSpot technology
- Adjustable sensing range from 10 mm to 500 mm with recommended range 150 mm to 250 mm
- Visible red light PinPoint LED with line-shaped light spot (3 mm x 30 mm at 200 mm)
- BluePilot Teach-Turn adjustment for easy sensing range setting
- IO-Link interface for sensor parameter configuration and Smart Task functions
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and configuration, including IO-Link setup for optimal performance.
Applications
- Industrial automation for object detection
- Detecting perforated objects
- Background suppression sensing in manufacturing processes
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 30 mA)
- Robust design minimizes environmental impact through durability and reduced maintenance
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTL16P-1H161120A00 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
