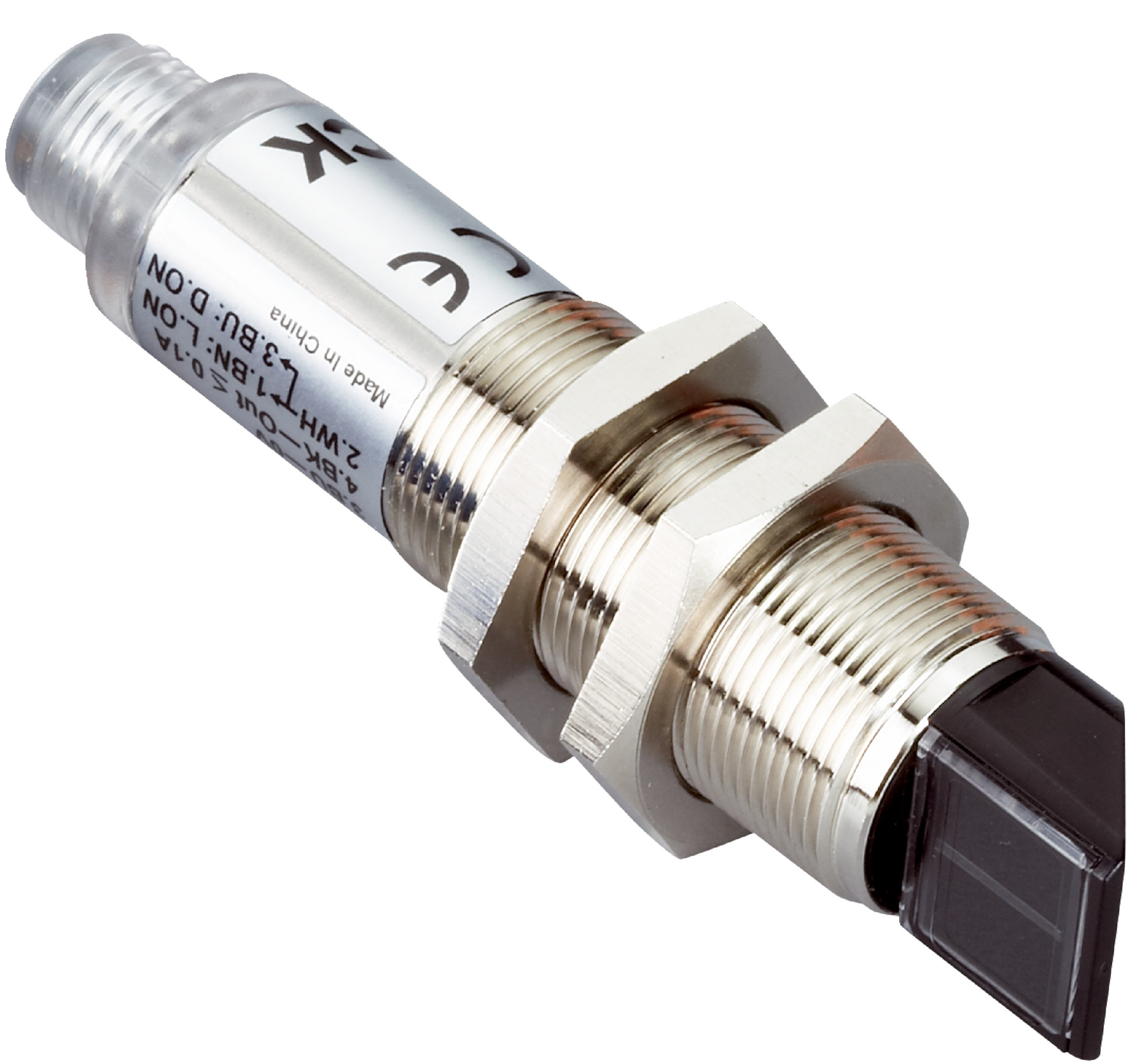

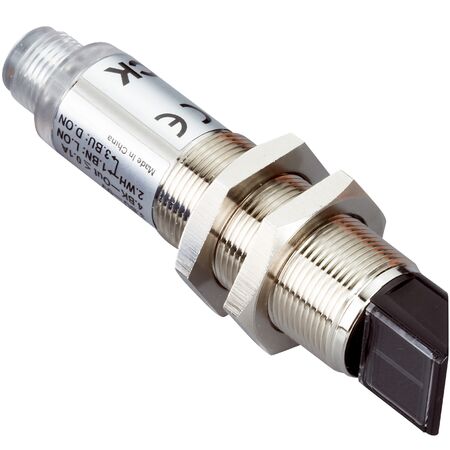

Photoelectric Proximity Sensor | Background Blanking | 130mm Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor VTF180-2P41114 is designed for precise object detection in industrial automation. With a sensing range of 1 mm to 130 mm and a visible red LED light source, it ensures reliable performance in manufacturing and safety applications. Built with a robust IP67-rated housing, this sensor operates efficiently in temperatures from -25 °C to +55 °C, making it ideal for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background blanking
- Sensing range: 1 mm to 130 mm
- Light source: Visible red LED, 645 nm wavelength
- Adjustment: Potentiometer, 270° for sensing range
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Enclosure rating: IP67
- Housing material: Nickel-plated brass and polycarbonate
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 18mm x 76.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking
- Visible red light LED with wavelength of 645 nm
- Focused optics for precise detection
- Radial optical axis with sensing range up to 130 mm
- Potentiometer adjustment with 270° range
- Light/dark switching mode with PNP output
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust metal housing with IP67 enclosure rating
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable metal housing extends product lifespan reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTF180-2P41114 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
