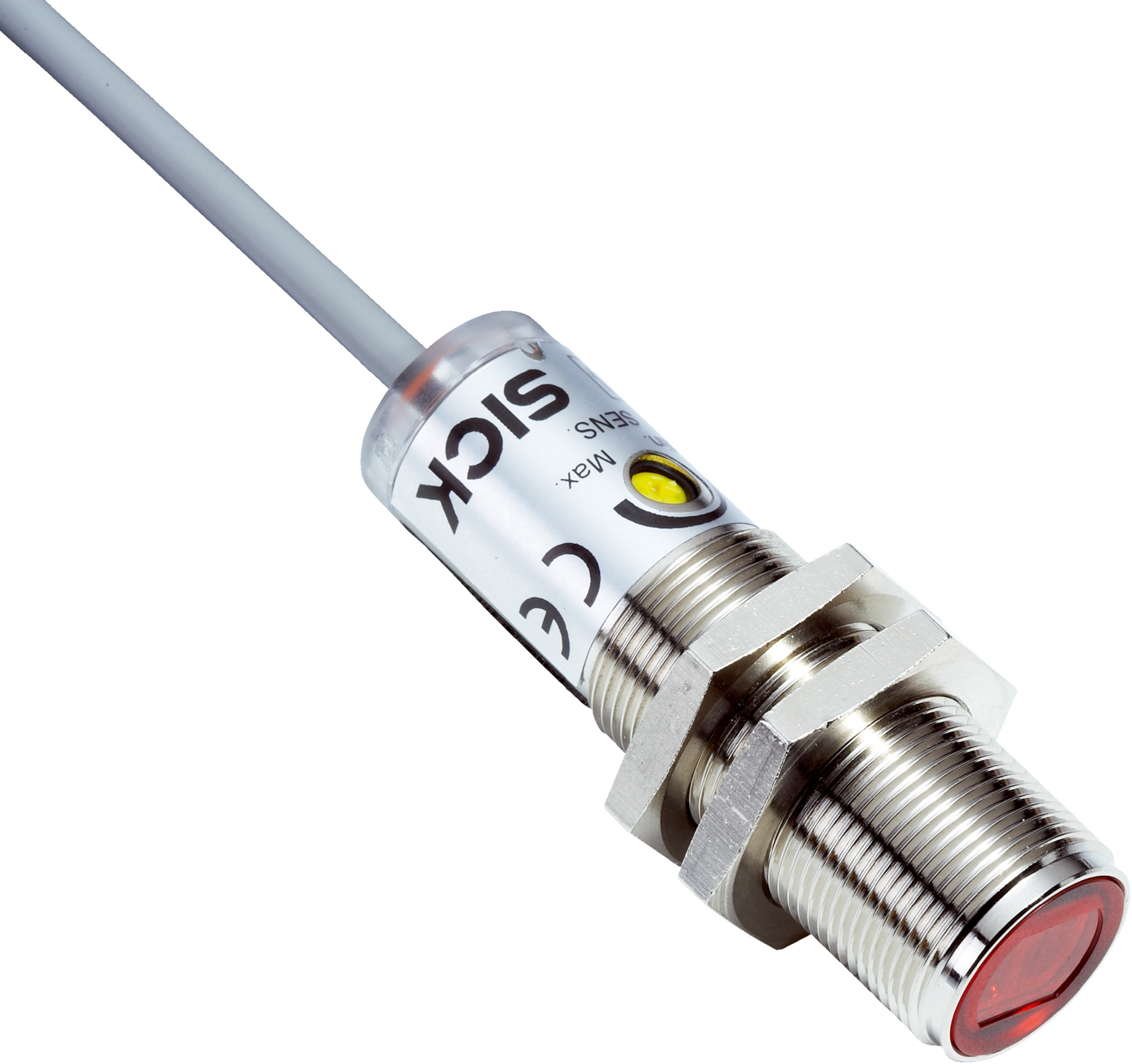

Photoelectric Proximity Sensor | Background Blanking | Infrared LED | IP67 Rated | by SICK
The Photoelectric Proximity Sensor VTF180-2P41112S03 features background blanking and an infrared LED light source, making it ideal for precise object detection in industrial automation. With a robust IP67 rated housing and a high switching frequency of 1,000 Hz, this sensor ensures reliable performance in manufacturing and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background blanking
- Sensing range: 1 mm to 100 mm (max 140 mm)
- Light source: Infrared LED
- Light spot size: Ø 8 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP with light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Metal (nickel-plated brass) and PC
- Optics material: Plastic (PMMA)
- Weight: 95 g
- Dimensions (H x L x W): 18mm x 62.5mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking
- Focused optics for precise detection
- Infrared LED light source
- Adjustable sensing range via potentiometer (270°)
- Axial optical axis with cylindrical M18 housing
- High switching frequency of 1,000 Hz
- IP67 rated for dust and water protection
- Robust metal housing with nickel-plated brass and PC
- Cable connection with 2 m PVC cable
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTF180-2P41112S03 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
