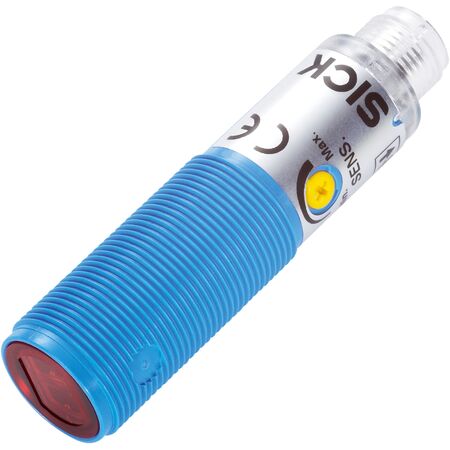

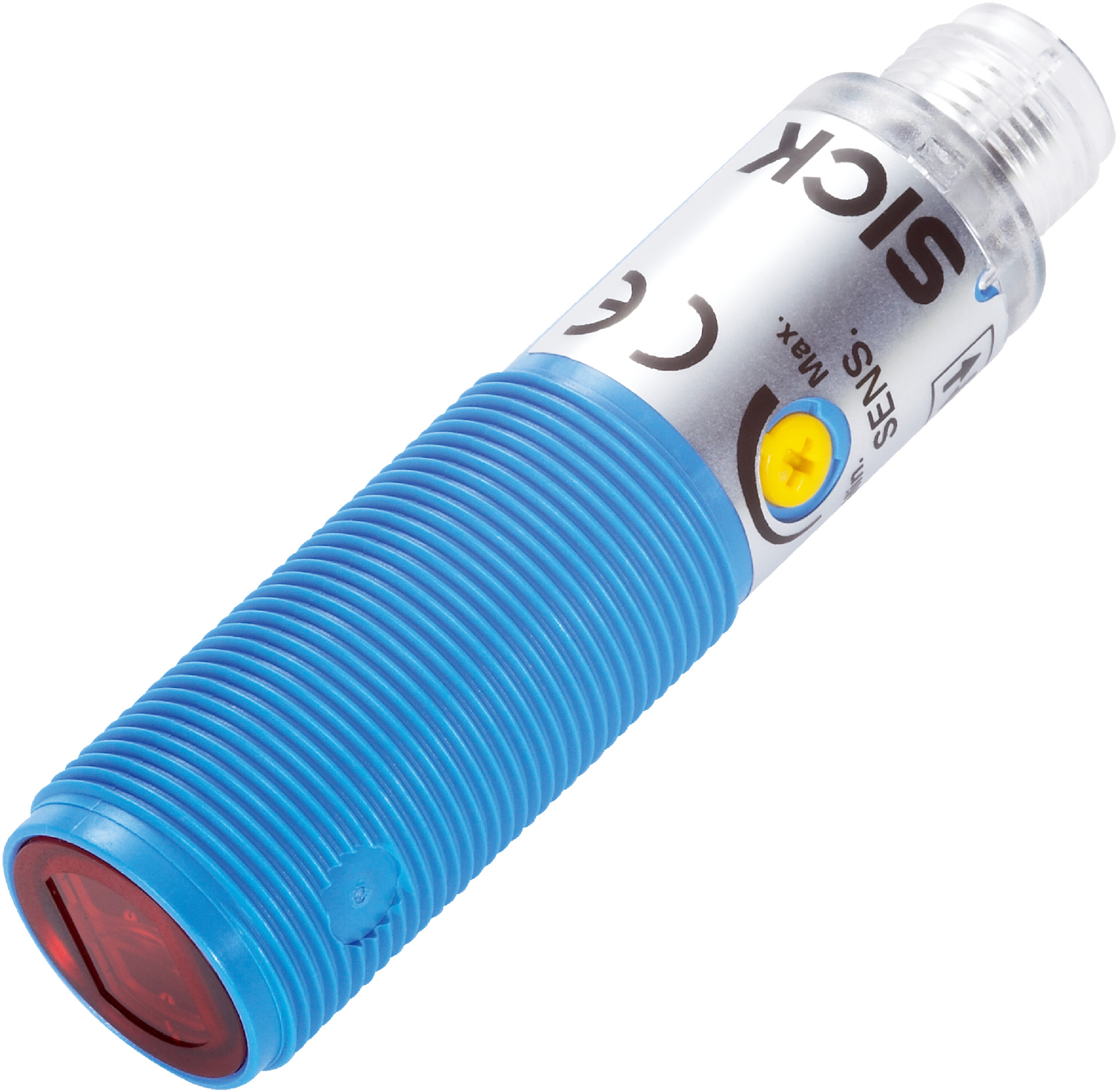

Photoelectric Proximity Sensor VTF180-2P42417 | Background Blanking | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The Photoelectric Proximity Sensor VTF180-2P42417 is designed for precise object detection in industrial automation. With a sensing range of 1 mm to 100 mm and a high switching frequency of 1,000 Hz, it ensures reliable performance in manufacturing and material handling applications. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background blanking
- Sensing range: 1 mm to 100 mm (max 140 mm)
- Light source: Visible red LED, 645 nm wavelength
- Light spot size: Ø 8 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic PBT/PC, optics plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Weight: 18 g
- Dimensions (H x L x W): 18mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking
- Visible red light LED with wavelength of 645 nm
- Focused optics for precise detection
- Adjustable sensing range via 270° potentiometer
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Compact cylindrical housing with M18 x 1 thread
- Light/dark switching selectable via control cable
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK VTF180-2P42417 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
