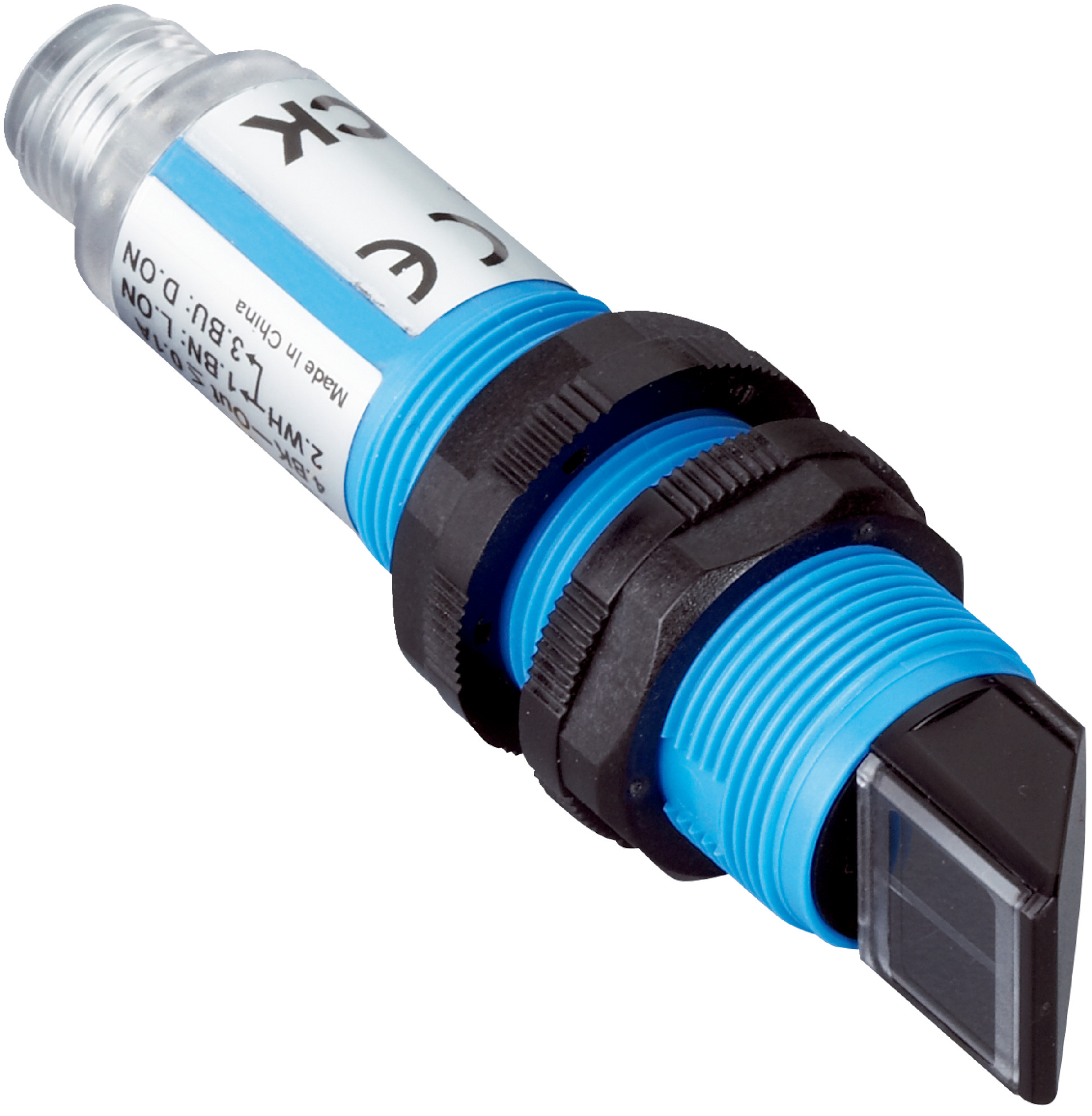

Photoelectric Proximity Sensor VTF180-2P42419 | Background Blanking | IP67 Rated | 1 mm to 100 mm Sensing Range | by SICK
The Photoelectric Proximity Sensor VTF180-2P42419 is designed for precise object detection in industrial automation, featuring a sensing range of 1 mm to 100 mm and a visible red LED light source. With a high switching frequency of 1,000 Hz and an IP67 rated enclosure, it ensures reliable performance in challenging environments, making it ideal for manufacturing process control and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background blanking
- Sensing range: 1 mm to 100 mm
- Light source: Visible red LED, 645 nm wavelength
- Adjustment: Potentiometer, 270° for sensing range
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 18mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking
- Visible red light LED with wavelength of 645 nm
- Focused optics for precise sensing
- Sensing range from 1 mm to 100 mm
- Potentiometer adjustment with 270° range
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Robotics and material handling
- Safety and presence detection in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces waste from replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms and conditions.
Available Now
The SICK VTF180-2P42419 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
