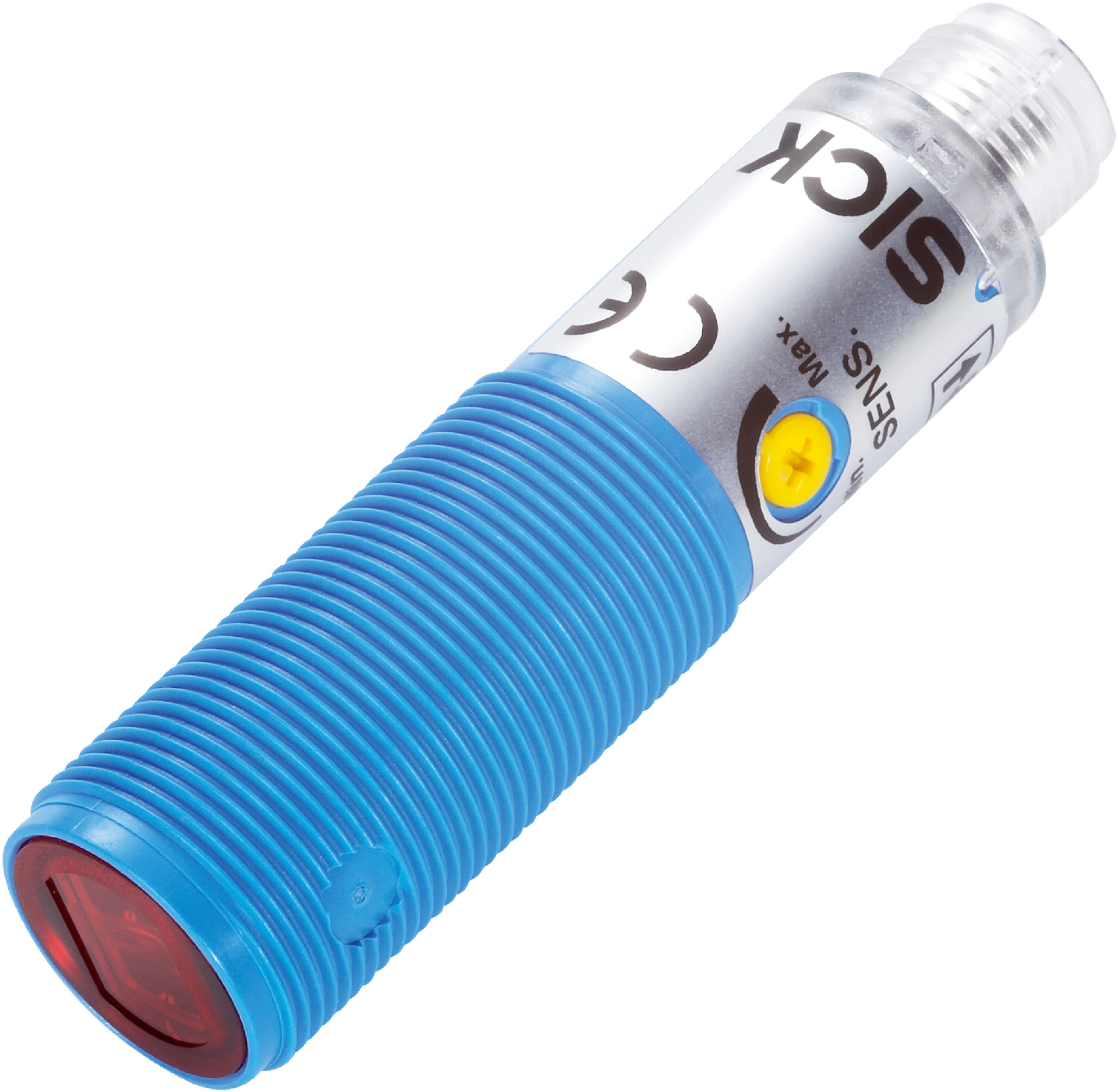

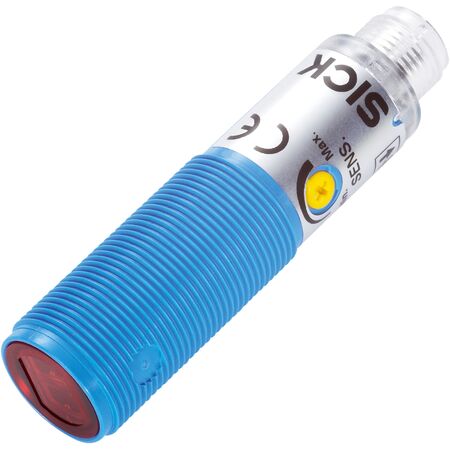

Photoelectric Proximity Sensor VTF180-2N42417 | Background Blanking | IP67 Rated | Fast Response Time | by SICK
The VTF180-2N42417 Photoelectric Proximity Sensor is designed for industrial automation, featuring background blanking functionality and a sensing range of 1 mm to 100 mm. With a fast response time of ≤ 0.5 ms and an IP67 rated enclosure, this sensor is perfect for precise object detection in challenging environments, ensuring reliable performance in machine safety and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background blanking
- Sensing range: 1 mm to 100 mm (max 140 mm)
- Light source: LED, visible red light at 645 nm wavelength
- Adjustment: Potentiometer 270° for sensing range
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via control cable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic PBT/PC
- Optics material: Plastic PMMA
- Operating temperature: -25°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 18mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking functionality
- Visible red light LED with wavelength of 645 nm
- Focused optics with adjustable sensing range via potentiometer
- Cylindrical plastic housing with M18 x 1 thread diameter
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Selectable light/dark switching mode via control cable
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and sensor alignment according to manufacturer guidelines.
Applications
- Industrial automation for object detection
- Background blanking applications
- Machine safety and control systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable plastic housing reduces material waste
- Long service life with MTTFD of 1,999 years enhances sustainability
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK VTF180-2N42417 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
