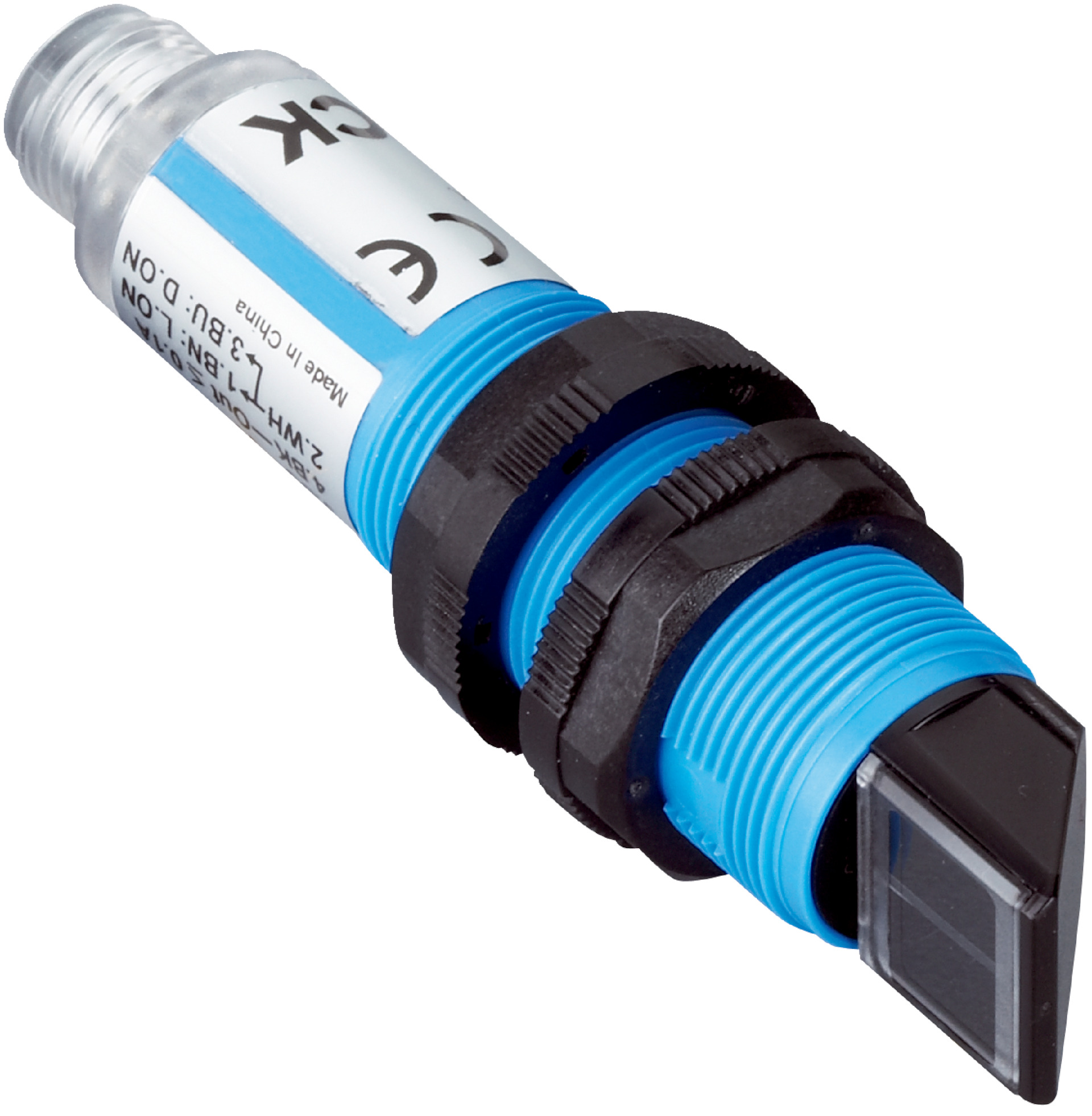

Photoelectric Proximity Sensor VTF180-2F32419 | Background Blanking | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor VTF180-2F32419 is designed for precise object detection in industrial automation, featuring a sensing range of 1 mm to 130 mm and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing process control and robotics applications, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background blanking
- Sensing range: 1 mm to 130 mm
- Light source: LED, visible red light at 645 nm wavelength
- Light spot size: Ø 8 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 18mm x 84mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking
- Visible red light LED with wavelength of 645 nm
- Focused optics for precise detection
- Radial optical axis with sensing range up to 130 mm
- Potentiometer adjustment with 270° sensing range control
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Compact cylindrical plastic housing (PBT/PC) with plastic optics (PMMA)
- Male M12 4-pin connector for easy connection
- Wide ambient operating temperature range from -25 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Robotics and material handling
- Safety and presence detection in machinery
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VTF180-2F32419 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control.
