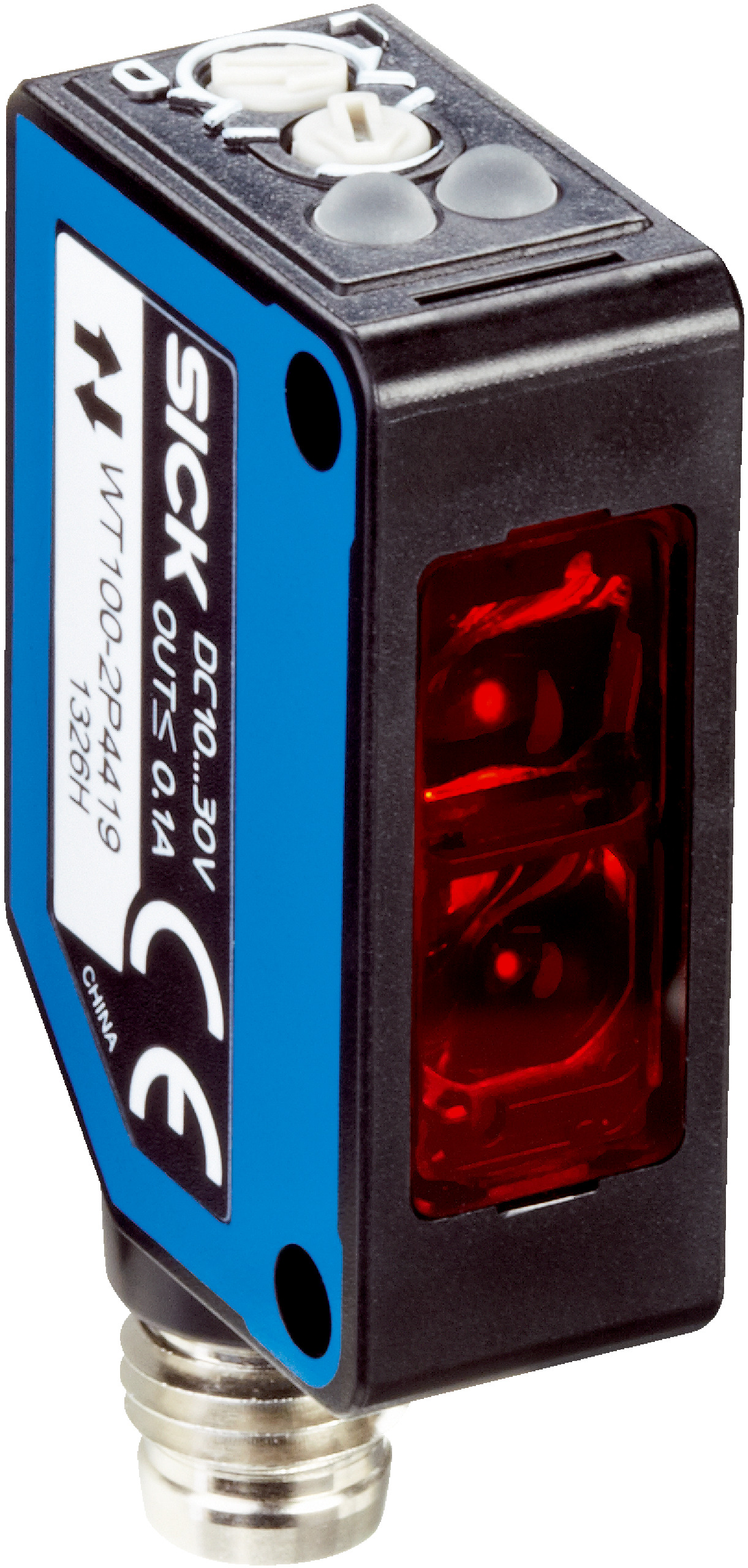

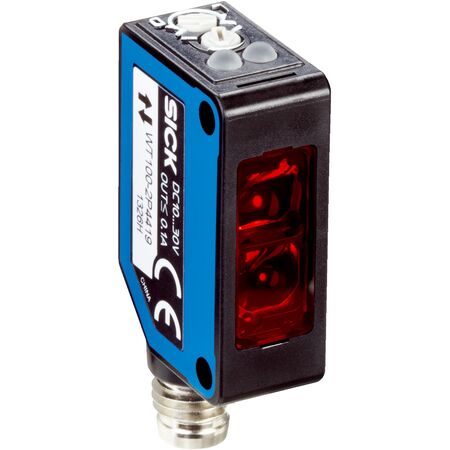

Photoelectric Proximity Sensor WT100-2N3419 | Background Blanking | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor WT100-2N3419 is designed for industrial automation, featuring background blanking functionality and a sensing range of 10 mm to 100 mm. With a high switching frequency of 1,000 Hz and a fast response time of ≤ 0.5 ms, this sensor is perfect for manufacturing process control and robotics applications. Its IP67 rated enclosure ensures durability in harsh environments, making it a reliable choice for object detection and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background blanking
- Sensing range: 10 mm to 100 mm (max 4 mm to 140 mm)
- Light source: Visible red LED, wavelength 632 nm
- Light spot size: Ø 8 mm at 90 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Connector M8, 3-pin
- Circuit protection: Types A, B, D
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -40 °C to +70 °C
- Includes mounting bracket BEF-W100-A
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking functionality
- Rectangular housing design with visible red LED light source
- Adjustable sensing range via potentiometer
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Connector M8, 3-pin connection type
- Selectable light/dark switching mode
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable housing materials extend product lifespan reducing waste
- Compliance with China-RoHS ensures reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WT100-2N3419 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
