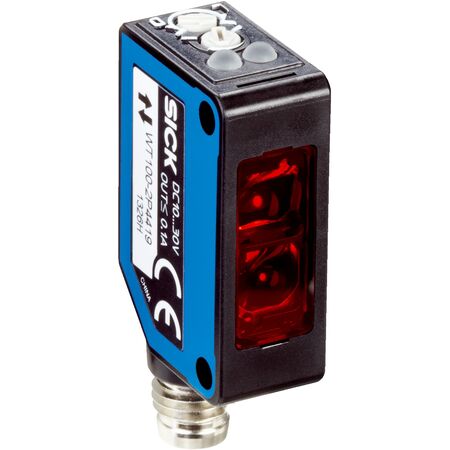

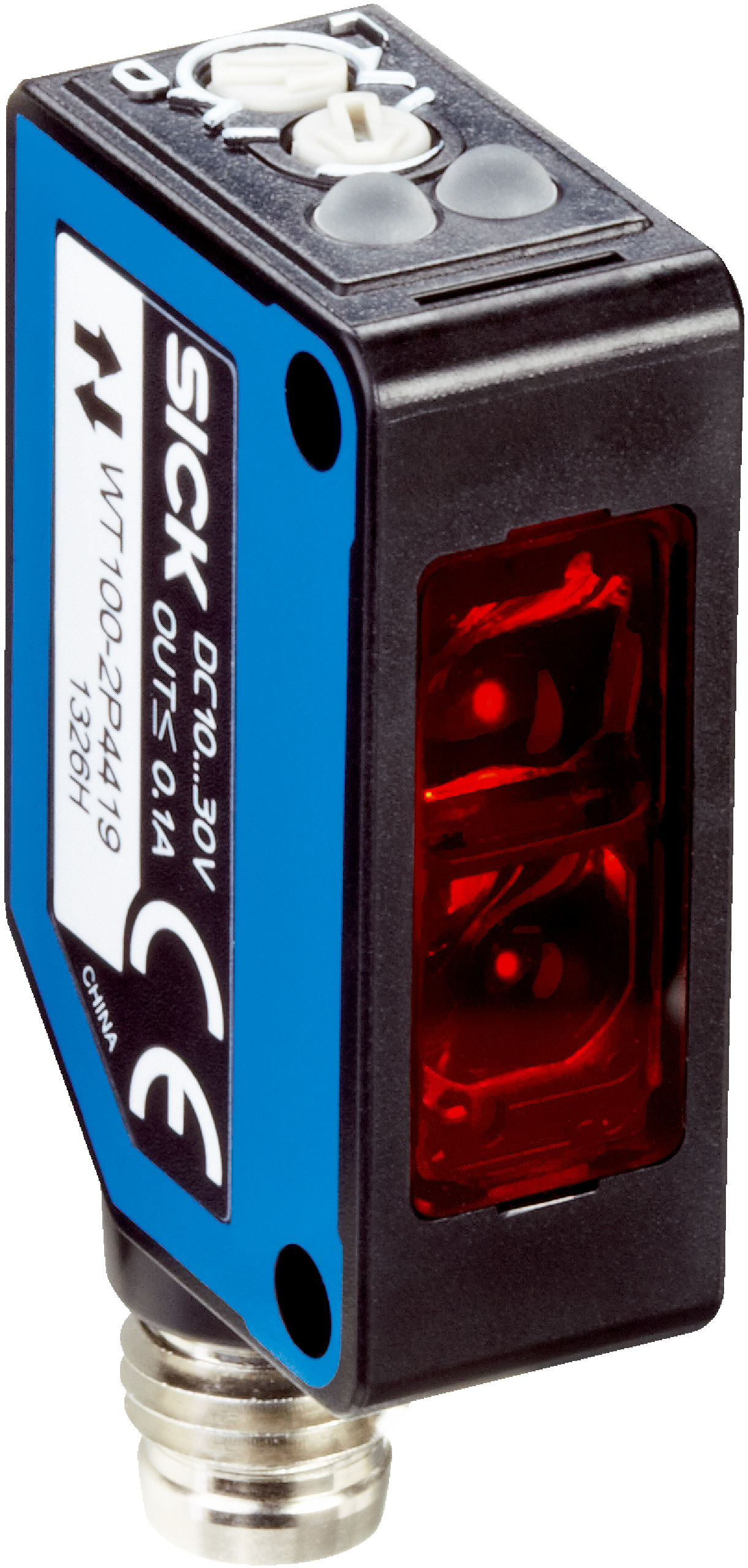

Photoelectric Proximity Sensor WT100-2P4419 | Background Blanking | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Proximity Sensor WT100-2P4419 is designed for industrial automation, featuring background blanking functionality and a sensing range of 10 mm to 100 mm. With a high switching frequency of 1,000 Hz and a fast response time of ≤ 0.5 ms, this sensor is perfect for manufacturing process control and robotics applications. Its robust IP67 rated enclosure ensures durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background blanking
- Sensing range: 10 mm to 100 mm (max 4 mm to 140 mm)
- Light source: Visible red LED, wavelength 632 nm
- Light spot size: Ø 8 mm at 90 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male M8, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background blanking functionality
- Rectangular housing design with visible red LED light source
- Adjustable sensing range via potentiometer
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Robust plastic housing made of ABS/PC/POM and optics material PMMA
- Selectable light/dark switching mode via rotary switch
- Includes mounting bracket BEF-W100-A
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper connection and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WT100-2P4419 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
