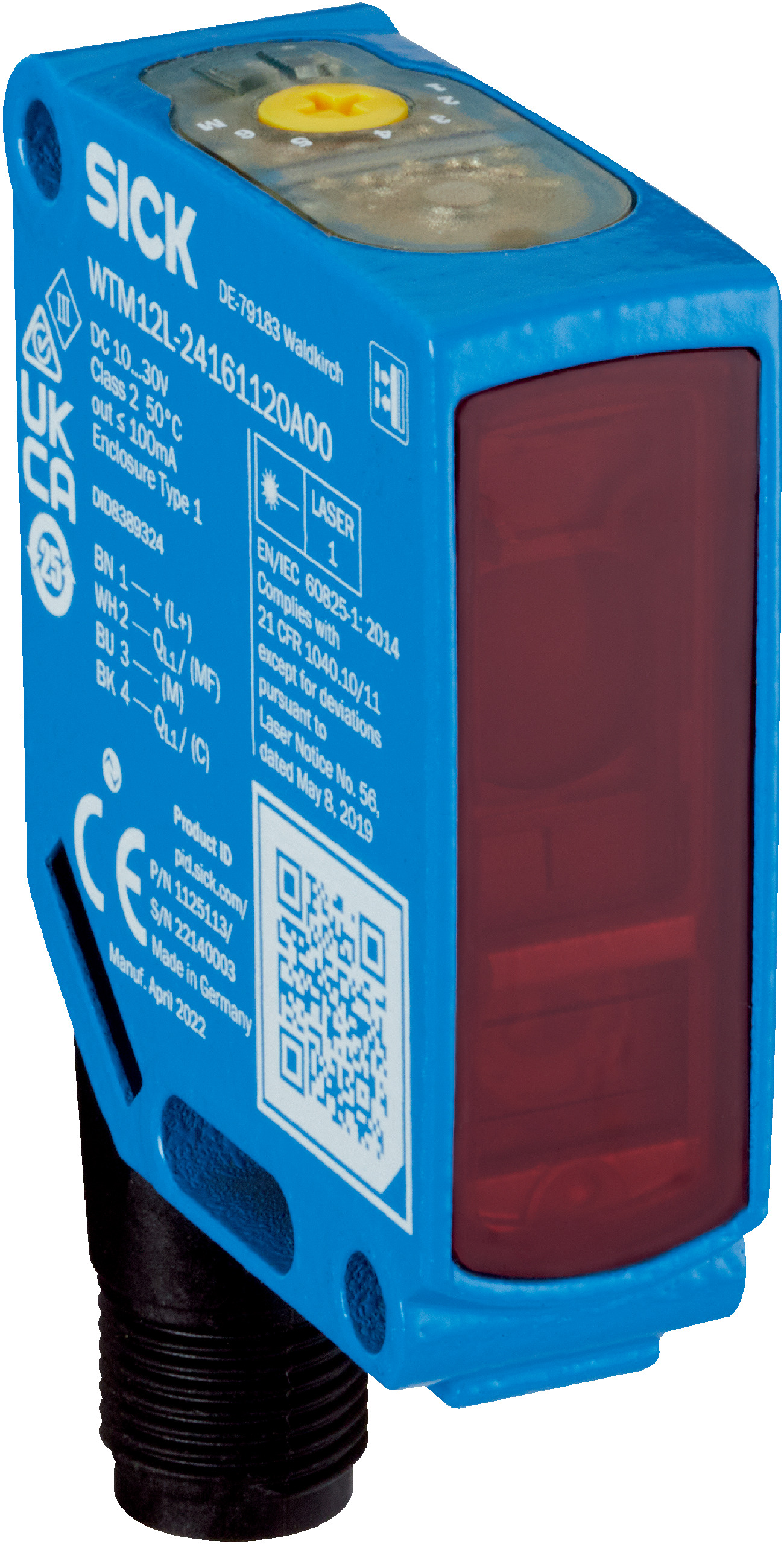

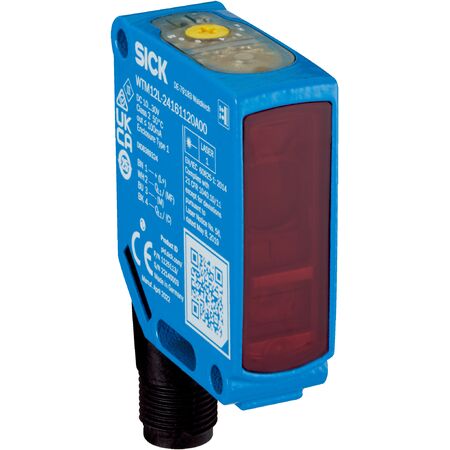

Photoelectric Proximity Sensor | Background & Foreground Suppression | 1200mm Sensing Range | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Proximity Sensor WTM12L-24161120A00 is designed for precise object detection in industrial automation, featuring a sensing range of 0 mm to 1200 mm with background and foreground suppression. Built for high-speed applications, it offers robust IP66/IP67/IP69 protection and a durable metal housing, ensuring reliability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background and foreground suppression
- Sensing range: 0 mm to 1200 mm depending on mode
- Distance resolution: 1 mm
- Repeatability: 0.1 mm to 6 mm depending on mode
- Laser class: 1
- Wavelength: 655 nm
- Pulse duration: 4 µs
- Maximum pulse power: < 6.74 mW
- Average service life: 50,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 14 mA at 24 V
- Digital outputs: 2 complementary push-pull PNP/NPN with light/dark switching
- Response time: ≤ 500 µs to 15 ms depending on mode
- Switching frequency: up to 1000 Hz depending on mode
- Protection class: III
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -20°C to +55°C
- Storage temperature: -40°C to +70°C
- Housing material: Metal zinc diecast
- Front screen: Plastic PMMA
- Connector: Male M12, 4-pin
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 50mm x 43mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background and foreground suppression
- MultiMode operation including background suppression, foreground suppression, two-point teach-in, two independent switching points, window, and manual/measurement application select
- Sensing range from 0 mm to 1200 mm depending on mode
- Distance value output via IO-Link with 1 mm resolution and 20 ms update rate
- Visible red laser light source with ellipse-shaped light spot
- Robust metal zinc diecast housing with IP66, IP67, and IP69 protection ratings
- LED indicators for mode, output states, power, IO-Link mode, and object presence
- High shock and vibration resistance
- Configurable digital outputs with push-pull PNP/NPN and light/dark switching
- Smart Task functions including logic and timer functions
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- High-speed object detection
- Detection of small, flat, uneven, shiny, perforated, and poorly remitting objects
- Measurement and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser light source reduces power consumption
- Durable metal housing extends product lifespan, reducing waste
- Complies with environmental standards including China-RoHS and ECOLAB certification
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTM12L-24161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
