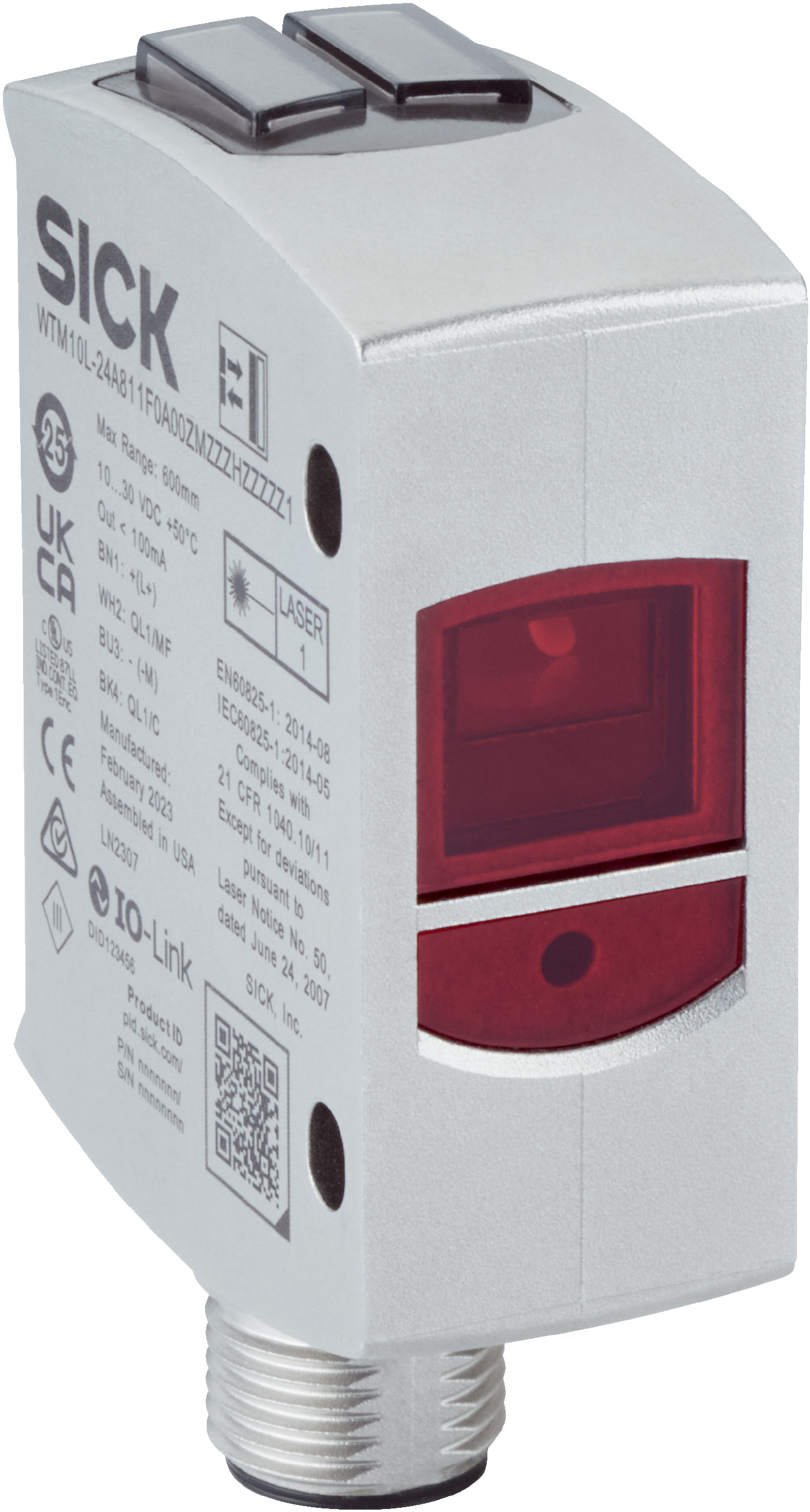

Photoelectric Proximity Sensor | Background & Foreground Suppression | IO-Link Communication | IP67 & IP69 Rated | by SICK
The Photoelectric Proximity Sensor is designed for high-speed object detection, featuring background and foreground suppression for reliable performance. With a sensing range of 25 mm to 400 mm and a resolution of 1 mm, it's perfect for industrial automation applications. Built with a robust stainless steel housing and IP67/IP69 protection, this sensor ensures durability and efficiency in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background and foreground suppression
- Sensing range: 25 mm to 400 mm depending on mode
- Resolution: 1 mm
- Repeatability: < 0.5%
- Accuracy: < 3%
- Light source: Visible red laser, 655 nm wavelength
- Laser class: 1
- Response time: 1.8 ms (Speed mode), 5 ms (Standard), 15 ms (Precision)
- Switching frequency: 275 Hz (Speed), 100 Hz (Standard), 30 Hz (Precision)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA
- Digital outputs: 2 push-pull, PNP/NPN configurable
- Protection class: III
- Enclosure rating: IP67 and IP69
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Communication: IO-Link V1.1 with 3.4 ms cycle time
- Dimensions (H x L x W): 57mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background and foreground suppression
- MultiMode operation with 1-point, 2-point, and manual teach-in
- Adjustable sensing range from 25 mm to 400 mm depending on mode
- Visible red laser light source with point-shaped light spot
- High repeatability and accuracy with resolution of 1 mm
- IO-Link communication for sensor configuration and Smart Task functions
- Robust stainless steel V4A housing with IP67 and IP69 protection
- Dual push-pull digital outputs configurable as PNP/NPN
- Integrated touch display for easy parameter setting
- Comprehensive diagnostic features including device temperature and operating hour counter
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper configuration and compliance with electrical standards.
Applications
- Industrial automation for object detection
- High-speed object detection
- Detection of small, flat, uneven, shiny, poorly remitting, and tilted objects
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser light source reduces power consumption
- Durable stainless steel housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

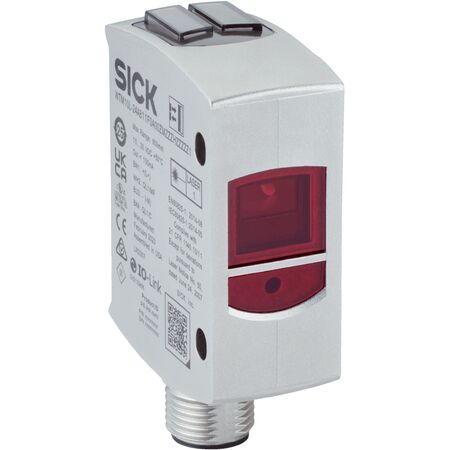

The SICK WTM10L-241612D0A00ZVZZZZZZZZZ1 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
