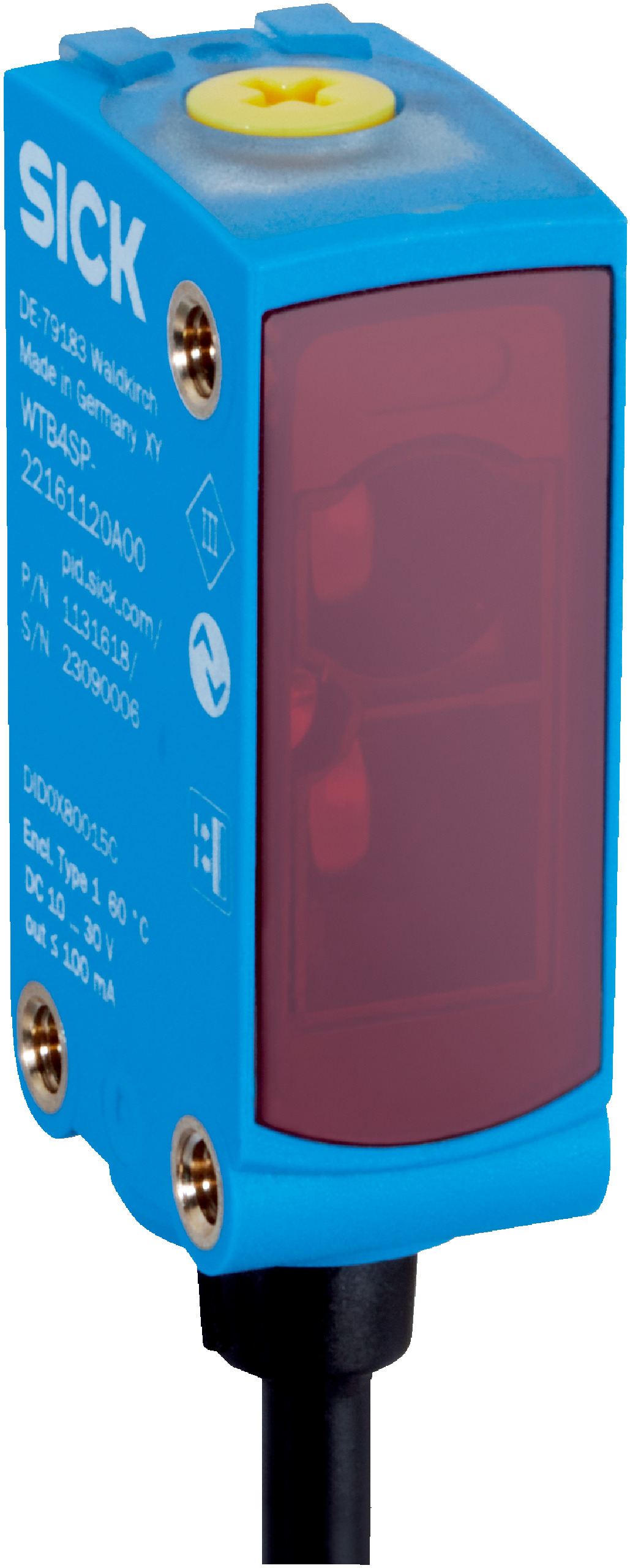

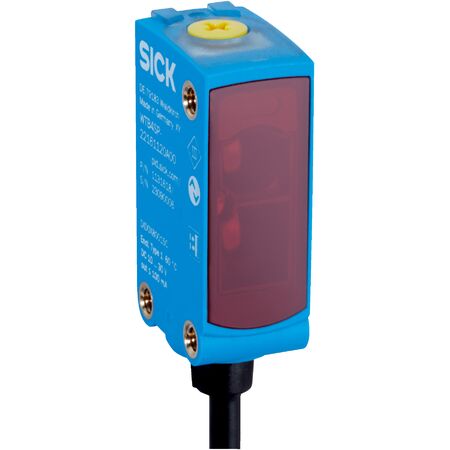

Photoelectric Proximity Sensor | Background & Foreground Suppression | IO-Link Enabled | IP66/IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTM4SP-1H161120A00 is designed for precise object detection in industrial automation. With features like background and foreground suppression, adjustable switching thresholds, and IO-Link connectivity, it ensures high accuracy and repeatability. Ideal for environments requiring reliable distance measurement, this sensor operates efficiently in temperatures from -40 °C to +60 °C, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background and foreground suppression
- MultiMode operation including two-point teach-in and application select manual/measurement
- Adjustable switching thresholds for background and foreground suppression
- Distance value output via IO-Link with 0.1 mm resolution and 20 ms update rate
- PinPoint LED visible red light with 635 nm wavelength and 100,000 hours average service life
- High repeatability and accuracy with typical 5.0 mm accuracy at 10-50 mm distance
- Slim plastic VISTAL® housing with IP66/IP67 protection rating
- Operating temperature range from -40 °C to +60 °C
- LED indicators for mode, output states, power, IO-Link mode, and object presence
- Robust against shock, vibration, and electromagnetic interference
- Cable connection with 2 m length and 4-wire configuration
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure correct configuration and safety compliance.
Applications
- Industrial automation for object detection
- Detection of uneven, shiny, poorly remitting, and tilted objects
- Use in environments requiring precise distance measurement and background suppression
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 20 mA)
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTM4SP-1H161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
