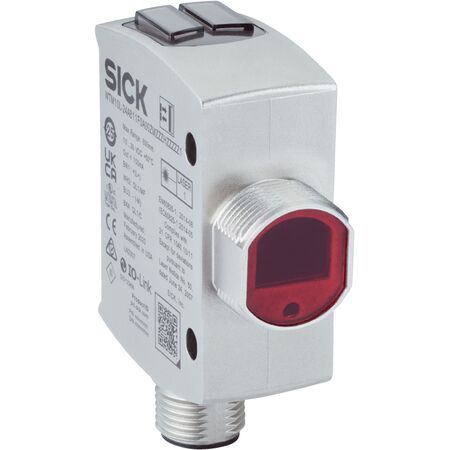

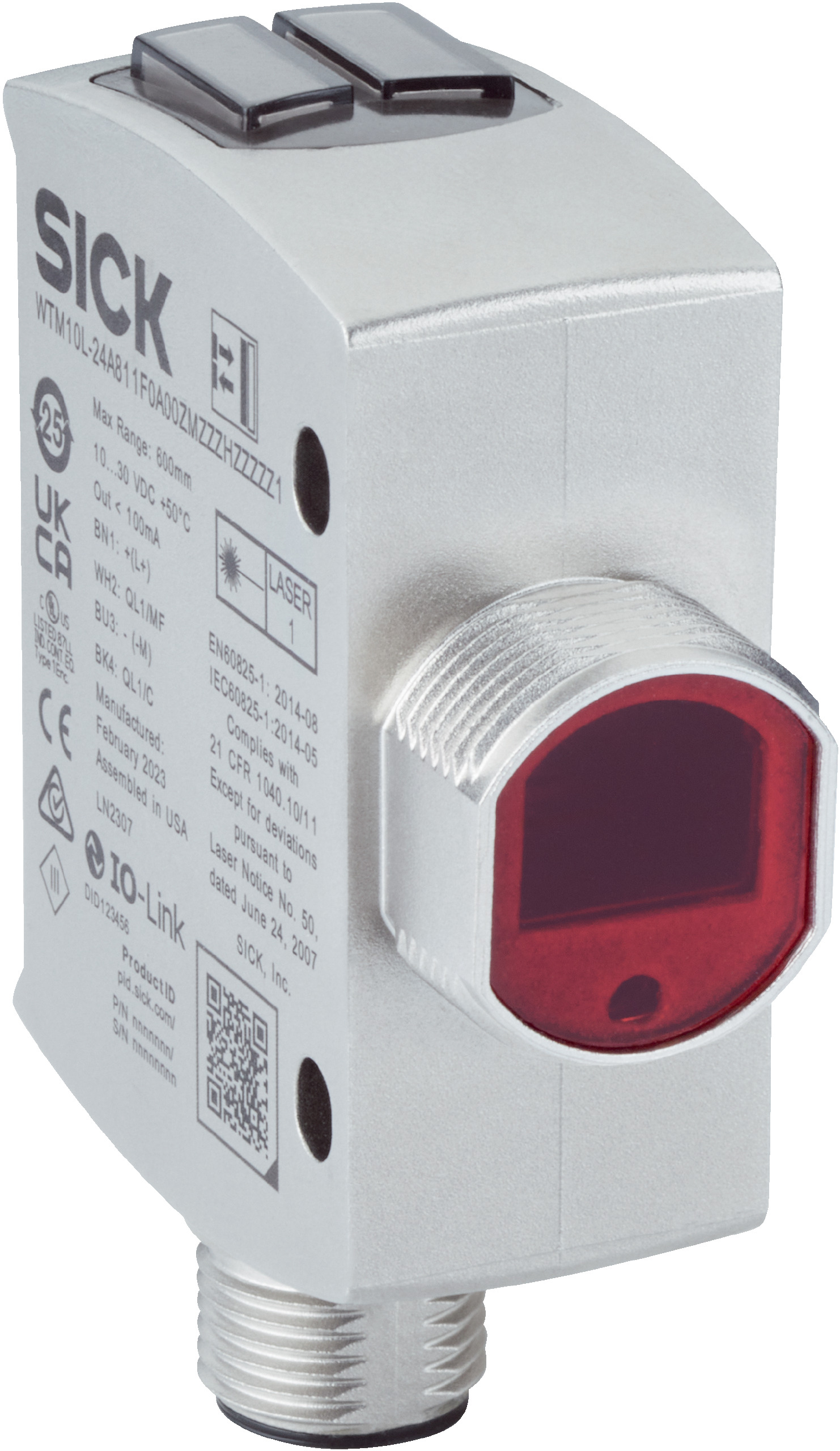

Photoelectric Proximity Sensor | Background & Foreground Suppression | IO-Link Communication | IP67 & IP69 Rated | by SICK
The photoelectric proximity sensor is designed for precise object detection in industrial automation, featuring background and foreground suppression for reliable performance. With a sensing range of 25 mm to 700 mm and a resolution of 1 mm, it’s perfect for detecting small, shiny, or uneven objects. Built with a robust stainless steel housing and IP67/IP69 protection, this sensor ensures durability and longevity in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background and foreground suppression
- Sensing range: 25 mm to 700 mm depending on mode (Speed, Standard, Precision)
- Resolution: 1 mm
- Repeatability: < 0.5%
- Accuracy: < 4%
- Light source: Visible red laser, 655 nm wavelength
- Laser class: 1
- Response time: 1.8 ms (Speed mode), 5 ms (Standard), 15 ms (Precision)
- Switching frequency: 275 Hz (Speed), 100 Hz (Standard), 30 Hz (Precision)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA
- Digital outputs: 2 push-pull, PNP/NPN configurable
- Protection class: III
- Enclosure rating: IP67 and IP69
- Operating temperature: -10°C to +55°C
- Storage temperature: -40°C to +75°C
- Communication: IO-Link V1.1, COM2 (38.4 kBaud)
- Housing material: Stainless steel V4A (1.4404, 316L)
- Connection: Male M12, 4-pin connector
- Dimensions (H x L x W): 57mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background and foreground suppression
- MultiMode operation with 1-point, 2-point, and manual teach-in
- Adjustable sensing range from 25 mm to 700 mm depending on mode
- Visible red laser light source with point-shaped light spot
- High repeatability and accuracy with resolution of 1 mm
- IO-Link communication for sensor configuration and Smart Task functions
- Robust stainless steel V4A housing with IP67 and IP69 protection
- Dual push-pull digital outputs configurable as PNP/NPN
- Integrated touch display for easy parameter setting
- Long service life of 50,000 hours at 25°C
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection
- High-speed object detection
- Detection of small, flat, uneven, shiny, poorly remitting, and tilted objects
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact from damage and disposal
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTM10L-241611D0A00ZWZZZZZZZZZ1 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
