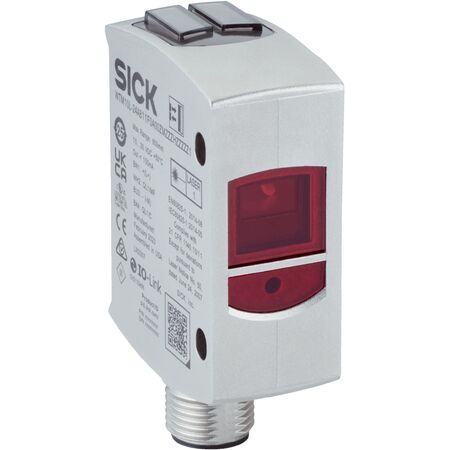

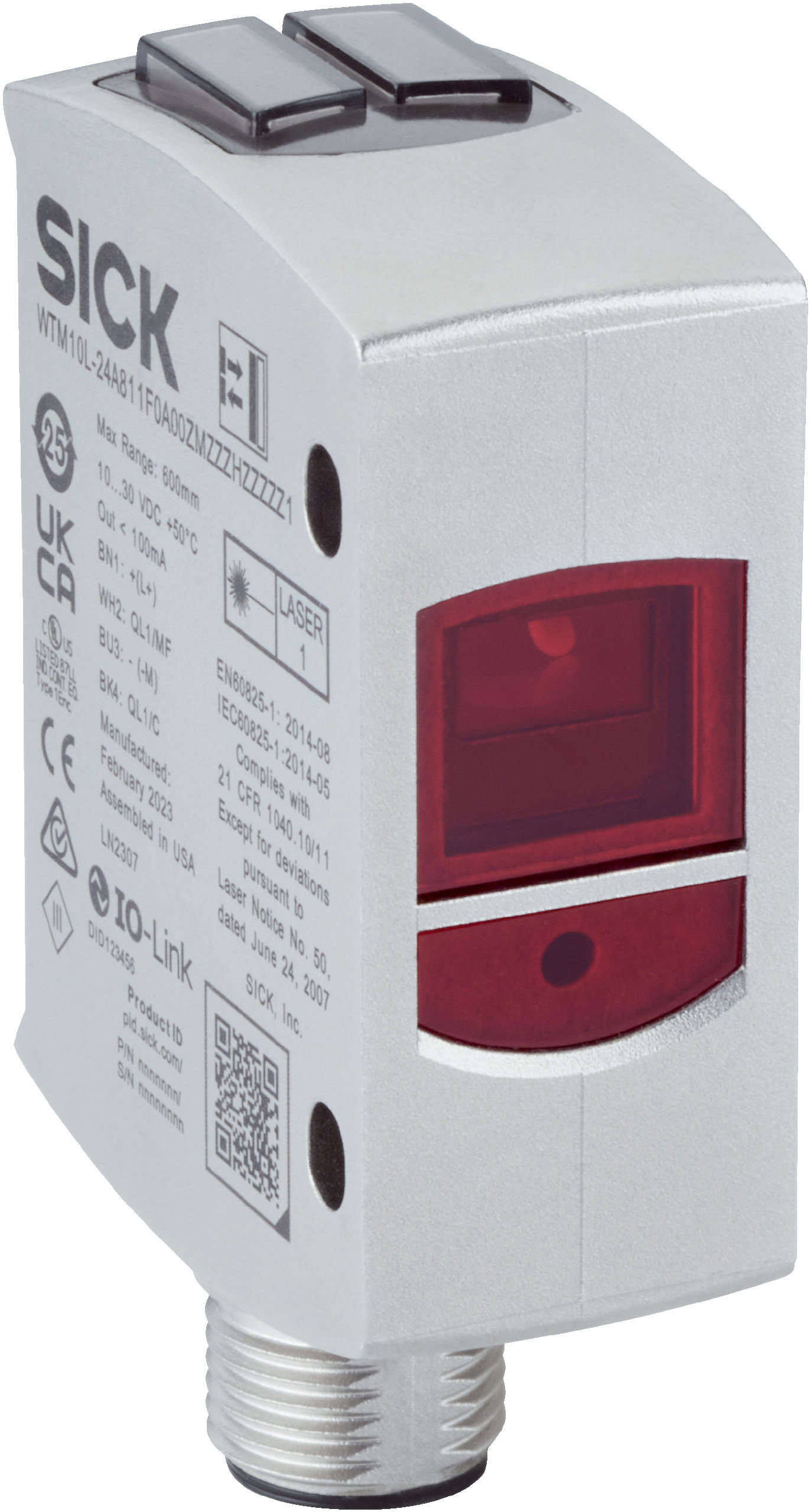

Photoelectric Proximity Sensor | Background & Foreground Suppression | Laser Light Source | IP67 & IP69 Rated | by SICK
The photoelectric proximity sensor is designed for high-speed object detection with background and foreground suppression. Ideal for industrial automation, it features a visible red laser light source and adjustable sensing range up to 700 mm. With high accuracy and repeatability, this sensor is perfect for detecting small, shiny, or uneven objects, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background and foreground suppression
- Sensing range min: 25 mm (Mode 1 - Speed)
- Sensing range max: 700 mm (Mode 3 - Precision)
- Resolution: 1 mm
- Repeatability: < 0.5%
- Accuracy: < 4%
- Light source: Laser, visible red light, wavelength 655 nm
- Beam shape: Point-shaped, Ø 0.4 mm at 250 mm
- Response time: 1.8 ms (Mode 1 - Speed) to 15 ms (Mode 3 - Precision)
- Switching frequency: up to 275 Hz
- Digital outputs: 2 push-pull, PNP/NPN configurable
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA
- Protection class: III
- Enclosure rating: IP67 and IP69
- Operating temperature: -10 °C to +55 °C
- Communication: IO-Link V1.1 with 3.4 ms cycle time
- Dimensions (H x L x W): 57mm x 42mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background and foreground suppression
- MultiMode operation with 1-point, 2-point, and manual teach-in
- Adjustable sensing range up to 700 mm depending on mode
- Visible red laser light source with point-shaped beam
- High repeatability and accuracy with 1 mm resolution
- IO-Link communication for sensor configuration and Smart Task functions
- Robust stainless steel V4A housing with IP67 and IP69 protection
- Dual push-pull digital outputs configurable as PNP/NPN
- Touch display for easy parameter setting
- Complies with laser safety standards IEC 60825-1
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and compliance with safety standards.
Applications
- Industrial automation for object detection
- High-speed object detection
- Detection of small, flat, uneven, shiny, poorly remitting, and tilted objects
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable stainless steel housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTM10L-241611D0A00ZVZZZZZZZZZ1 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
