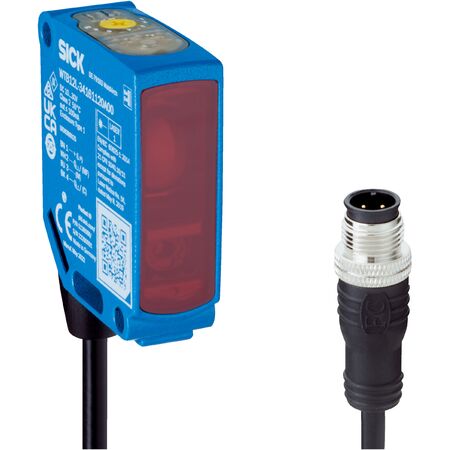

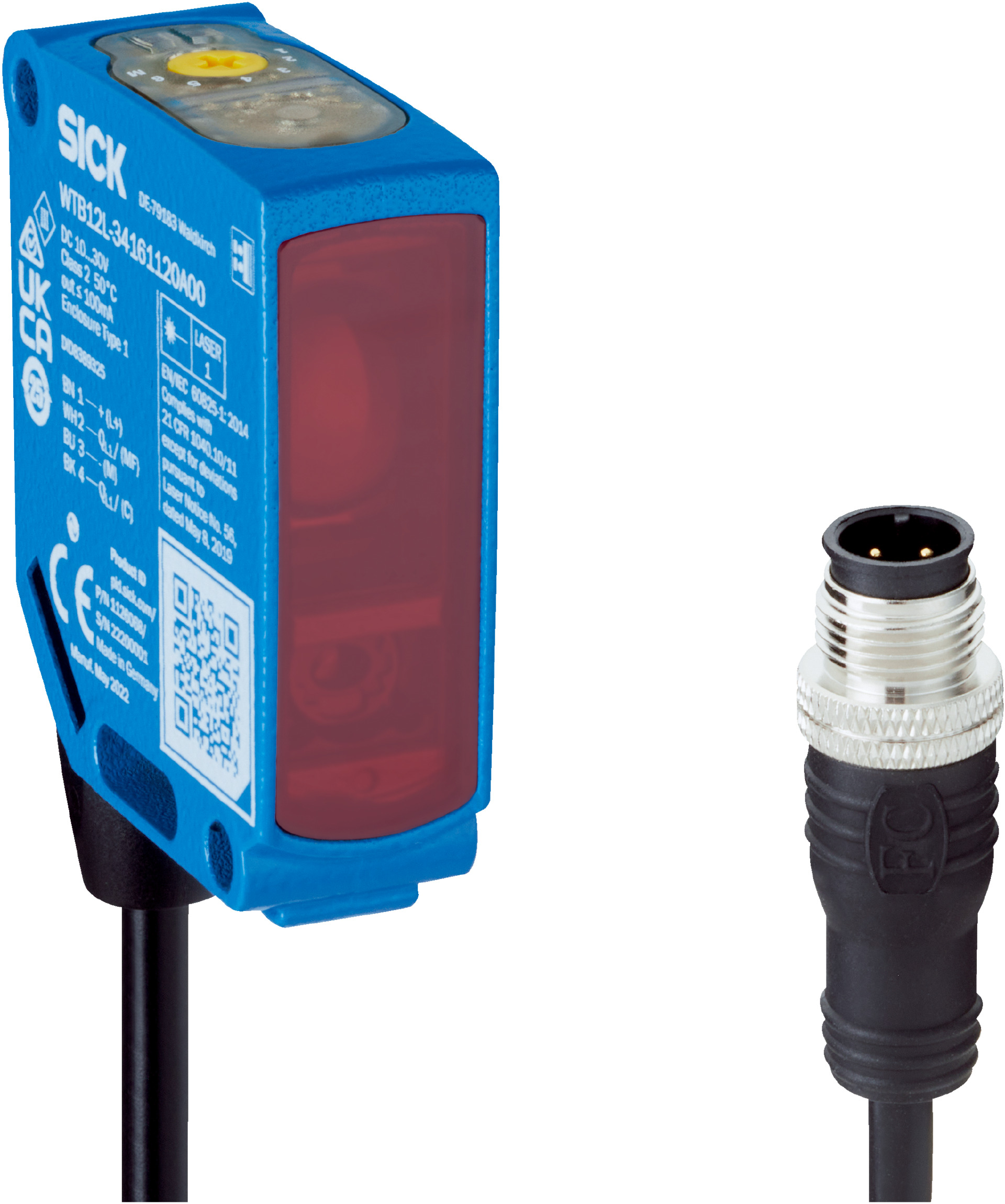

Photoelectric Proximity Sensor | Background & Foreground Suppression | MultiMode Operation | IP66/IP67/IP69 Rated | by SICK
The Photoelectric Proximity Sensor WTM12L-34161120A00 is designed for precise object detection in industrial automation, featuring background and foreground suppression capabilities. With a sensing range of up to 1200 mm and robust IP66/IP67/IP69 protection, it ensures high accuracy and reliability in harsh environments. Ideal for detecting small, shiny, or uneven objects, this sensor is perfect for high-speed manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 50mm x 43mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background and foreground suppression
- MultiMode operation including two-point teach-in and application select manual/measurement
- Sensing range from 0 mm to 1200 mm depending on mode
- Visible red laser light source with ellipse-shaped light spot
- High accuracy and repeatability with distance value output via IO-Link
- Robust metal zinc diecast housing with IP66, IP67, and IP69 protection ratings
- BluePilot teach-turn adjustment and configurable sensor parameters via IO-Link
- Dual complementary push-pull digital outputs with light/dark switching
- High shock and vibration resistance suitable for harsh environments
- Comprehensive diagnostic features including device temperature and operating hour counter
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance, especially for IO-Link integration and laser safety.
Applications
- Industrial automation for object detection
- Detection of small, flat, shiny, uneven, perforated, and poorly remitting objects
- High-speed object detection in manufacturing processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient laser light source reduces power consumption
- Durable metal housing extends product life and reduces waste
- High reliability minimizes downtime and replacement frequency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTM12L-34161120A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
