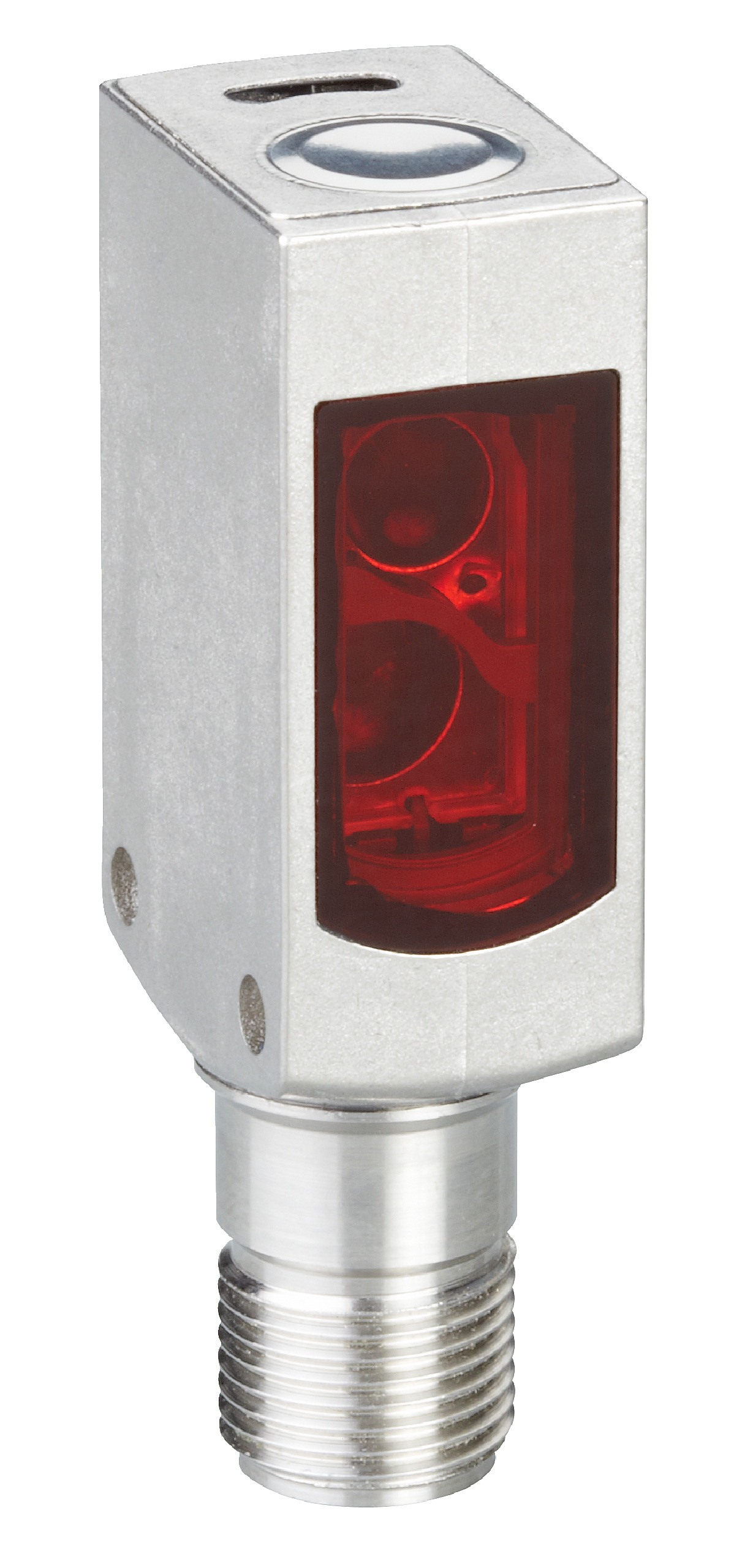

Photoelectric Proximity Sensor | Background Suppression | 10mm to 180mm Sensing Range | Stainless Steel Housing | by SICK
The Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 10 mm to 180 mm and a background suppression capability. With a durable stainless steel housing and a fast response time of under 0.5 ms, it's perfect for hygienic washdown zones and machine safety applications, ensuring reliable object detection in harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor | Background Suppression | 10mm to 180mm Sensing Range | Stainless Steel Housing | by SICK
Brand: SICK
SKU: 1097823
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, IO-Link photoelectric sensor, Stainless steel proximity sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 10 mm to 180 mm
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP digital output, light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +70 °C
- Connection: Cable with M12 male connector, 4-pin, 150 mm length
- Housing material: Stainless steel V4A (1.4404, 316L)
- Front screen material: Plastic, PMMA
- Cable material: Plastic, PVC
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 10 mm to 180 mm
- PinPoint LED visible red light with 650 nm wavelength
- Single teach-in button for easy adjustment
- Housing designed for washdown environments
- Metal housing made of stainless steel V4A (1.4404, 316L)
- IP66, IP67, IP68, IP69K rated enclosure for harsh conditions
- Digital PNP output with light/dark switching mode
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- IO-Link communication interface with 38.4 kBaud data rate
- Cable with M12 male connector, 4-pin, 150 mm length
- Operating temperature range from -30 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Hygienic and washdown zones
- Machine safety and process control
- Factory and production line monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable stainless steel housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

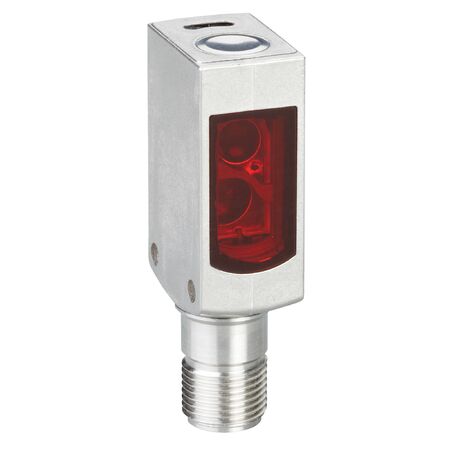

The SICK WTB4SC-3P3462VA00 photoelectric sensor is available for immediate purchase, ideal for industrial automation and hygienic washdown applications.
