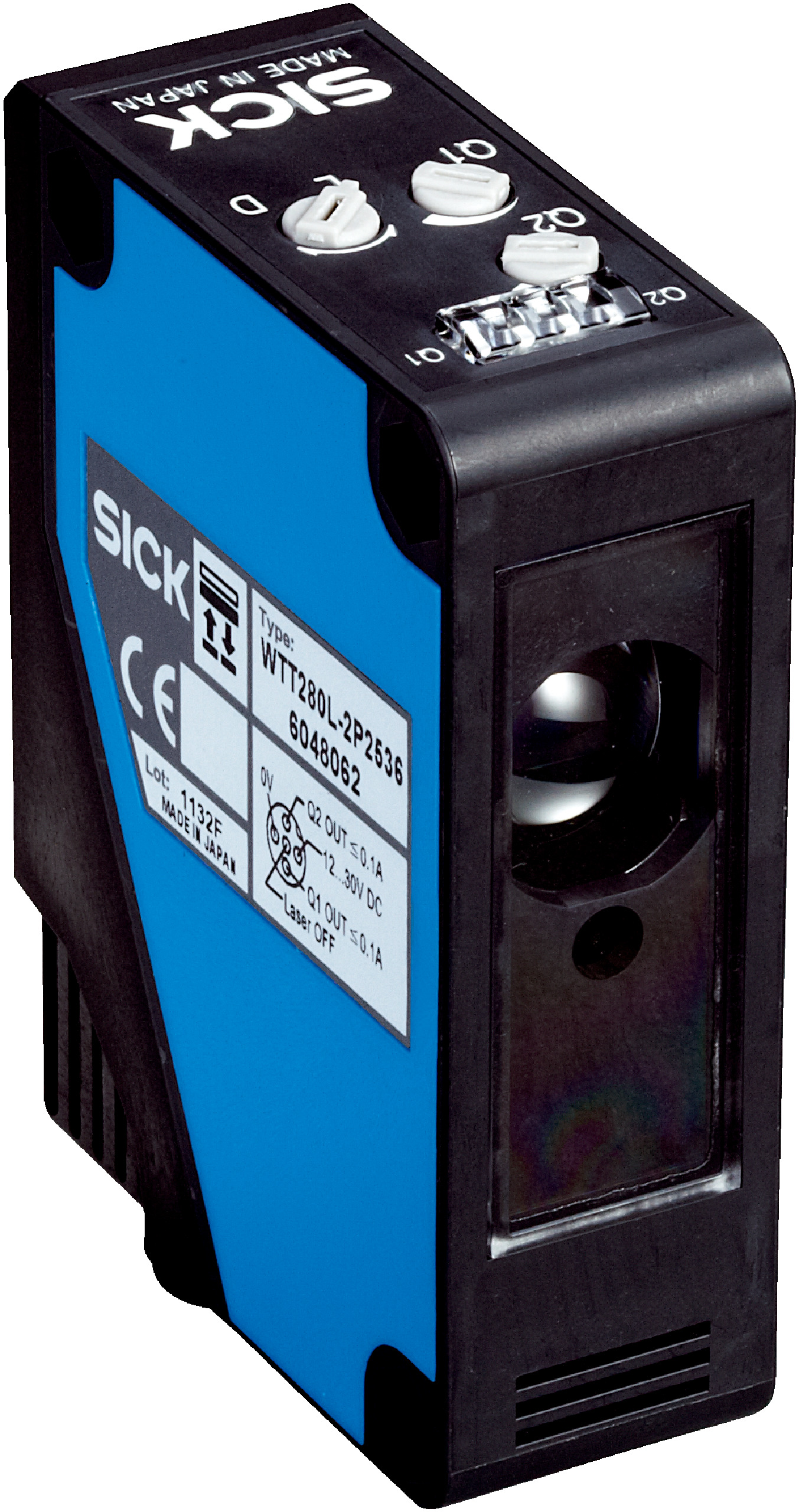

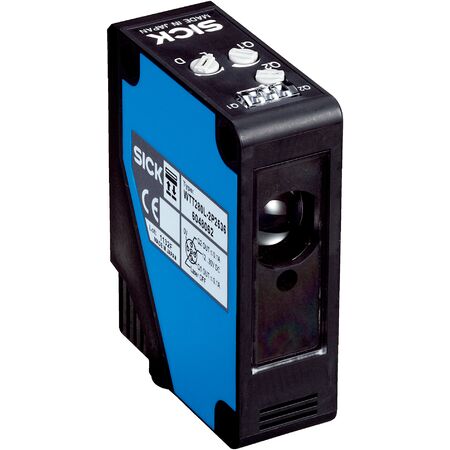

Photoelectric Proximity Sensor WLT280L-2P2536 | Background Suppression | 200mm to 18,000mm Sensing Range | IP67 Rated | by SICK
The WLT280L-2P2536 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range from 200 mm to 18,000 mm and background suppression technology, it ensures reliable performance in various applications. Featuring a robust IP67 rated enclosure and a visible red laser light source, this sensor is perfect for manufacturing processes and robotics, providing high switching frequency and quick response times.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 200 mm to 18,000 mm
- Light source: Visible red laser, Laser class 1
- Adjustment: Dual potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: PNP, 2 outputs
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Connection type: Male M12, 5-pin connector
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 76mm x 56mm x 24mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm up to 18,000 mm
- Laser class 1 compliant with EN 60825-1:2014 and IEC 60825-1:2014
- Dual potentiometer adjustment for fine tuning
- Includes mounting bracket BEF-W280 and reflector P250
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Supply voltage range 10 V DC to 30 V DC with low ripple
- PNP switching output with selectable light/dark switching mode
- Robust plastic ABS housing with PMMA optics
- Male M12 5-pin connector for easy integration
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing processes
- Background suppression sensing in robotics and conveyor systems
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient operation reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLT280L-2P2536 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
