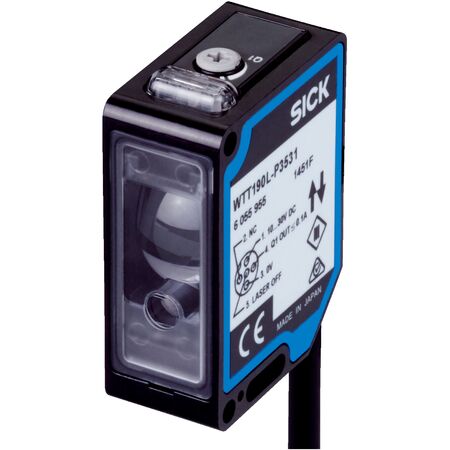

Photoelectric Proximity Sensor WTT190L-P3531 | Background Suppression | 200mm to 2500mm Sensing Range | IP67 Rated | by SICK
The WTT190L-P3531 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range from 200 mm to 2,500 mm and background suppression using optical time-of-flight technology. With a fast response time of ≤ 0.5 ms and an IP67 rated enclosure, this sensor is perfect for material handling, safety detection, and robotics applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 200 mm to 2,500 mm
- Light source: Visible red laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 75 mA
- Switching output: PNP, 1 output, max 100 mA
- Switching mode: Light/dark selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP67
- Warm-up time: < 5 minutes
- Initialization time: < 300 ms
- Connection: Cable with M12, 5-pin plug, 0.3 m length
- Housing material: Plastic ABS, Optics material: Plastic PMMA
- Dimensions (H x L x W): 47mm x 34mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression using optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm up to 2,500 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Adjustable potentiometer with 4 turns for sensitivity tuning
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Cable with M12, 5-pin plug connection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
- Robotics and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable ABS and PMMA plastic housing reduces material waste
- Long service life with MTTFD of 215 years enhances sustainability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTT190L-P3531 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
