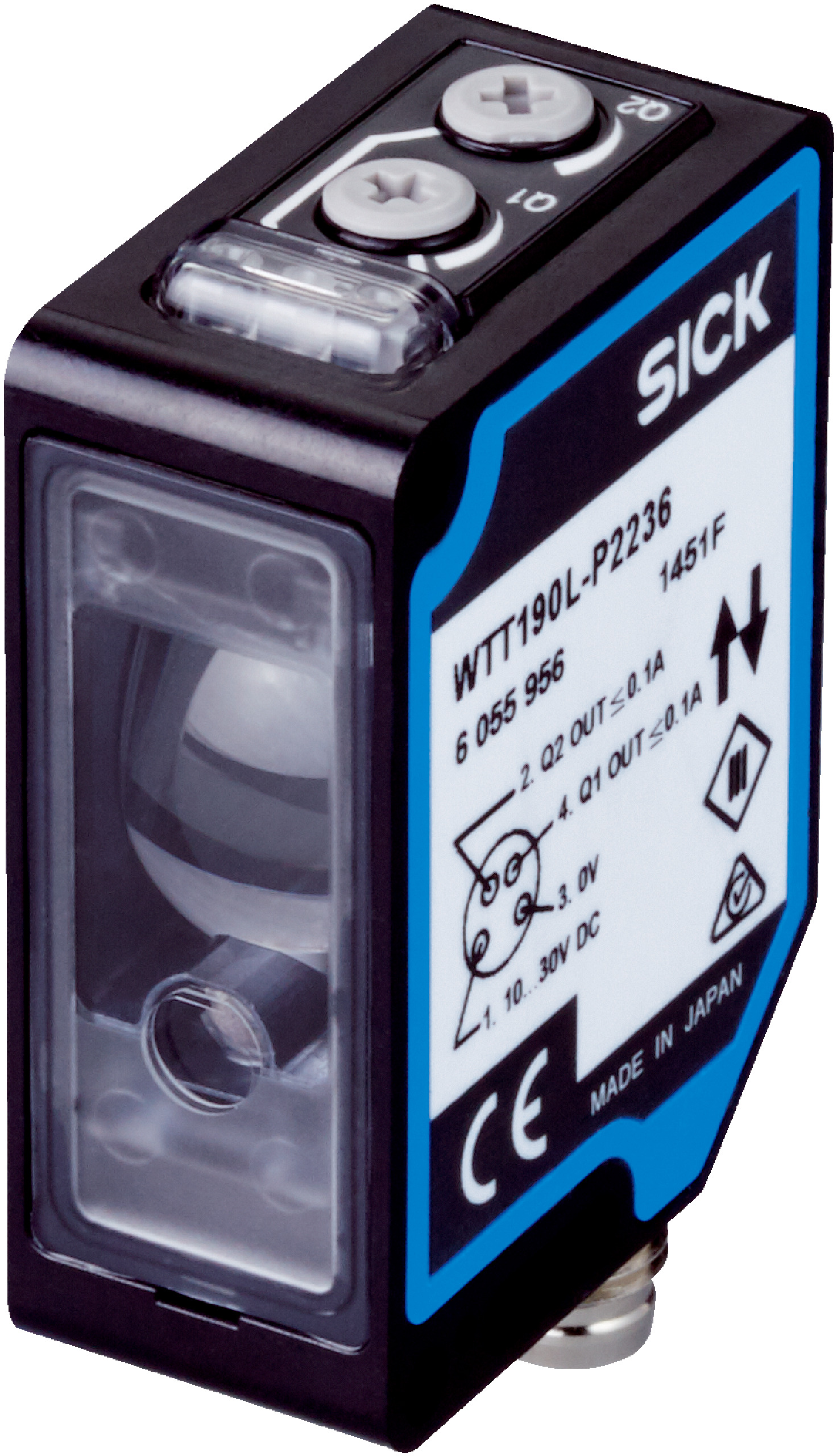

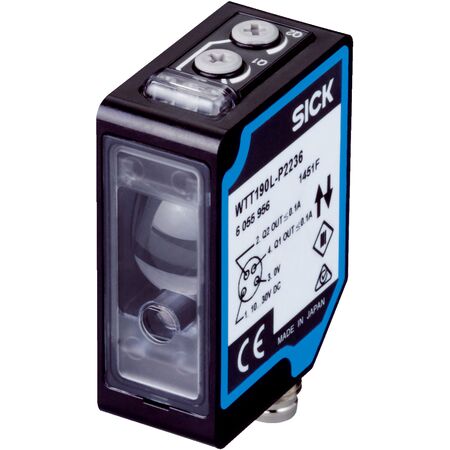

Photoelectric Proximity Sensor WTT190L-N2236 | Background Suppression | 200mm to 2500mm Sensing Range | IP67 Rated | by SICK
The WTT190L-N2236 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 200 mm to 2,500 mm and a fast response time of ≤ 0.5 ms, it’s perfect for material handling and safety detection in manufacturing. Its IP67 rated enclosure ensures durability in harsh environments, making it an ideal choice for robotics and process control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 200 mm to 2,500 mm
- Light source: Visible red laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Adjustment: Potentiometer, 4 turns (2x)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 75 mA
- Switching output: NPN, 2 outputs (Q1, Q2)
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Circuit protection: Types A, B, C
- Protection class: III
- Enclosure rating: IP67
- Warm-up time: < 5 minutes
- Initialization time: < 300 ms
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Connection type: Male connector M8, 4-pin
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 46.5mm x 34.1mm x 17.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm to 2,500 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Adjustable potentiometer with 4 turns for sensitivity tuning
- Dual NPN switching outputs with selectable light/dark switching mode
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -10 °C to +50 °C
- Supplied with BEF-W190 mounting bracket
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
- Robotics and process control
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT190L-N2236 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
