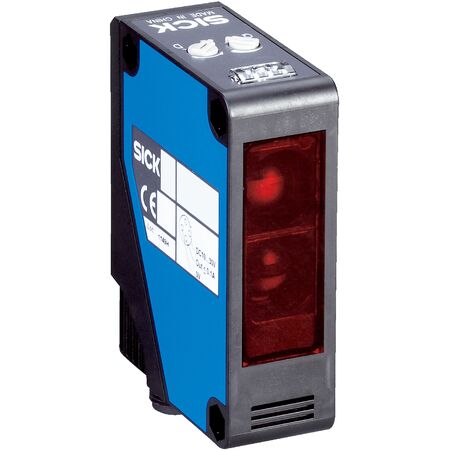

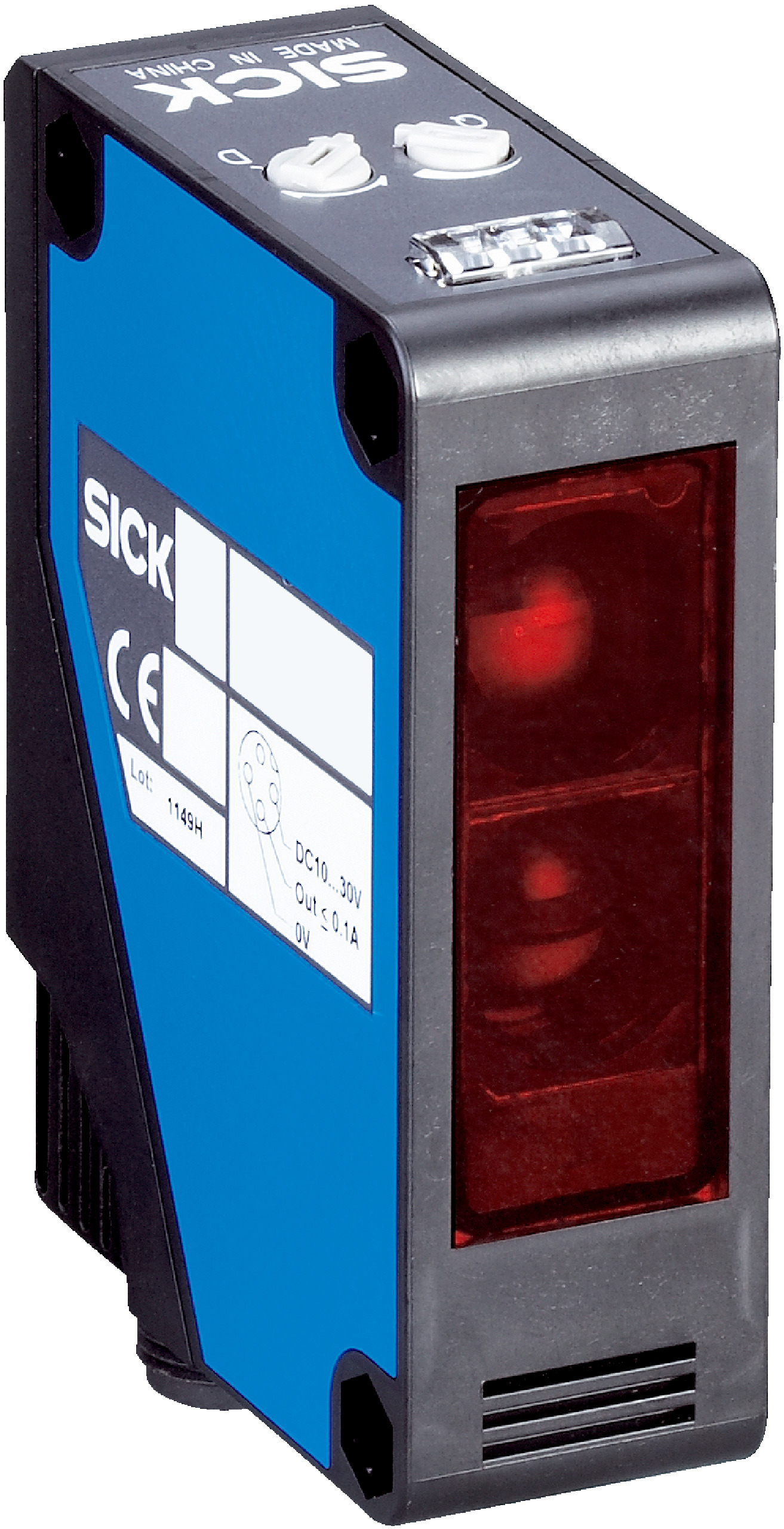

Photoelectric Proximity Sensor WTT280L-2P2536 | Background Suppression | 200mm to 4000mm Sensing Range | IP67 Rated | by SICK
The WTT280L-2P2536 Photoelectric Proximity Sensor is designed for precision in industrial automation, featuring background suppression and optical time-of-flight technology. With a versatile sensing range from 200 mm to 4000 mm, it’s perfect for detecting small objects in material handling and robotics applications. Its robust IP67 rated enclosure ensures durability in challenging environments, making it an ideal choice for manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 200 mm to 4000 mm depending on configuration
- Light source: Visible red laser, Laser class 1
- Adjustment: Dual potentiometer
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: PNP, 2 outputs (Q1, Q2)
- Switching mode: Light/dark selectable via rotary switch
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Connection type: Male M12, 5-pin connector
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- EMC compliance: EN 60947-5-2
- Dimensions (H x L x W): 76mm x 55.8mm x 23.5mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm up to 4000 mm depending on configuration
- Laser class 1 compliant with EN 60825-1:2014 and IEC 60825-1:2014
- Dual potentiometer adjustment for fine tuning
- Includes mounting bracket BEF-W280
- High switching frequency of 1000 Hz and response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Supply voltage range 10 V DC to 30 V DC with low ripple
- PNP switching output with selectable light/dark switching mode
- Maximum output current ≤ 100 mA
- Robust plastic ABS housing with PMMA optics
- Male M12 5-pin connector for easy integration
- Wide ambient operating temperature range from -10 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Industrial automation for detecting small objects
- Material handling and packaging systems
- Robotics and manufacturing process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation reduces power consumption in industrial systems
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT280L-2P2536 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
