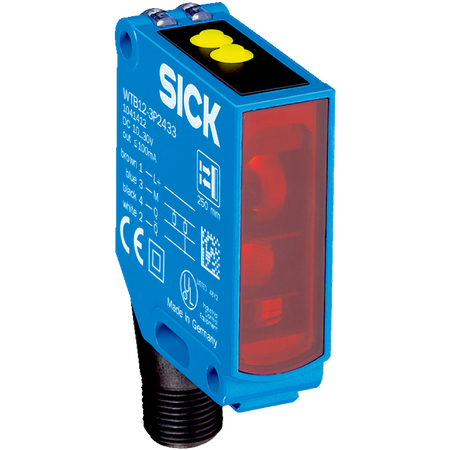

Photoelectric Proximity Sensor WTB12-3P2433 | Background Suppression | 20 mm to 350 mm Sensing Range | IP66 & IP67 Rated | by SICK
The WTB12-3P2433 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 20 mm to 350 mm and a robust metal housing, it ensures reliable performance in challenging environments. Featuring a visible red LED light source and high switching frequency of 1,500 Hz, this sensor is perfect for manufacturing process control and safety monitoring in machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, SICK Proximity Sensor, WTB12 Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 20 mm to 350 mm
- Light source: LED, visible red light at 640 nm wavelength
- Light spot size: Ø 6 mm at 200 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 45 mA
- Output type: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 330 µs
- Switching frequency: 1,500 Hz
- Protection class: III
- Housing material: Metal with plastic PMMA front screen
- Connection: Male connector M12, 4-pin
- Enclosure rating: IP66, IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 49mm x 42mm x 16mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 20 mm to 350 mm
- Visible red LED light source with 640 nm wavelength
- Double teach-in button for easy adjustment
- High switching frequency of 1,500 Hz
- Robust metal housing with IP66 and IP67 protection ratings
- Operating temperature range from -40 °C to +60 °C
- Male connector M12, 4-pin connection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Long operational lifetime minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB12-3P2433 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
